Rear Speed Sensor (4WD): Components

Fig 1: Identifying Rear Speed Sensor Replacement Components - 4WD (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Rear Speed Sensor Replacement Components - 4WD (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Rear Speed Sensor Replacement Components - 4WD (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Rear Speed Sensor Replacement Components - 4WD With Torque Specifications (4 Of 6)

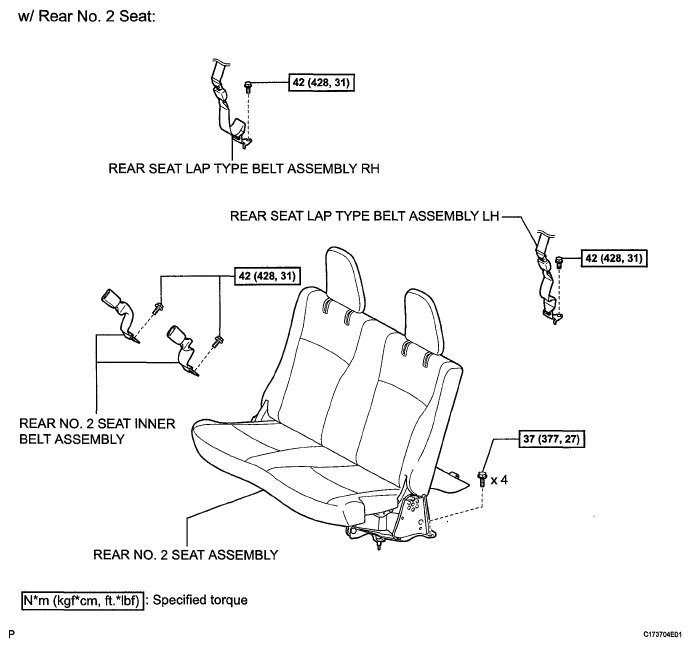

Fig 5: Identifying Rear Speed Sensor Replacement Components - 4WD With Torque Specifications (5 Of 6)

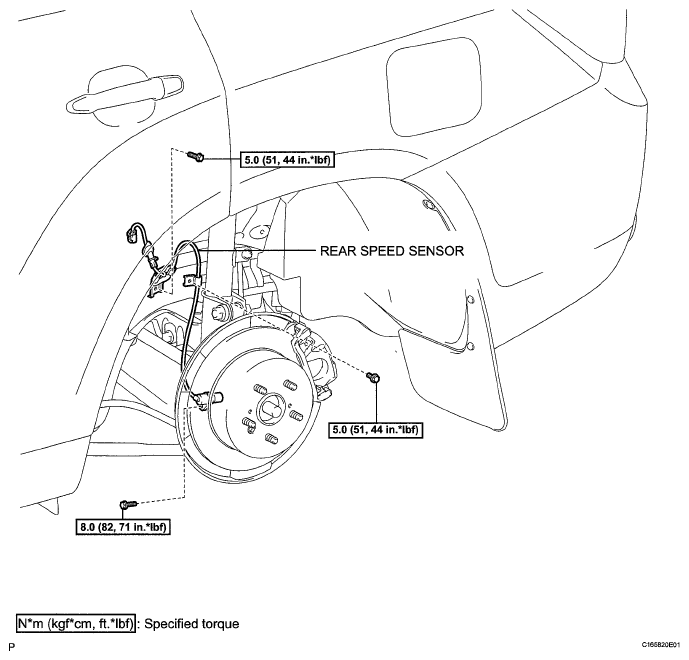

Fig 6: Identifying Rear Speed Sensor Replacement Components - 4WD With Torque Specifications (6 Of 6)
