Front Speed Sensor: Components

Fig 1: Identifying Front Speed Sensor Replacement Components (1 Of 2)
G05417819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

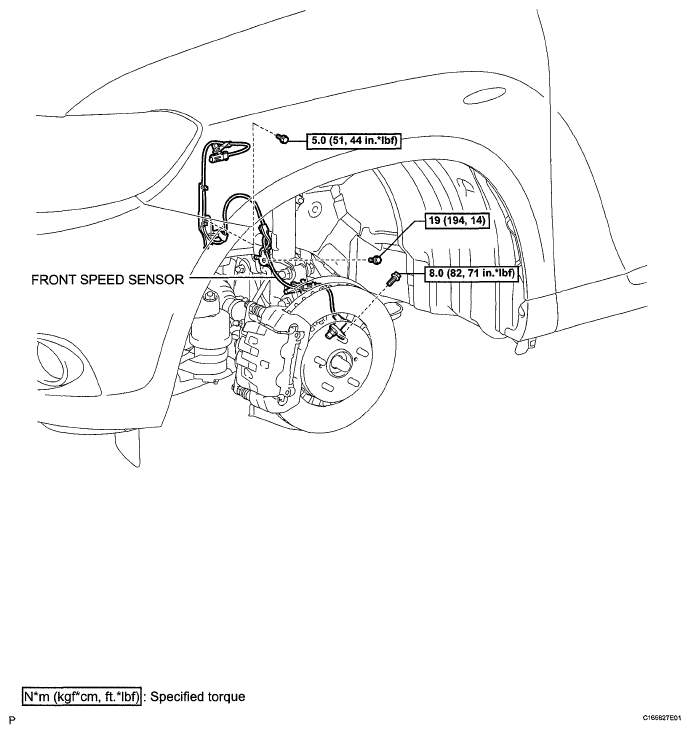

Fig 2: Identifying Front Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
G05417820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
