Brake Actuator: Components

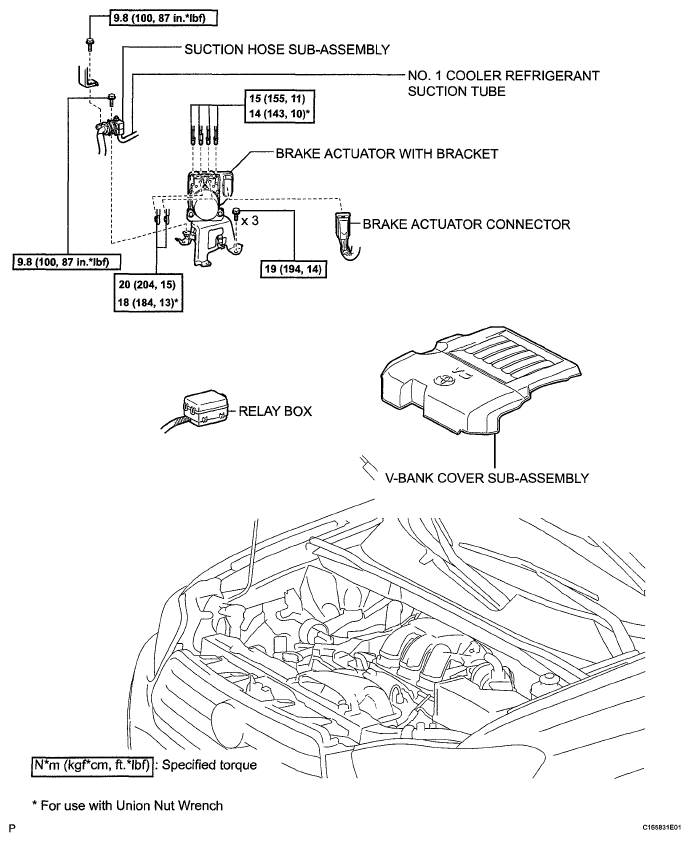

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (1 Of 2)
G05417799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

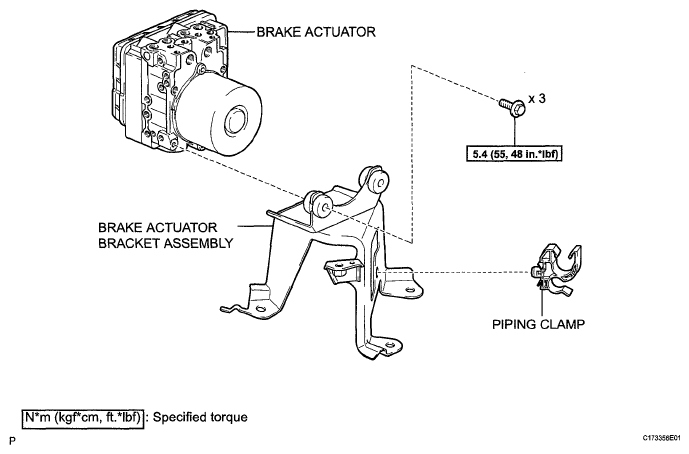

Fig 2: Identifying Brake Actuator Replacement Components With Torque Specification (2 Of 2)
G05417800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
