System Diagram

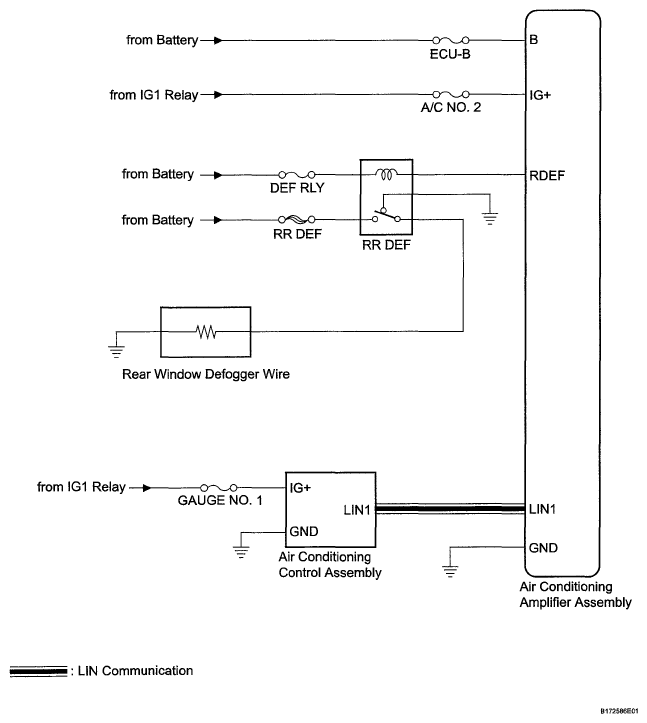

Fig 1: Identifying Window Defogger System Diagram

G05421223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
