Rear Window Defogger System Does Not Operate: Wiring Diagram

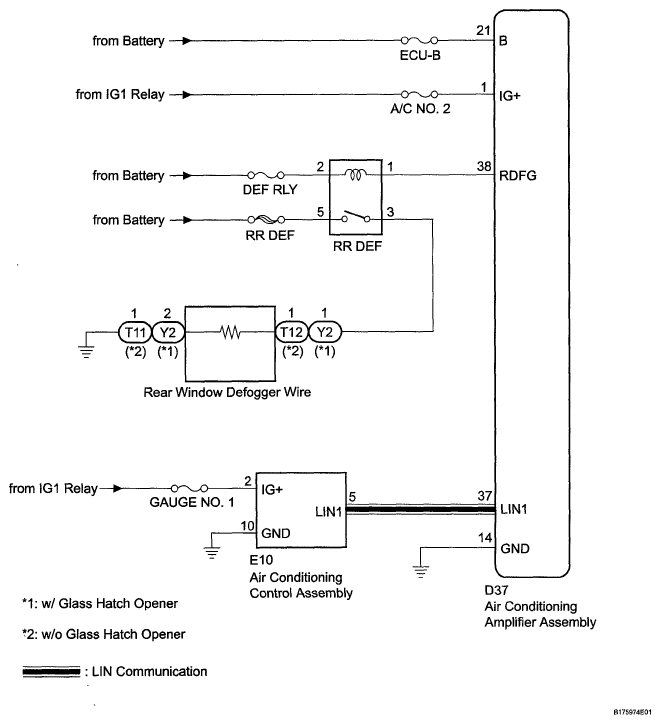

Fig 1: Identifying Rear Window Defogger System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
