Remote Up/Down Function Does Not Operate: Wiring Diagram

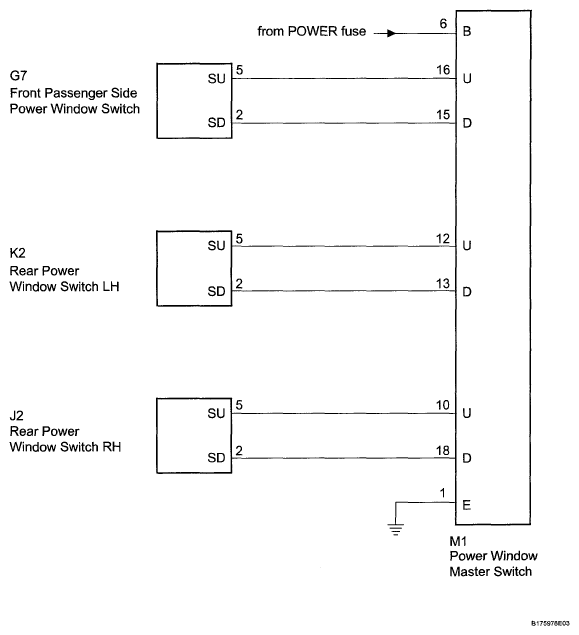

Fig 1: Identifying Power Window Switch Wiring Diagram

G05421115

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
