Back Window Lock: Components

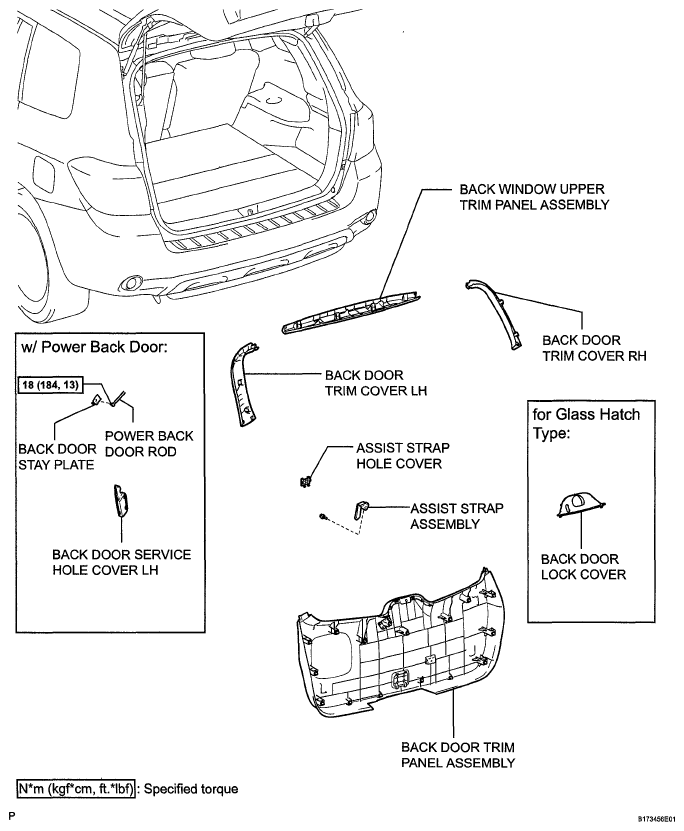

Fig 1: Identifying Back Window Lock Replacement Components With Torque Specification (1 Of 3)
G05419842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

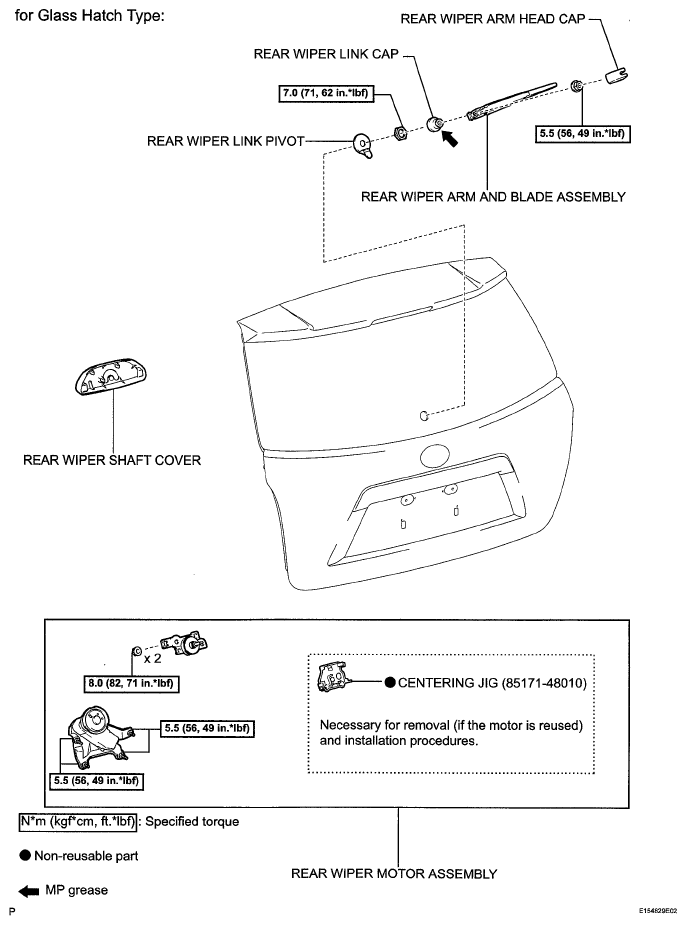

Fig 2: Identifying Back Window Lock Replacement Components With Torque Specification (2 Of 3)
G05419844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Back Window Lock Replacement Components With Torque Specification (3 Of 3)
G05421289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
