Stop Light Switch: Installation: Installation

WARNING: This page is about a different car, the 2010 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER
1. Install the stop light switch mounting adjuster to the pedal support.
INSTALL STOP LIGHT SWITCH ASSEMBLY
1. Install the stop light switch to the adjuster until it slightly touches the brake pedal.

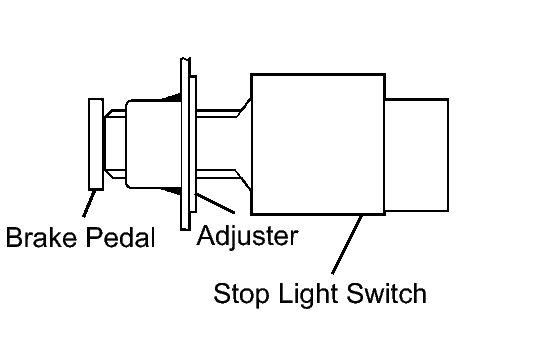

  Fig 1: Identifying Brake Pedal And Adjuster
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not depress the brake pedal.
2. Turn the stop light switch clockwise to install it.

  Fig 2: Turning Stop Light Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not depress the brake pedal.

  Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

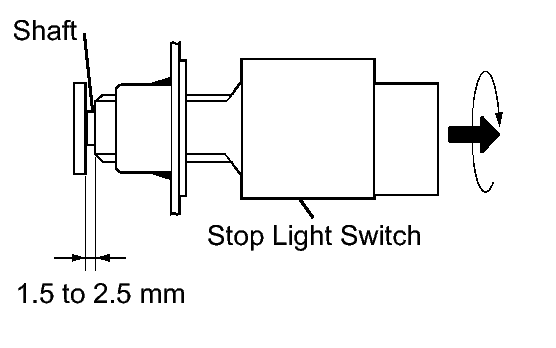

3. Check the stop light switch clearance.
  Stop light switch clearance

  1.5 to 2.5 mm (0.0590 to 0.0984 in.)
4. Connect the connector to the stop light switch.
