Home >> Toyota >> 2008 >> Corolla LE, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Trans - C59 >> Transmission Control Cable >> Components

Transmission Control Cable: Components

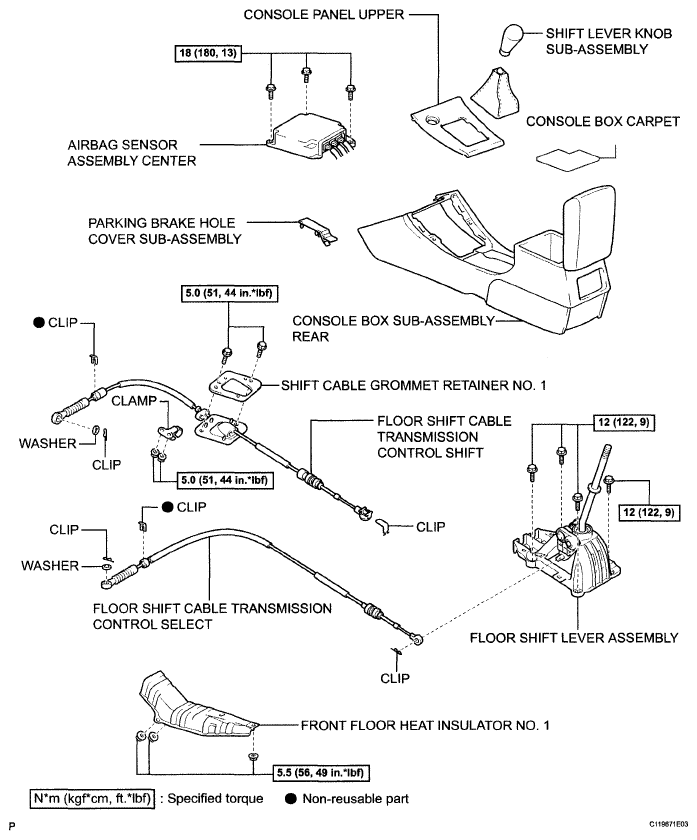

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications

G05194226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
