Inspection Procedure

HINT:

After the inspection is completed, clear the DTCs.

1. CHECK HARNESS AND CONNECTOR (RADIO AND NAVIGATION ASSEMBLY TELEVISION CAMERA ASSEMBLY)
   1. Disconnect the R10 connector from the radio and navigation assembly.
   2. Disconnect the T10 connector from the television camera assembly.

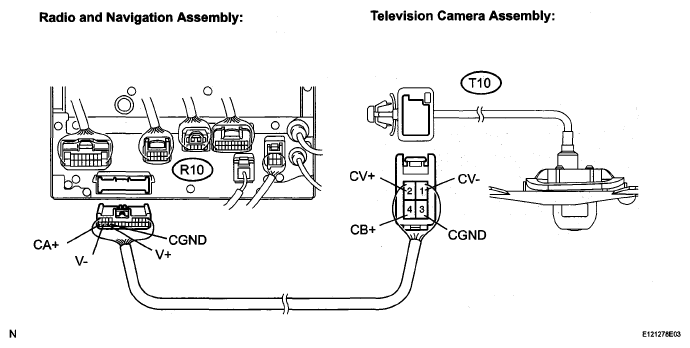

      Fig 1: Checking Radio And Navigation Television Camera Assembly Harness And Connectors

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
   3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connection (Terminal No.)	Condition	Specified Condition
      CB+ (T10-4) - CA+ (R10-24)	Always	Below 1 Ω
      CGND (T10-3) - CGND (R10-21)	Always	Below 1 Ω
      CV+ (T10-2) - V+ (R10-22)	Always	Below 1 Ω
      CV- (T10-1) - V-(R10-23)	Always	Below 1 Ω
      CV- (T10-1) - Body ground	Always	10 kΩ or higher
      CV+ (T10-2) - Body ground	Always	10 kΩ or higher
      CGND (T10-3) - Body ground	Always	10 kΩ or higher
      CB+ (T10-4) - Body ground	Always	10 kΩ or higher

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: Go to Next Step

2. INSPECT RADIO AND NAVIGATION ASSEMBLY

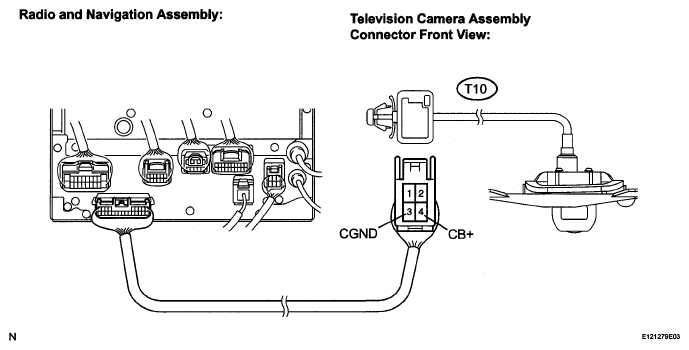

   1. Reconnect the radio and navigation assembly connector.
      Fig 2: Connecting Radio And Navigation Assembly Connector

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
   2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connection (Terminal No.)	Condition	Specified Condition
      CB+ (T10-4) - CGND (T10-3)	IG SW ON, shift lever R position	Approx. 6 V

   NG: REPLACE RADIO AND NAVIGATION ASSEMBLY

   OK: Go to Next Step

3. INSPECT TELEVISION CAMERA ASSEMBLY
   1. Reconnect the radio and navigation assembly R10 connector and the television camera assembly T10 connector.

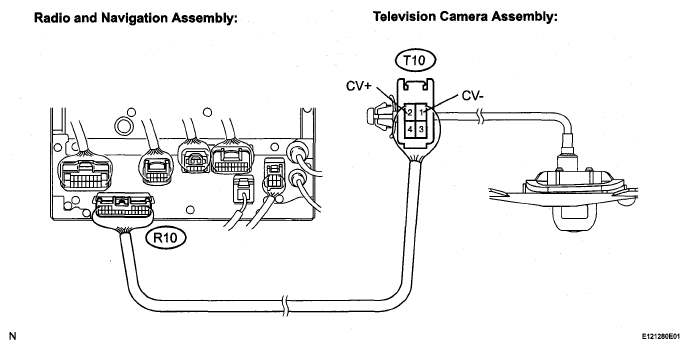

      Fig 3: Connecting Radio And Navigation R10 Connector And Television Camera Assembly T10 Connector

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
   2. Check the waveform of the television camera assembly using an oscilloscope.
      1. Measurement terminal: CV+ - CV-

         Measurement setting: 0.2 V/DIV, 0.2 μ/DIV

         Condition: Ignition switch ON, Shift lever in R range

         OK: Pulses as shown in the illustration.

   Fig 4: Television Camera Assembly Waveform Oscilloscope Pulse
   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NG: REPLACE TELEVISION CAMERA ASSEMBLY

   OK: REPLACE RADIO AND NAVIGATION ASSEMBLY
