Home >> Toyota >> 2007 >> Sienna CE >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Navigation System >> Navigation Antenna >> Components

Navigation Antenna: Components

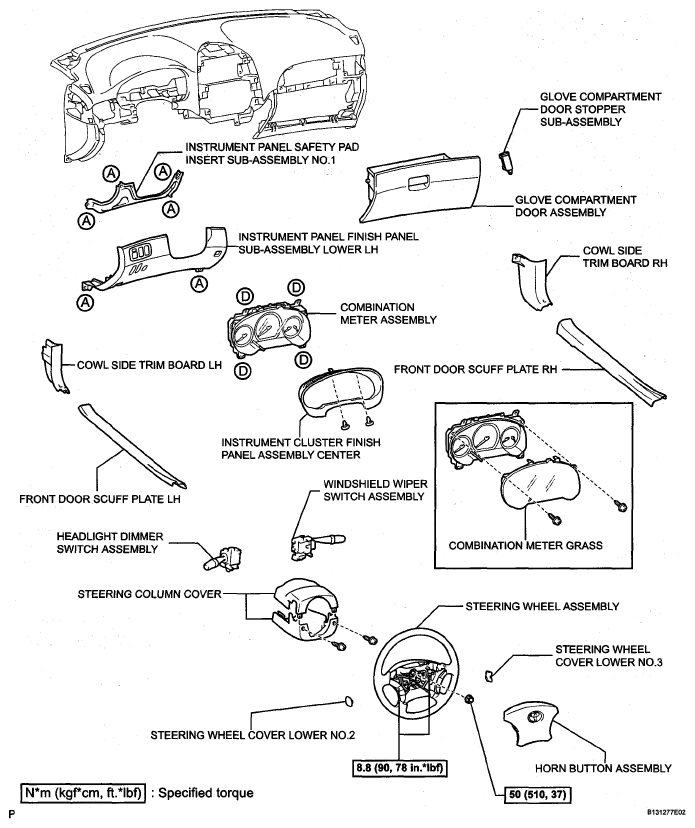

Fig 1: Exploded View Of Navigation Antenna Components With Torque Specifications (1 Of 2)
G05141463Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

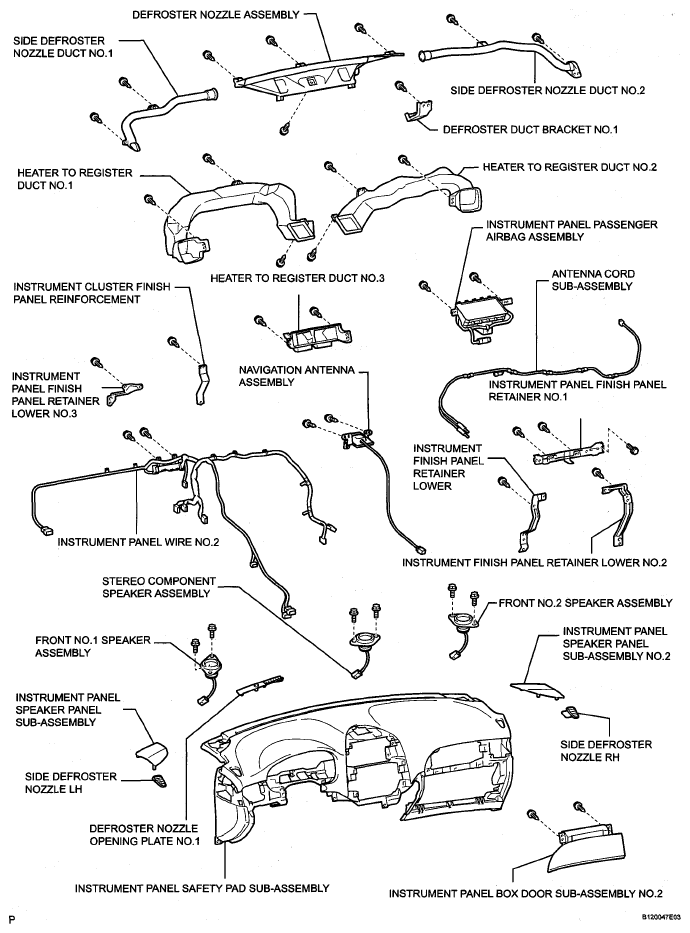

Fig 2: Exploded View Of Navigation Antenna Components (2 Of 2)
G05141464Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
