Oil Pump: Replacement

REPLACE OIL PUMP SEAL
HINT:

There are 2 ways to remove the oil seal: remove it with the oil pump removed from the cylinder block, and remove it with the oil pump installed to the cylinder block.
1. If the oil pump is removed from the cylinder block:

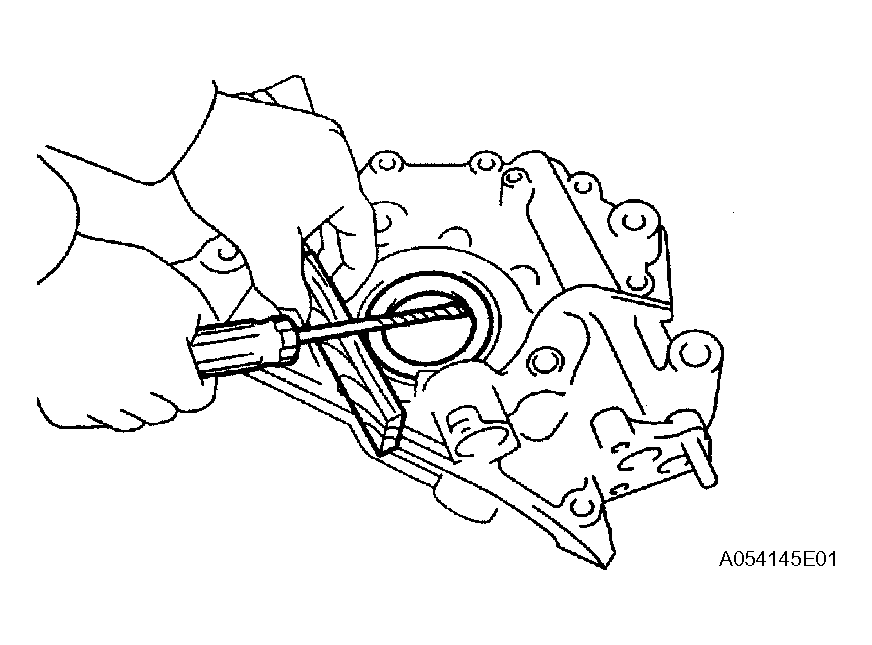

  1. Using a screwdriver, pry out the seal.

    Fig 1: Prying Out Seal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

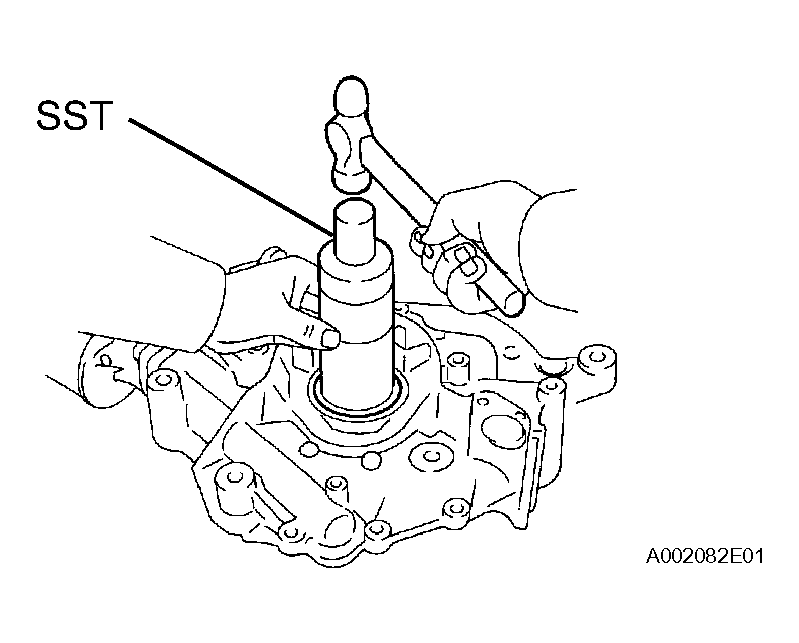

  2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the edge of the oil pump body edge.
    SST 09316-60011 (09316-00011)
  3. Apply MP grease to the oil seal lip.

    Fig 2: Installing New Oil Seal Using SST & A Hammer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. If the oil pump is installed to the cylinder block:

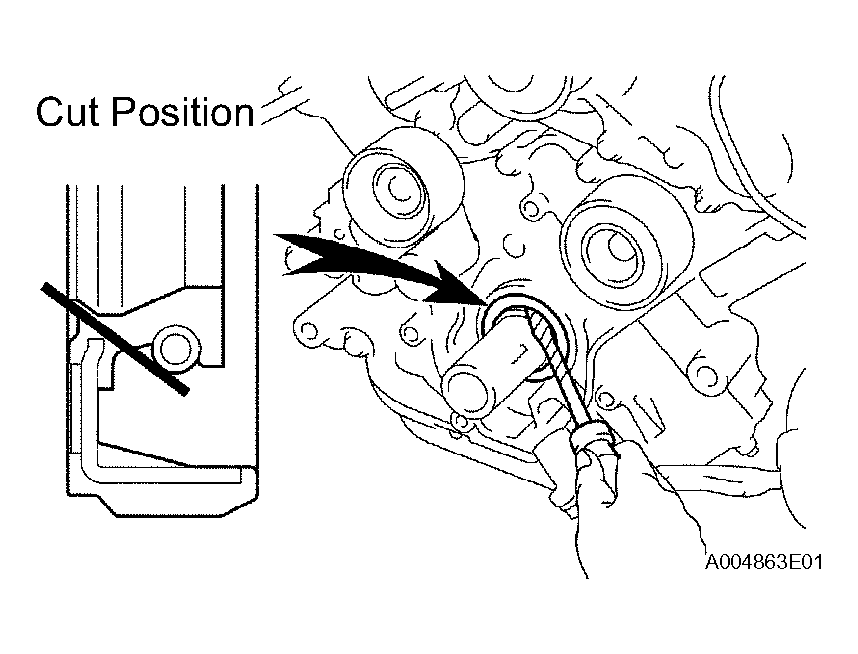

  1. Using a knife, cut off the lip of the oil seal.
  2. Using a screwdriver, pry out the oil seal.
    NOTE: Be careful not to damage the crankshaft. Tape the screwdriver tip.
  3. Apply MP grease to a new oil seal lip.

    Fig 3: Prying Out Oil Seal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

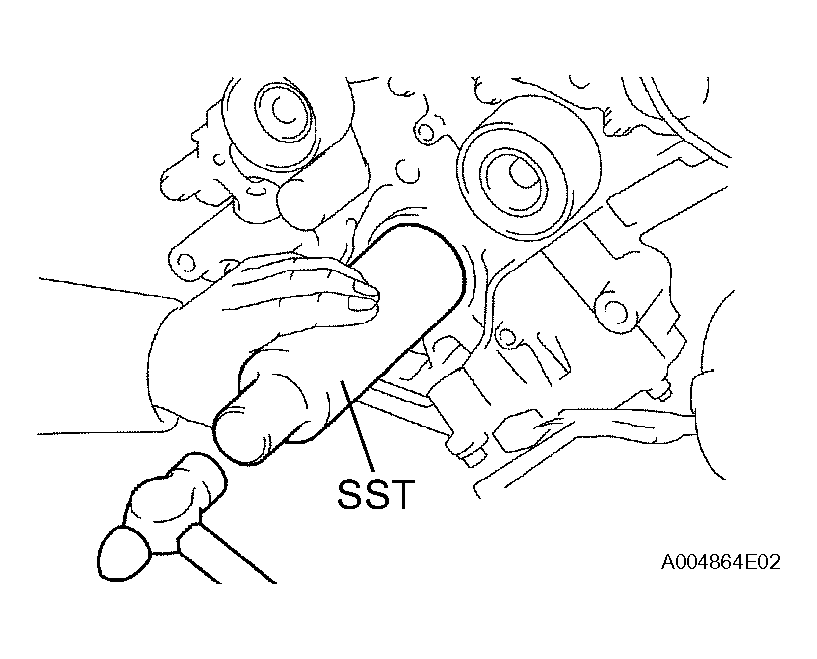

  4. Using SST and a hammer, tap in the oil seal until its surface is flush with the edge of the oil pump body edge.
    SST 09316-60011 (09316-00011)

    Fig 4: Installing Oil Seal Using SST & A Hammer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
