Emission Control System: Canister: Components

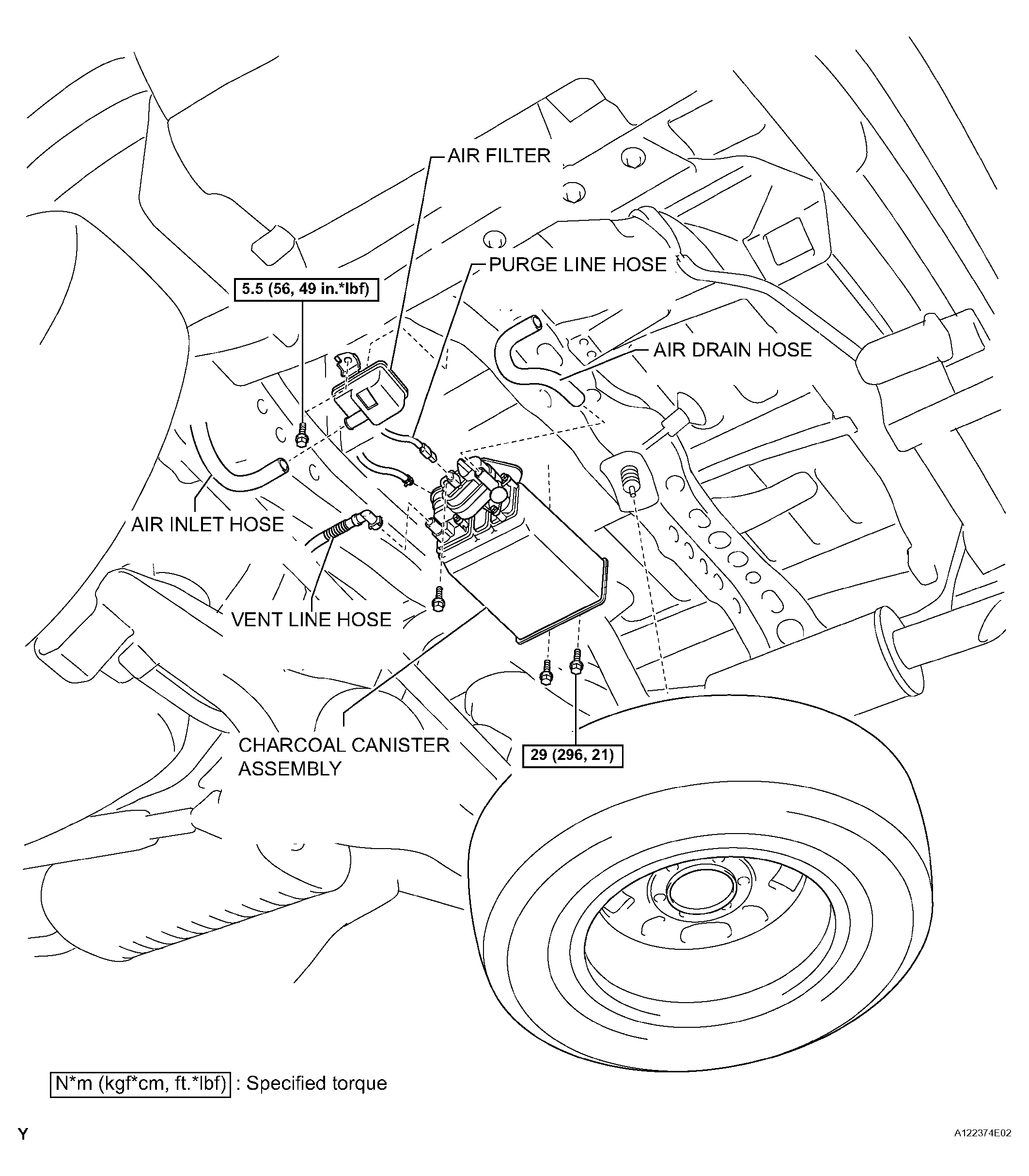

Fig 1: Identifying Canister Components With Specified Torque

G04507541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
