System Diagram

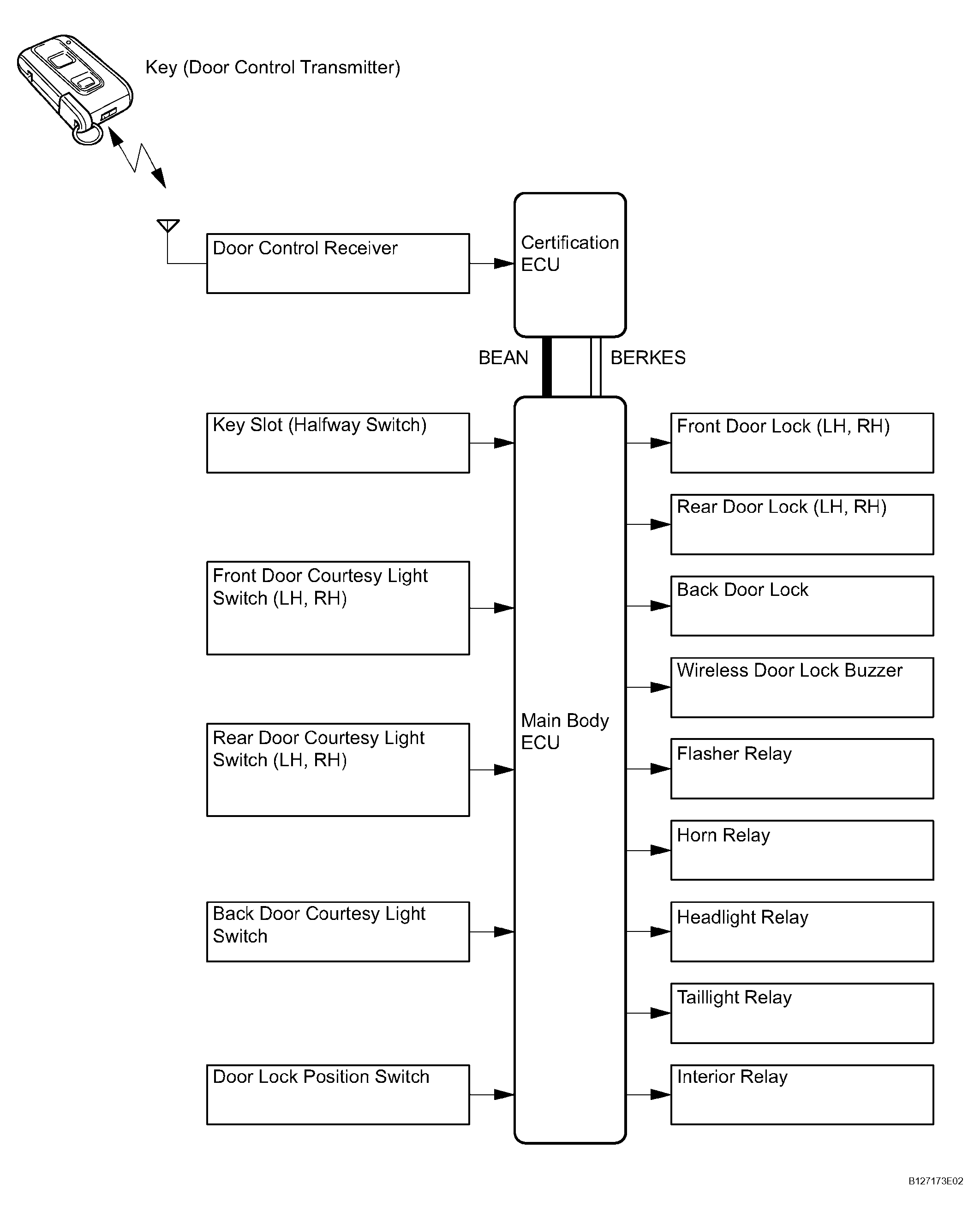

Fig 1: Power Door Lock Control Diagram

G04476027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
