Front Passenger Side Door Entry Unlock Function does not Operate: Wiring Diagram

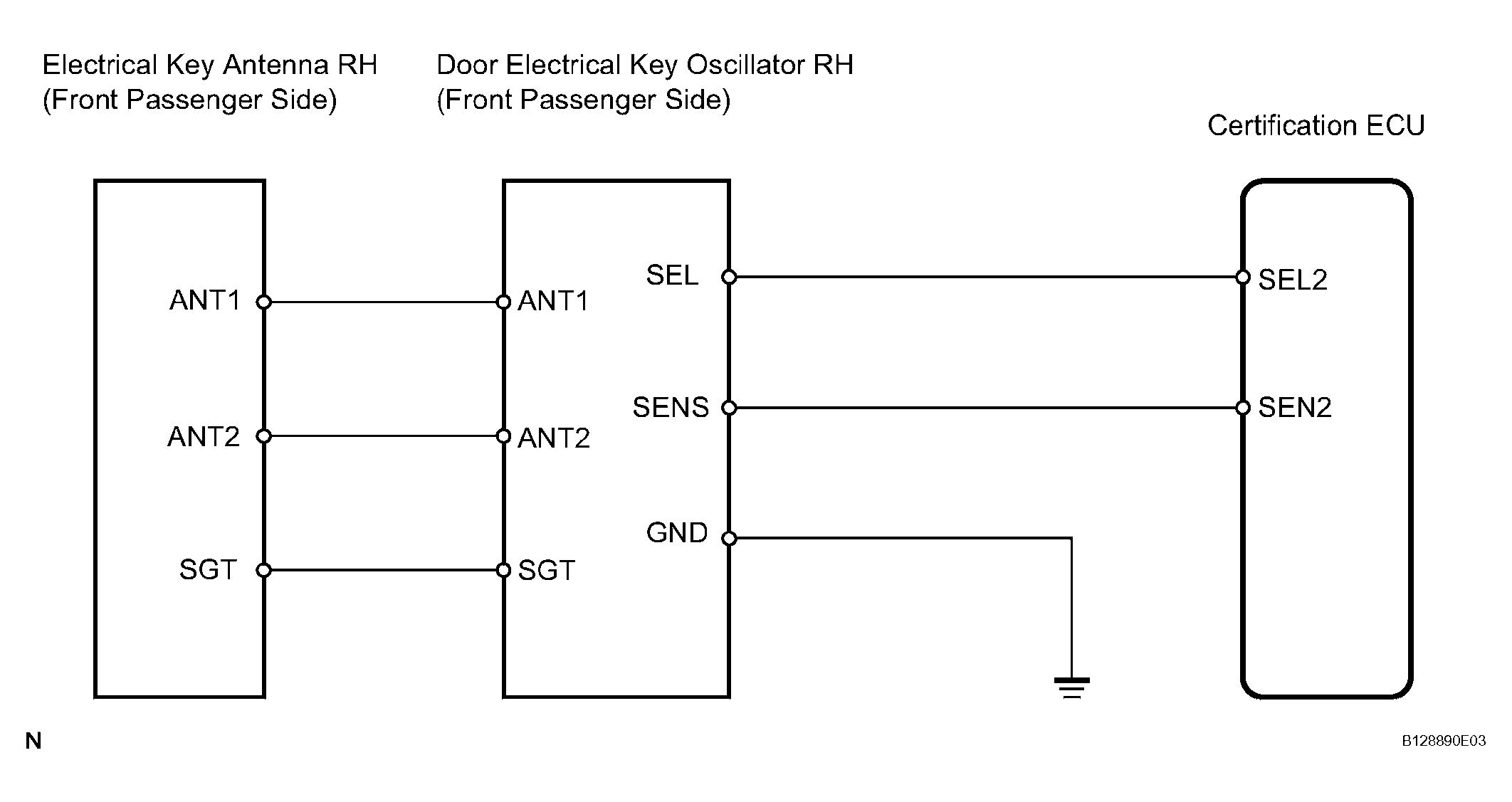

Fig 1: Door Electrical Key Oscillator - Wiring Diagram

G04476102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
