Entry Functions do not Operate at All: Wiring Diagram

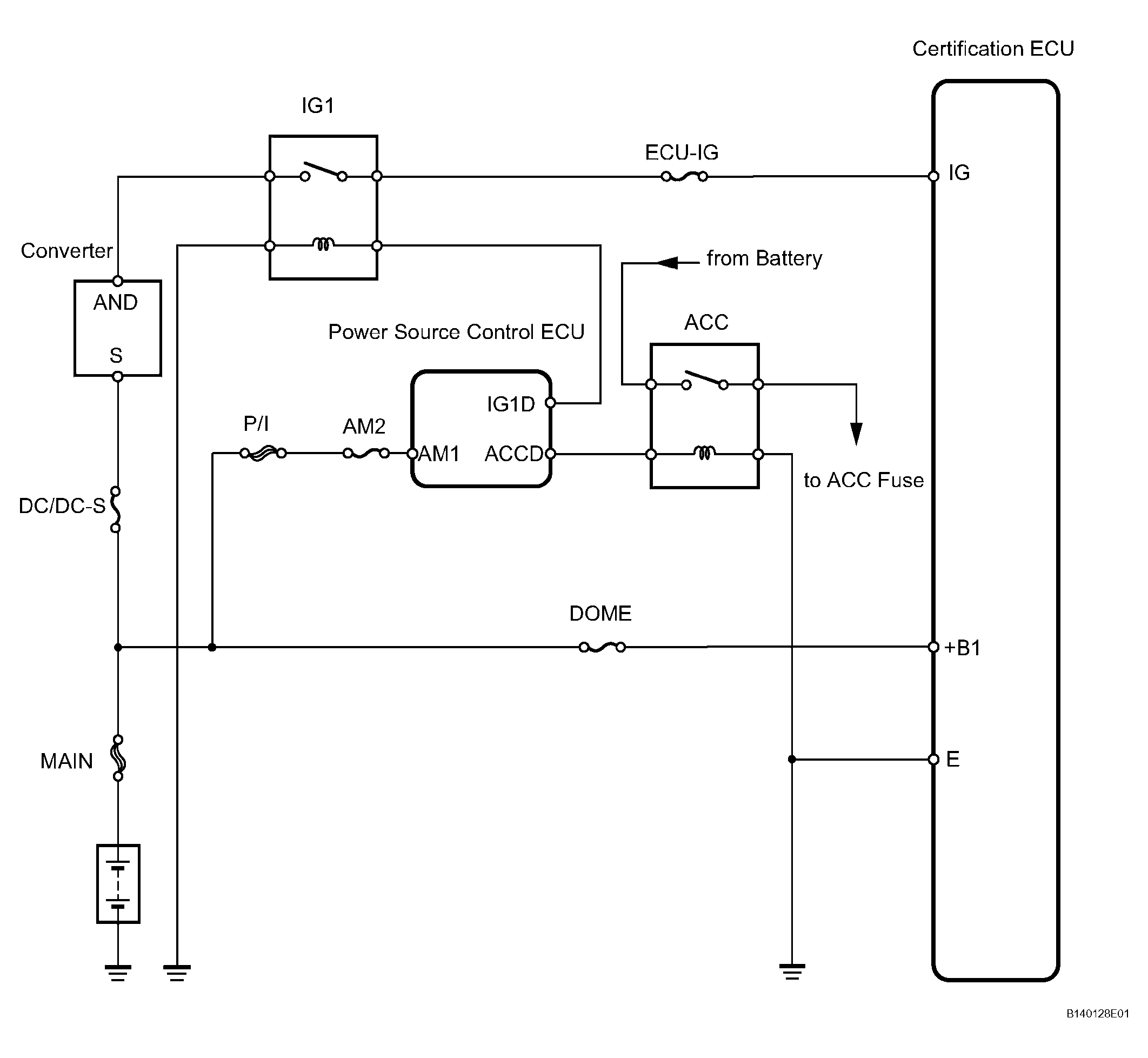

Fig 1: Certification ECU - Wiring Diagram

G04476124

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
