Starting System (1ZZ-FE): Starter: Components

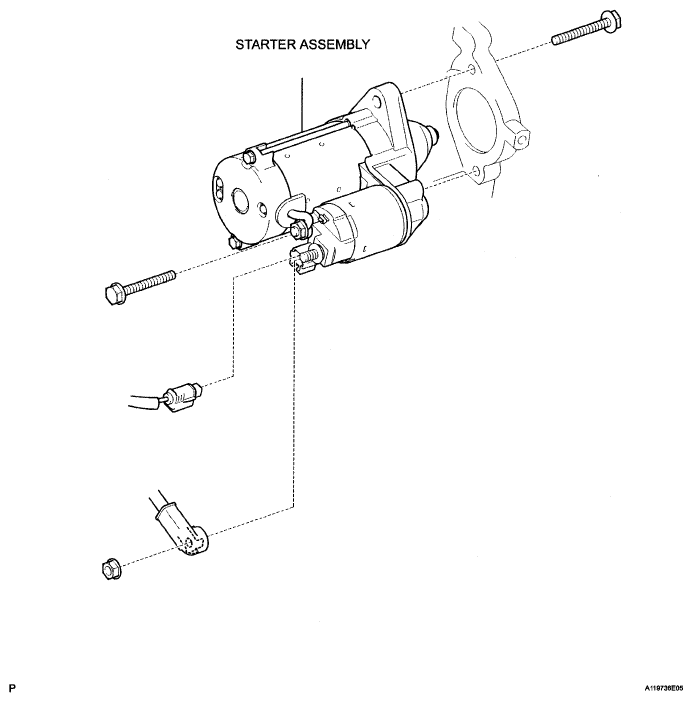

Fig 1: Identifying Starter Components
G05233670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

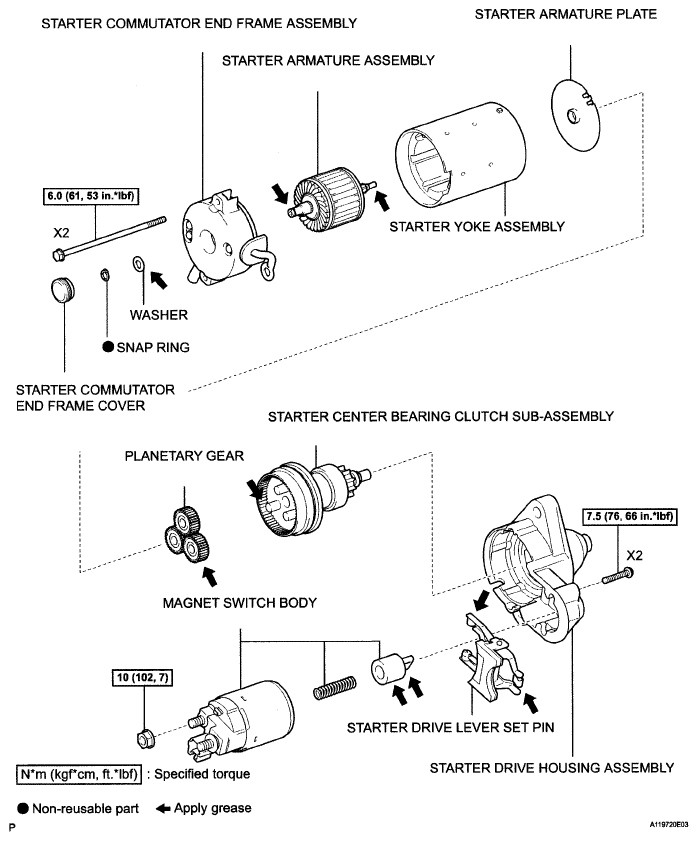

Fig 2: Starter Replacement Components With Torque Specifications
G05233671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
