On-Vehicle Inspection

INSPECT REAR QUARTER WINDOW MOTOR LH
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the window link moves to OPEN position.

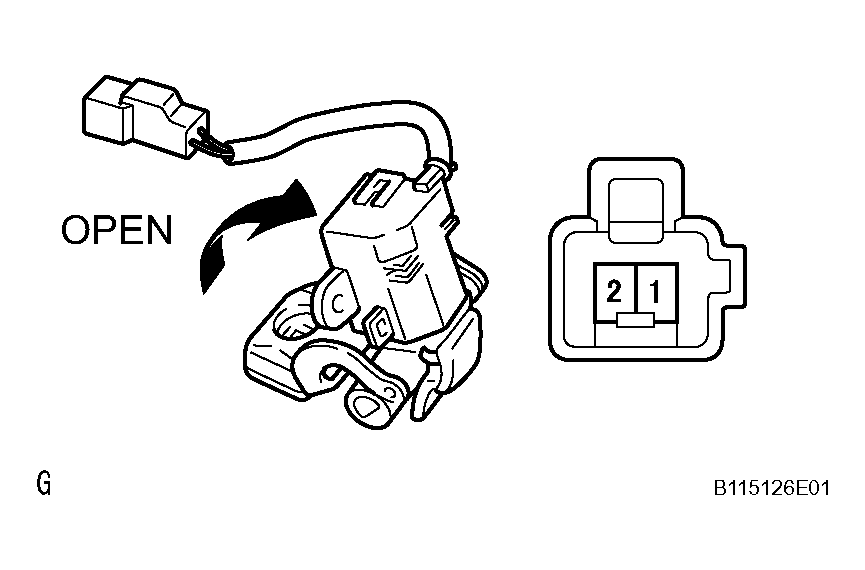

  Fig 1: Inspecting Rear Quarter Window Motor LH (Open Position)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the window link moves to CLOSE position.
  If operation is not as specified, replace the window motor.

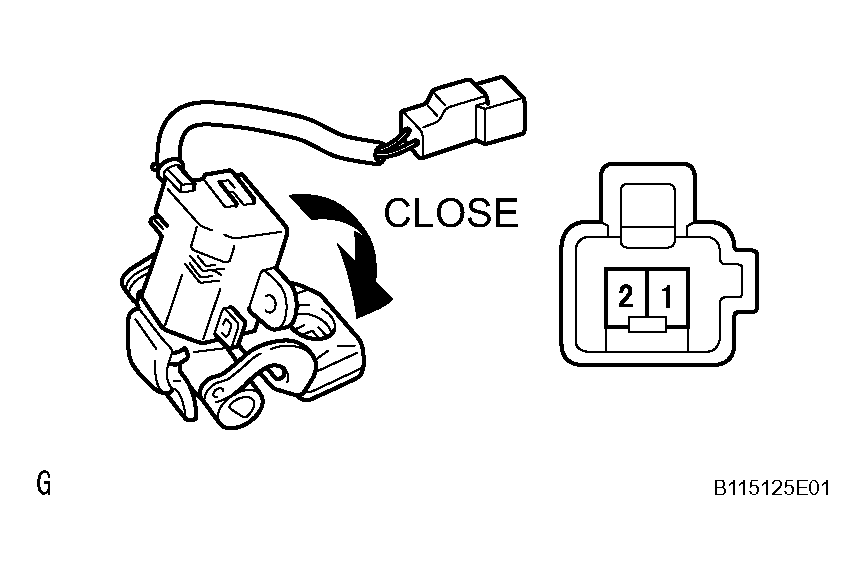

  Fig 2: Inspecting Rear Quarter Window Motor LH (Close Position)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REAR QUARTER WINDOW MOTOR RH
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the window link moves to OPEN position.

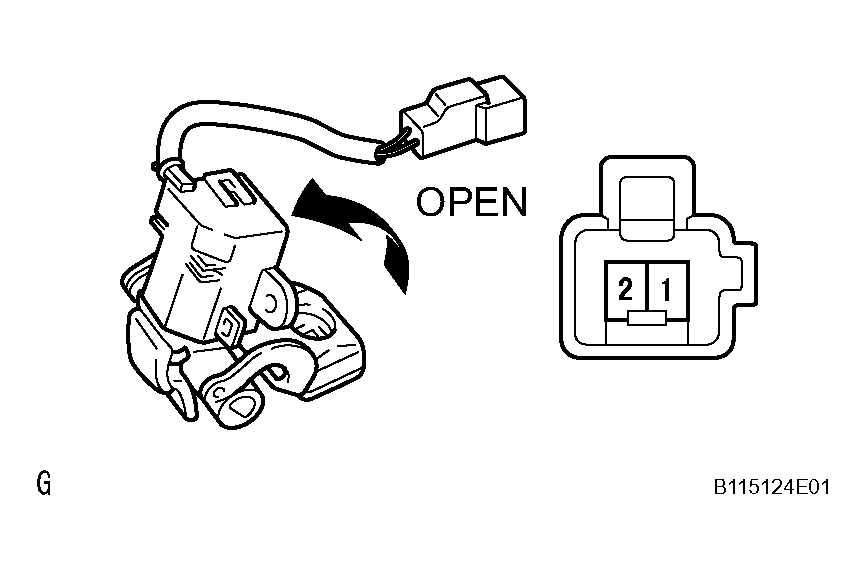

  Fig 3: Inspecting Rear Quarter Window Motor RH (Open Position)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity and check that the window link moves to CLOSE position.
  If operation is not as specified, replace the window motor.

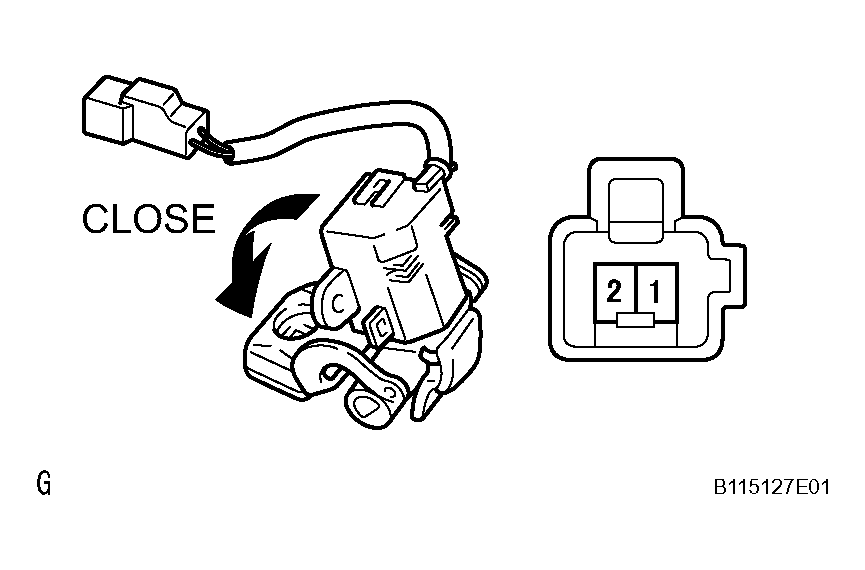

  Fig 4: Inspecting Rear Quarter Window Motor RH (Close Position)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
