Fuel Pump Control Circuit: Wiring Diagram

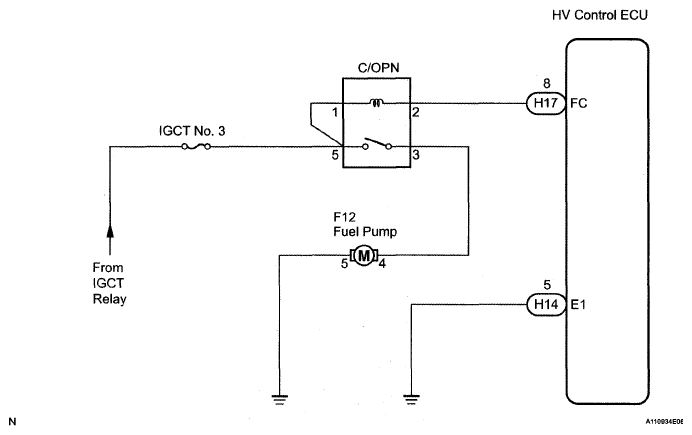

Fig 1: Fuel Pump - Wiring Diagram

G05200210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
