Yaw Rate And Acceleration Sensor: Components

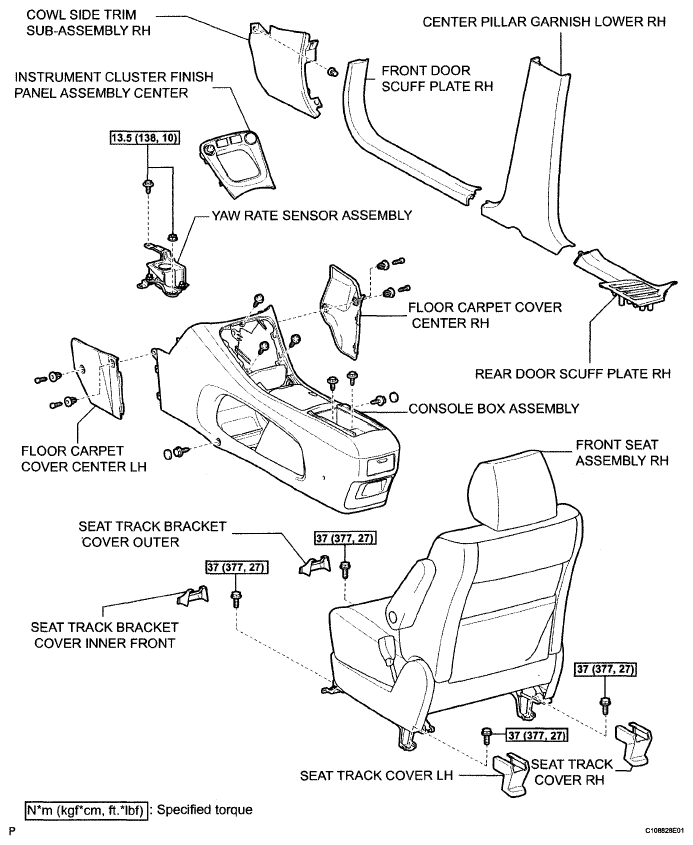

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications

G05202833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
