Home >> Toyota >> 2007 >> Highlander Hybrid, AWD >> Repair and Diagnosis >> Brakes >> Brakes Control Systems >> Brake Control System - Hybrid >> Steering Angle Sensor >> Components

Steering Angle Sensor: Components

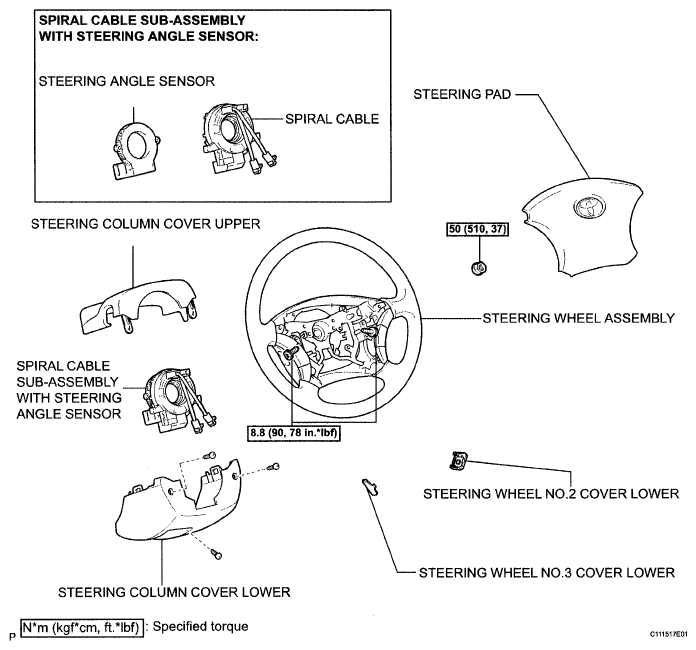

Fig 1: Identifying Steering Angle Sensor Replacement Components With Torque Specifications
G05202836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
