Skid Control Ecu: Components

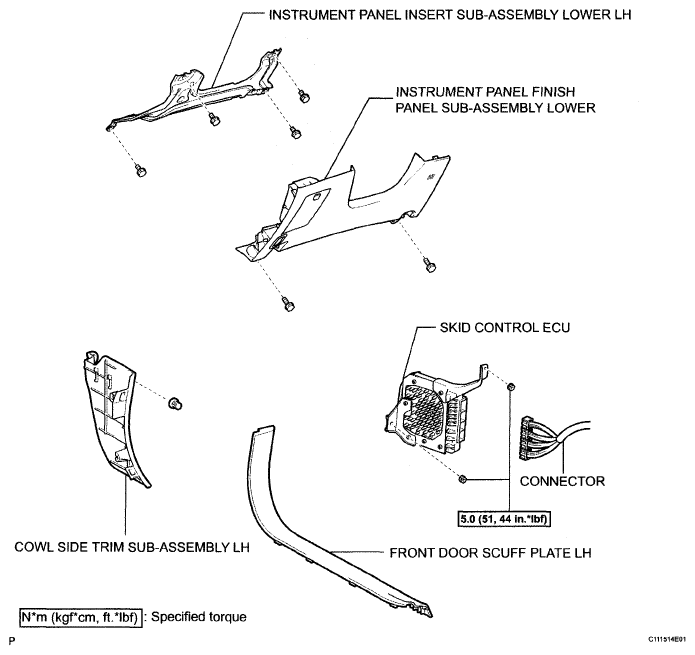

Fig 1: Identifying Skid Control ECU Replacement Components With Torque Specification

G05202839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
