Windshield Glass: Components

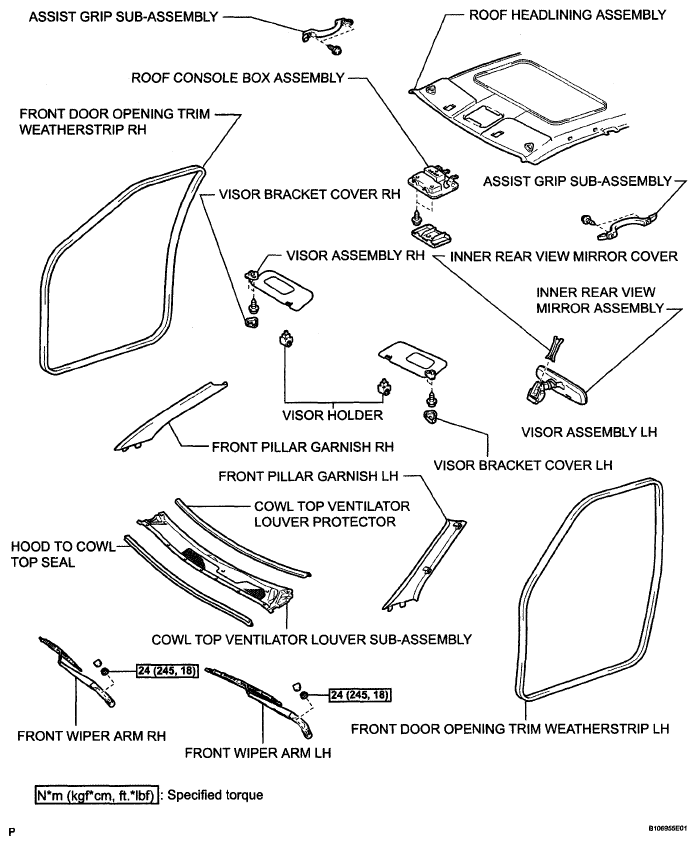

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 2)
G05243898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

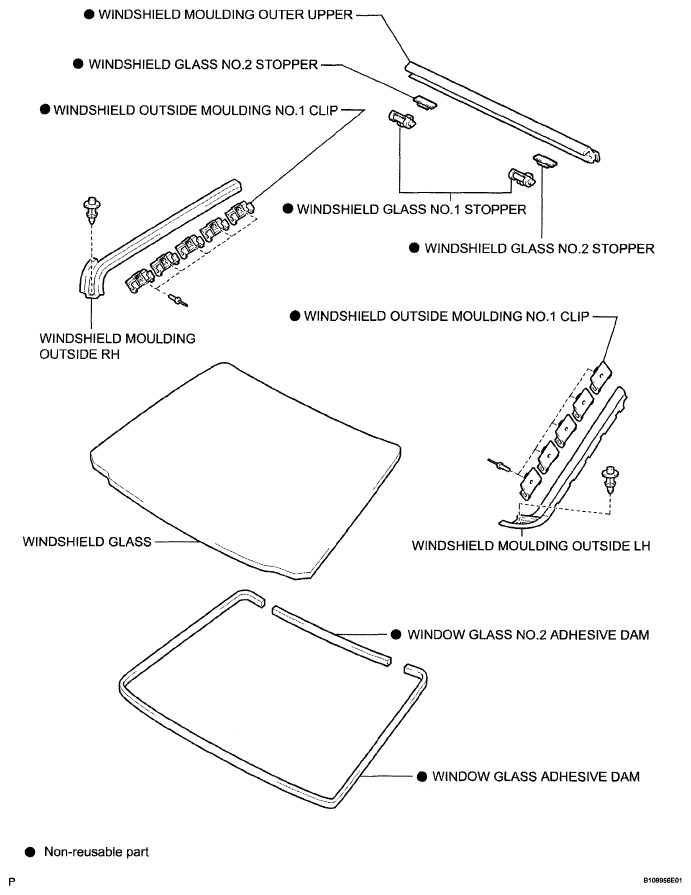

Fig 2: Identifying Windshield Glass Components (2 Of 2)
G05243899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
