Rear Window Defogger System does not Operate: Wiring Diagram

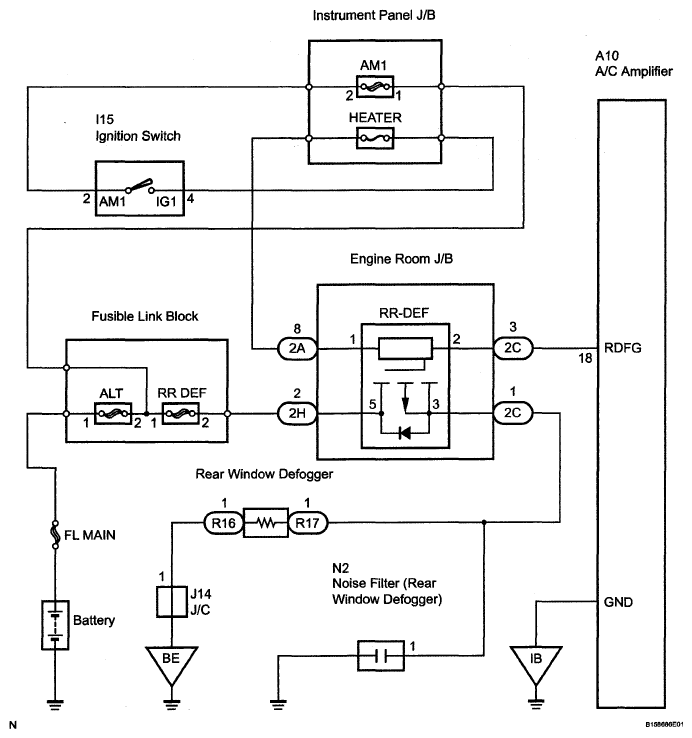

Fig 1: Rear Window Defogger System Wiring Diagram

G05243940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
