Circuit Description

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

The CAN main bus line and DLC3 sub bus line may have a disconnection when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is more than 69 Ω.

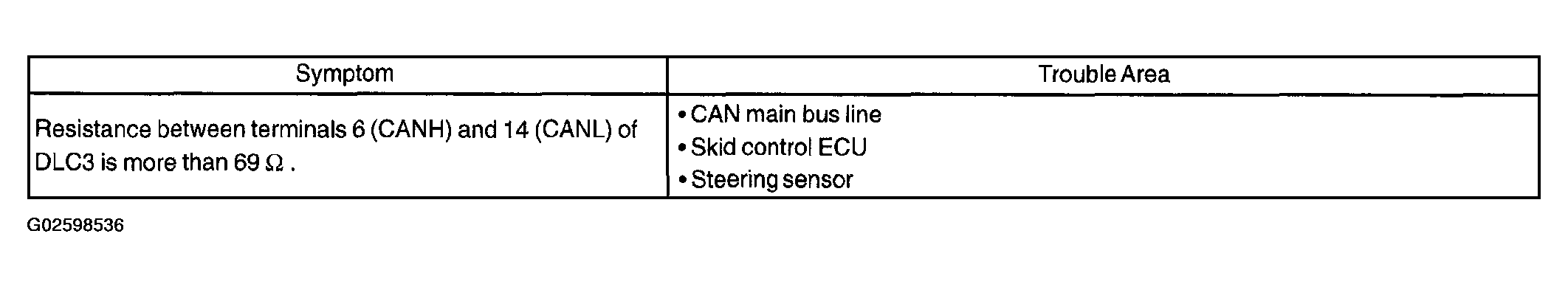

Fig 1: Symptom Trouble Area Chart - Check Can Main Bus Line For Disconnection
G02598536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
