Heated Oxygen Sensor: Installation

INSTALL OXYGEN SENSOR
1. Install the 2 oxygen sensors to the front pipe assembly.
  SST 09224-00010

  Torque:

  44 N*m (449 kgf*cm, 32 ft.*lbf)

  40 N*m (408 kgf*cm, 30 ft.*lbf) (with SST)

  NOTE: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
2. Connect the 2 oxygen sensor connectors.

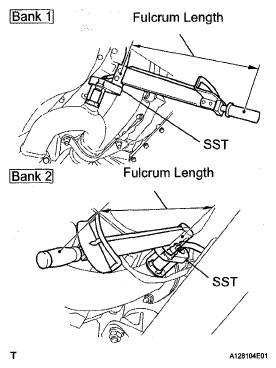

Fig 1: Installing Oxygen Sensors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
