ECM Power Source Circuit: Wiring Diagram

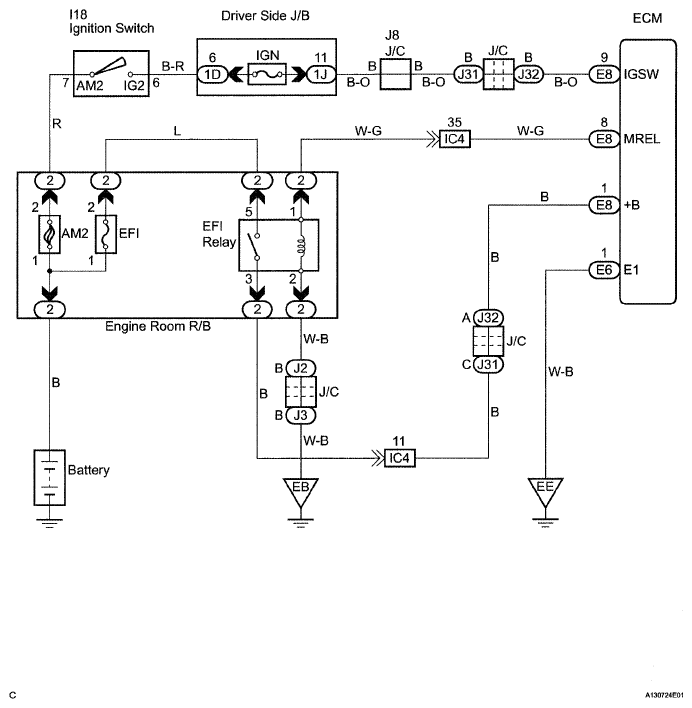

Fig 1: Ignition Switch - Wiring Diagram

G04968169

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
