Moon Roof: Notes

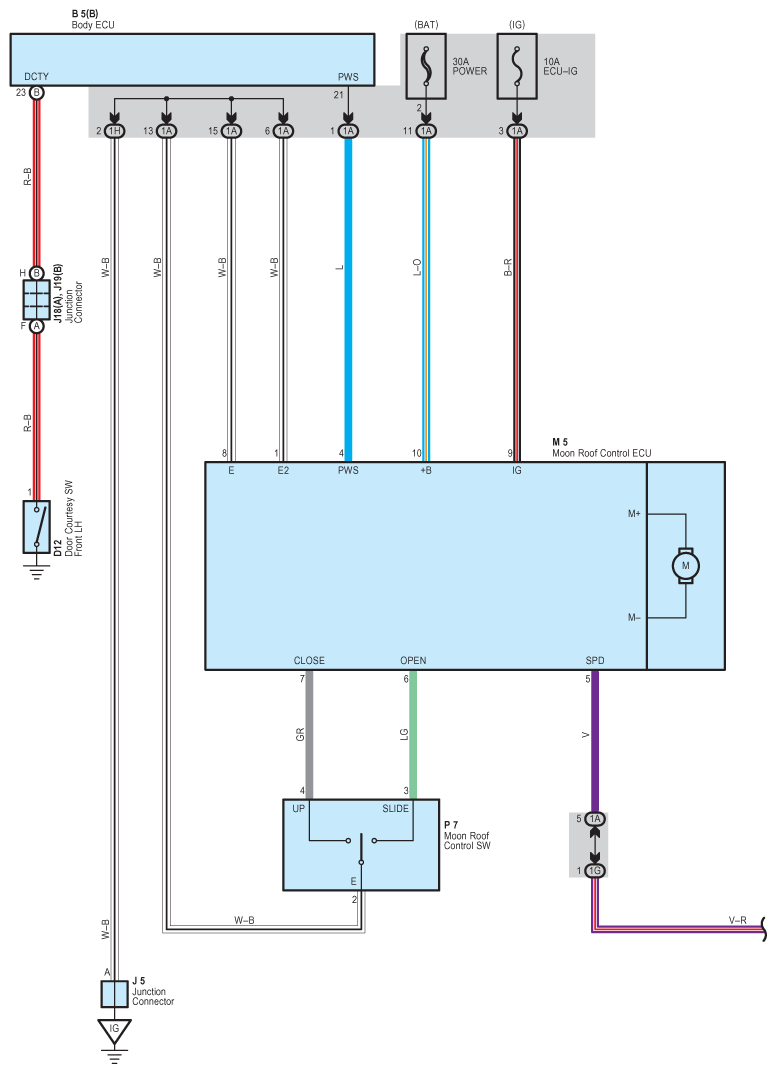

Fig 1: Moon Roof System Wiring Diagram (1 Of 2)
G08865397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Moon Roof System Wiring Diagram (2 Of 2)
G08865398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
