Ignition for 1GR-FE: Notes

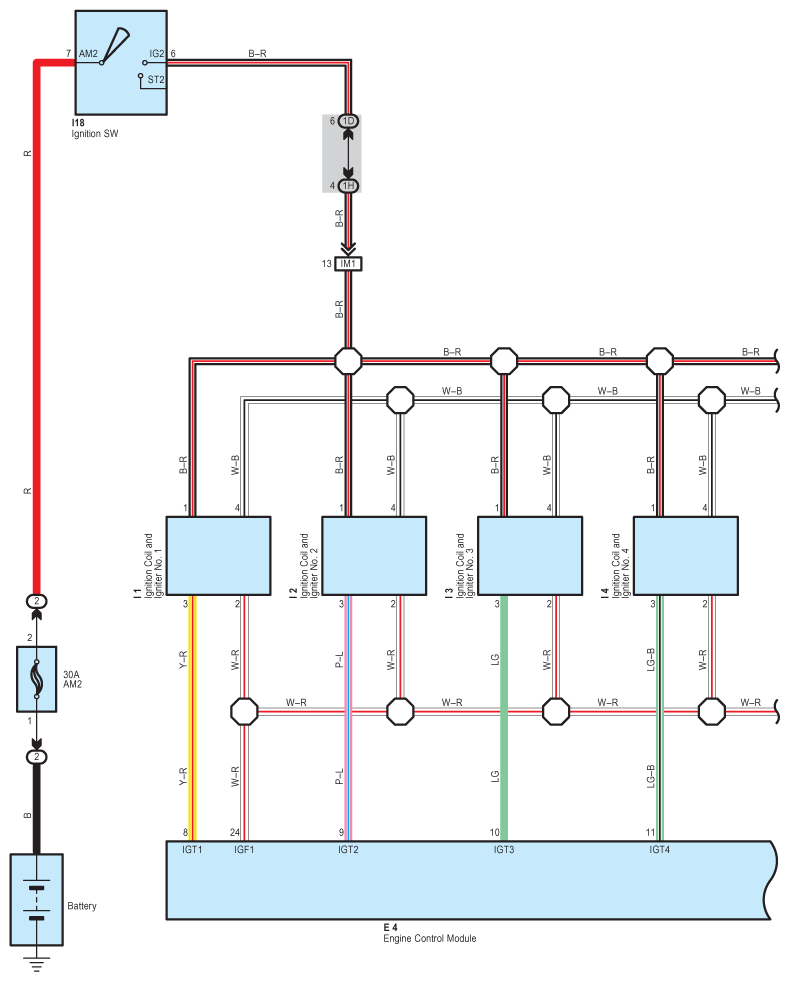

Fig 1: Ignition For 1GR-FE System Wiring Diagram (1 Of 2)
G08865249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

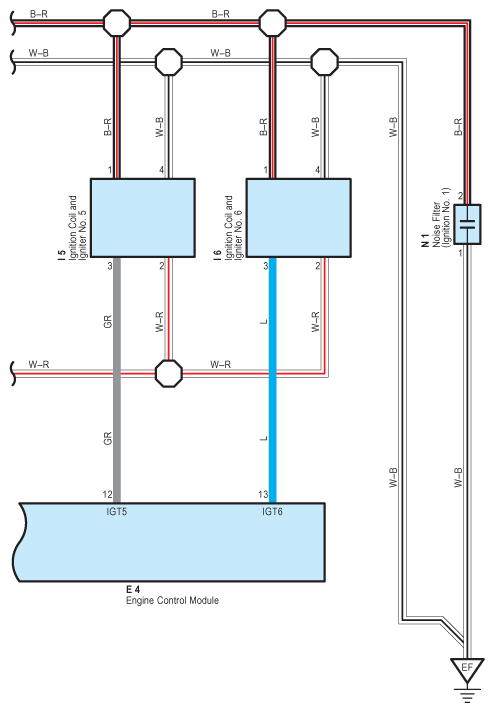

Fig 2: Ignition For 1GR-FE System Wiring Diagram (2 Of 2)
G08865250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
