Cruise Control for 2UZ-FE: Notes

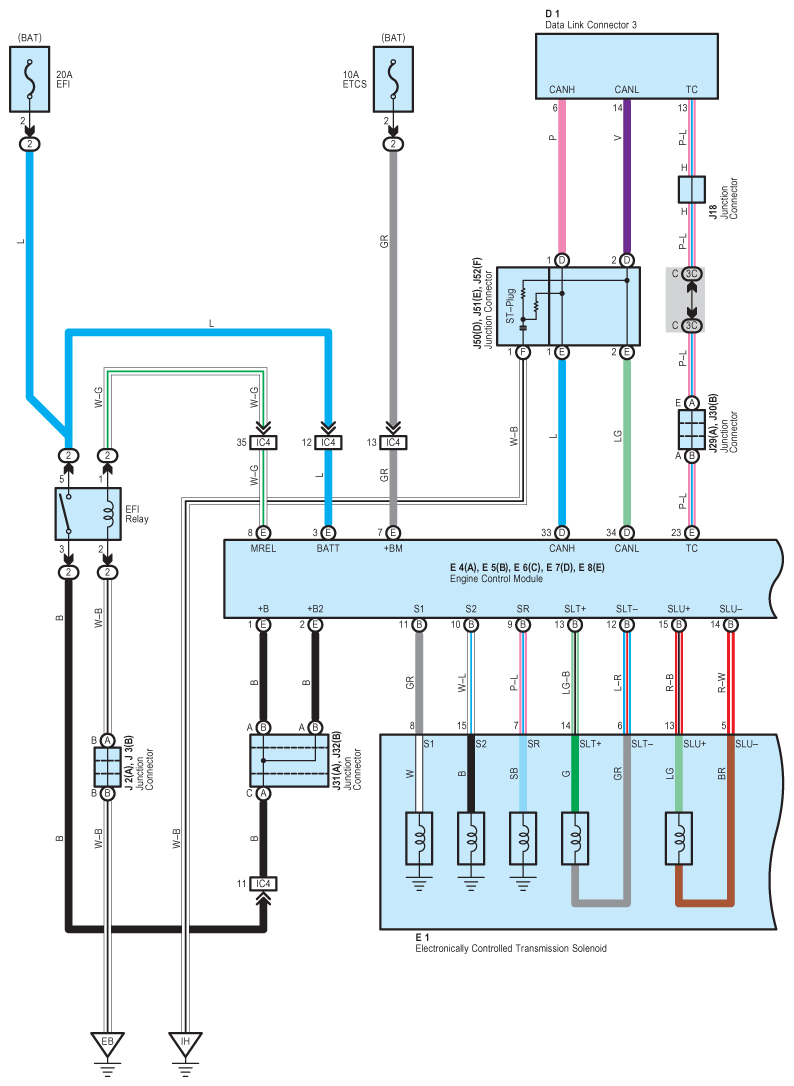

Fig 1: Cruise Control For 2UZ-FE System Wiring Diagram (1 Of 4)
G08865370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

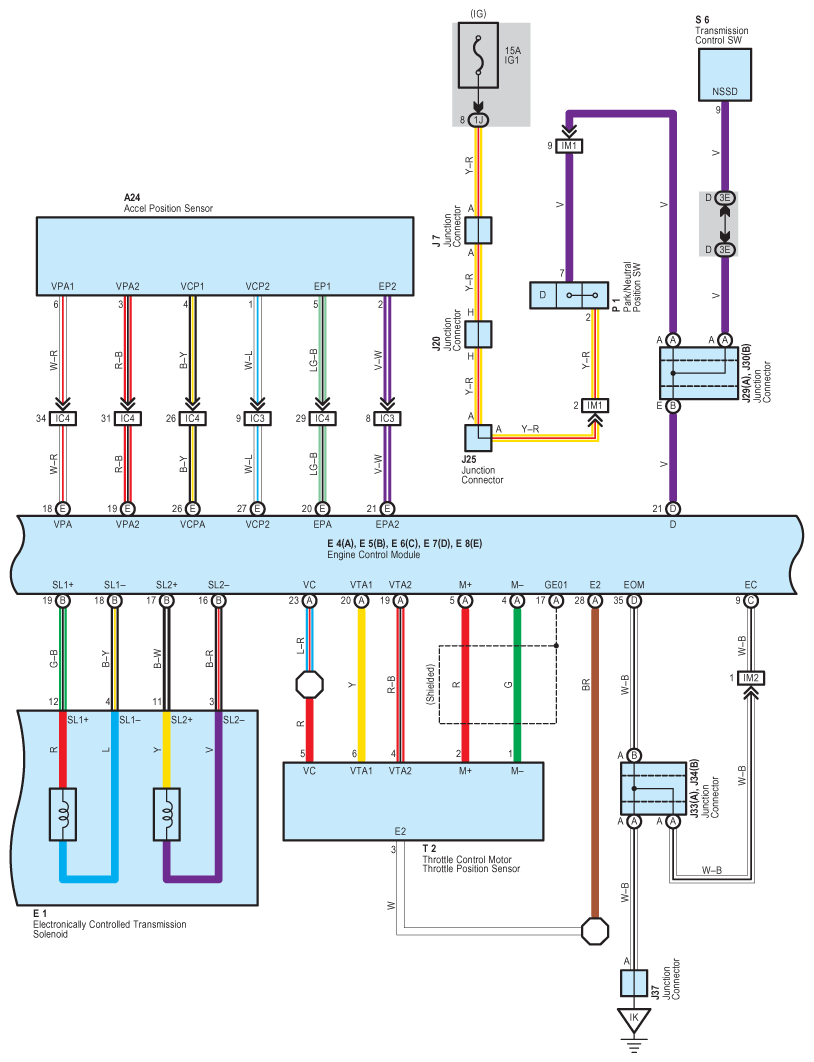

Fig 2: Cruise Control For 2UZ-FE System Wiring Diagram (2 Of 4)
G08865371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

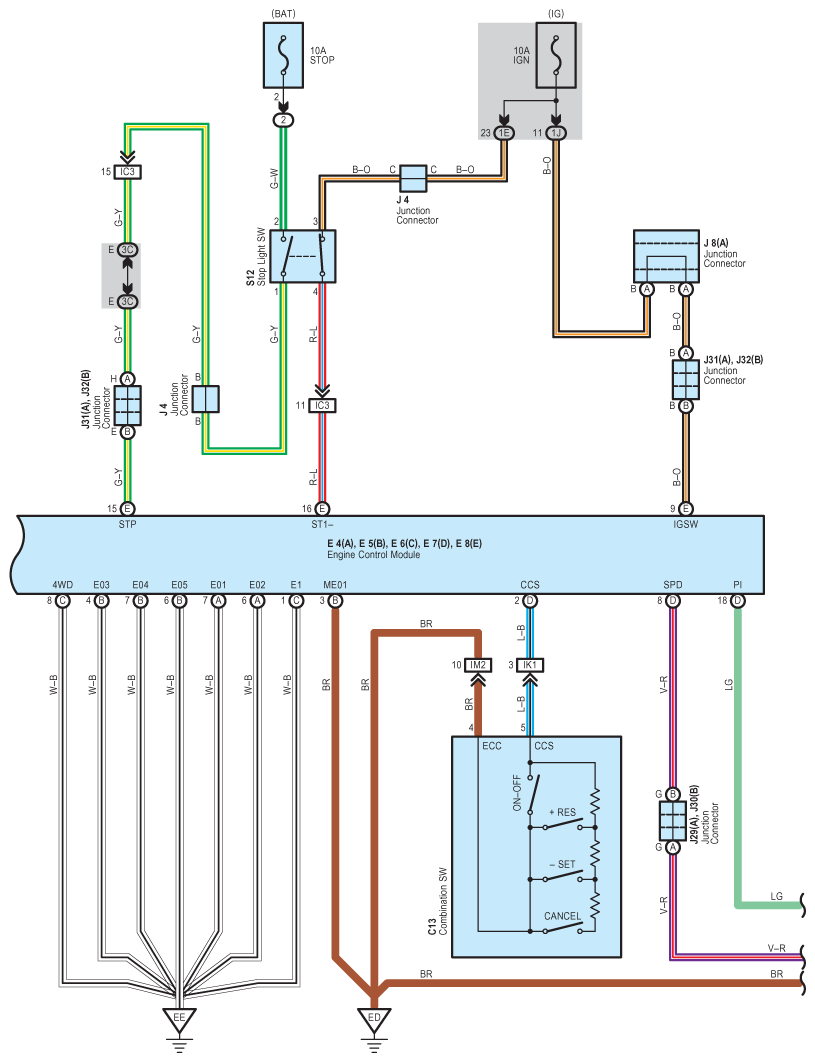

Fig 3: Cruise Control For 2UZ-FE System Wiring Diagram (3 Of 4)
G08865372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

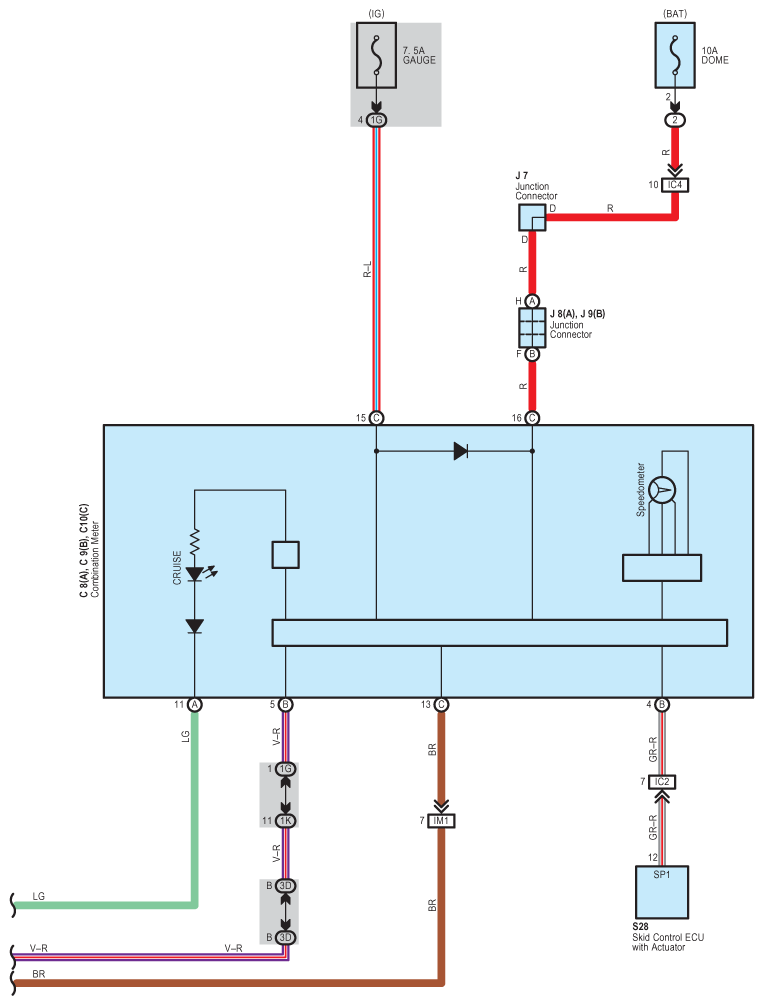

Fig 4: Cruise Control For 2UZ-FE System Wiring Diagram (4 Of 4)
G08865373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
