ACIS Control Circuit: Wiring Diagram

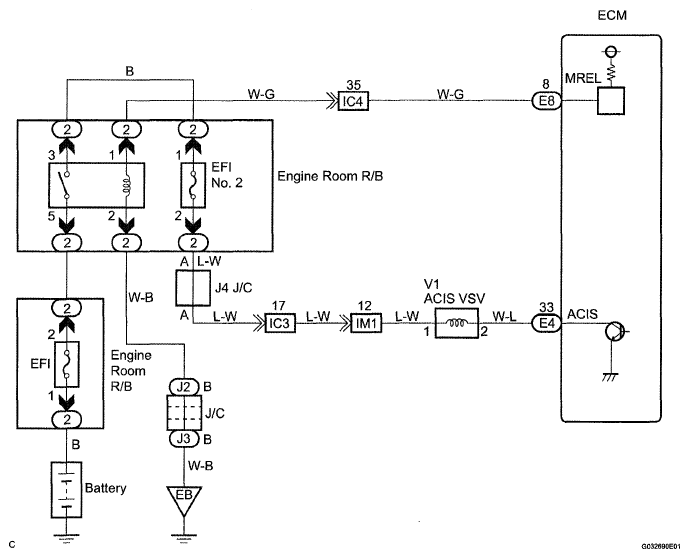

Fig 1: ACIS Control Wiring Diagram

G04968621

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
