Front Axle Hub: Components

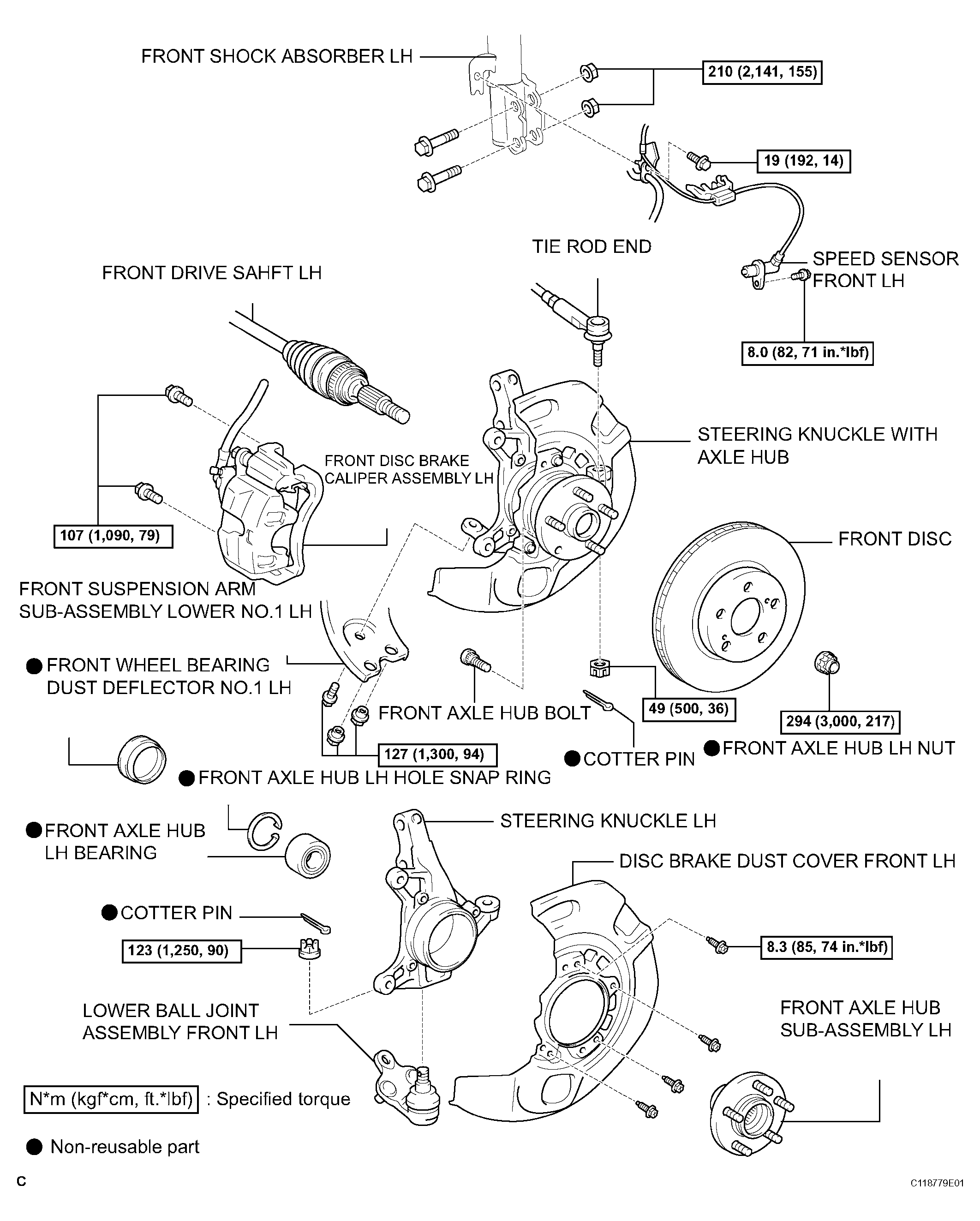

Fig 1: Identifying Front Axle Hub Components And Replacements

G04497950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
