Suspension Control Ecu: Installation

INSTALL SUSPENSION CONTROL ECU
1. Install the suspension control ECU with the screw.
2. Connect the connector.
INSTALL INTEGRATION CONTROL AND PANEL
(See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization. (See INITIALIZATION )
  HINT:

  Some systems need initialization when disconnecting the cable from the negative battery terminal.

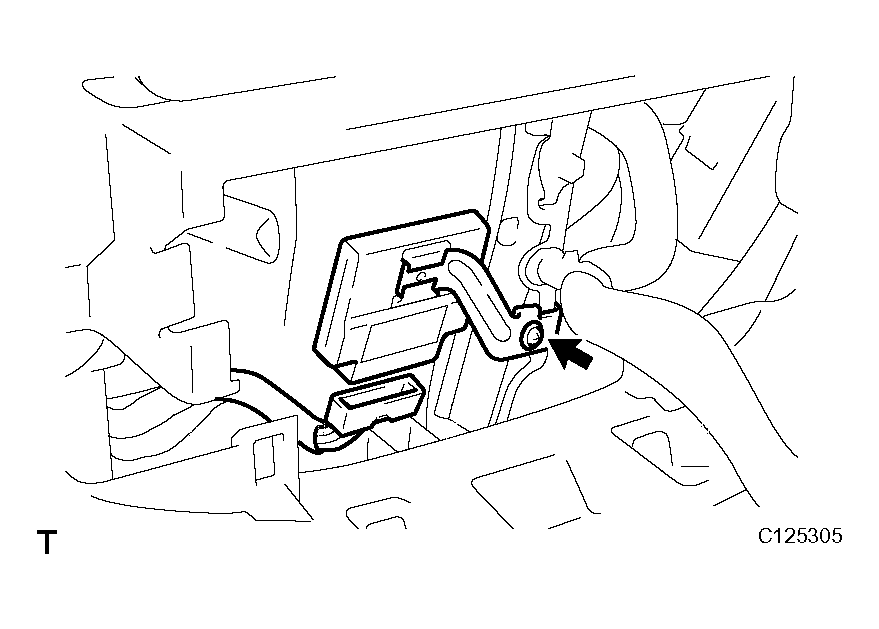

  Fig 1: Installing Suspension Control ECU With Screw
  Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
