ECT and A/T Indicator for 2GR-FE: Notes

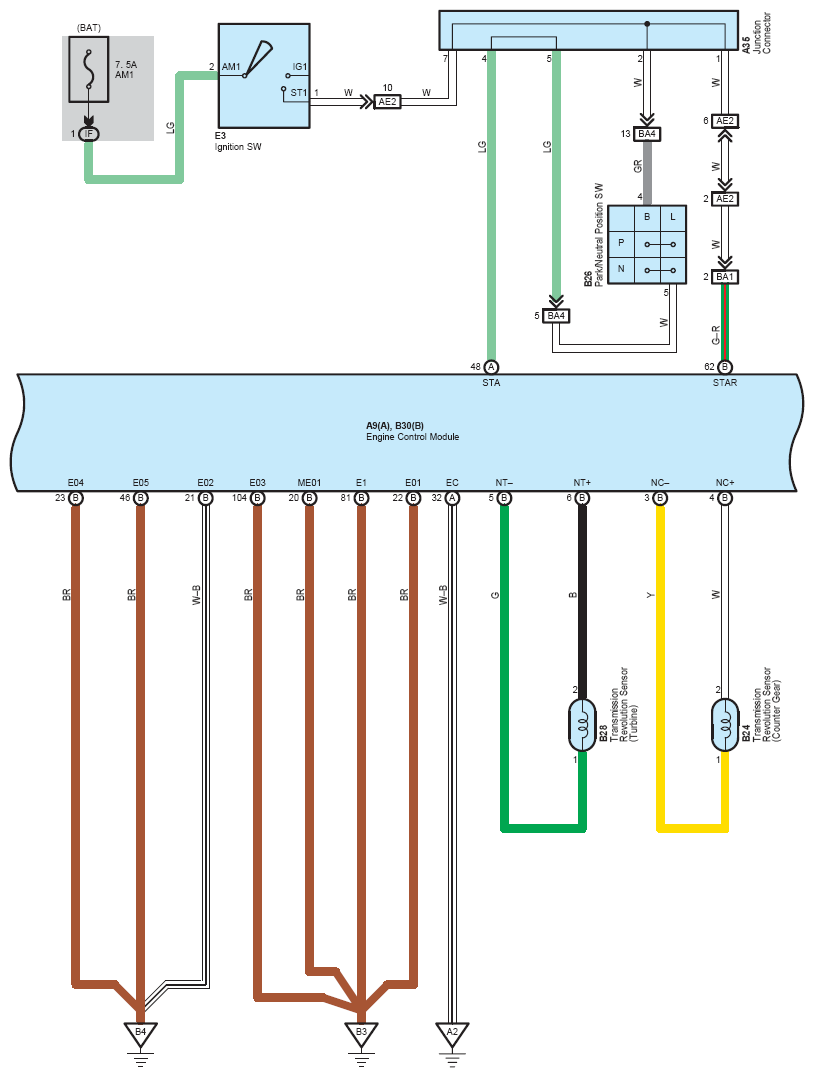

Fig 1: ECT And A/T Indicator For 2GR-FE System Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

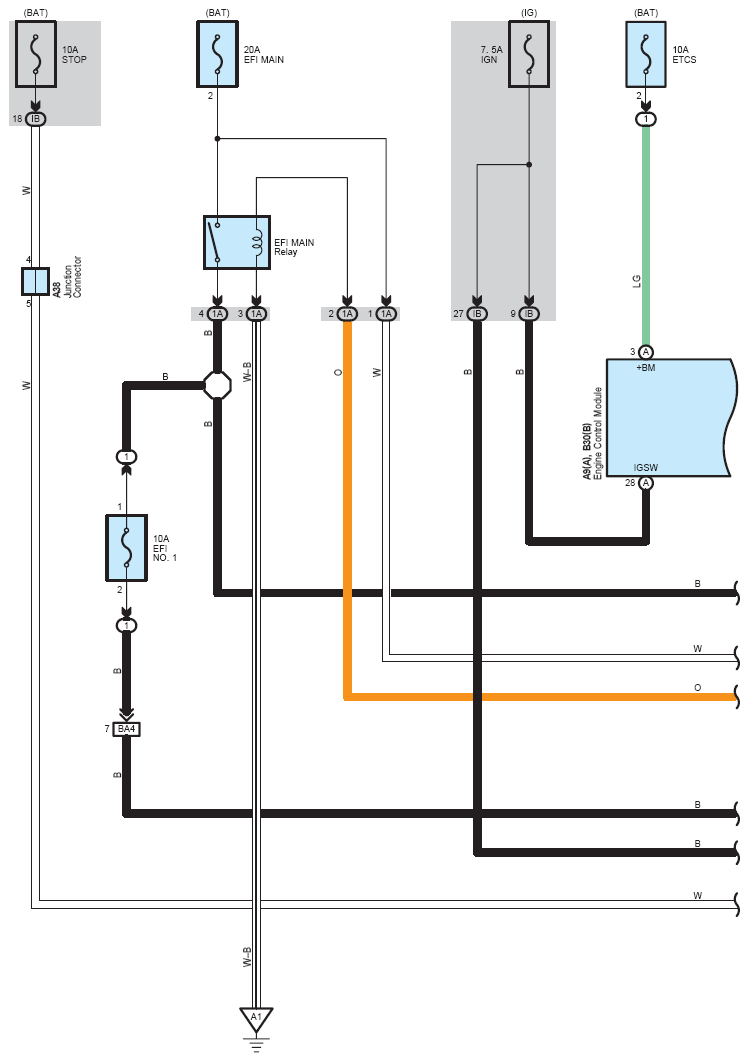

Fig 2: ECT And A/T Indicator For 2GR-FE System Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

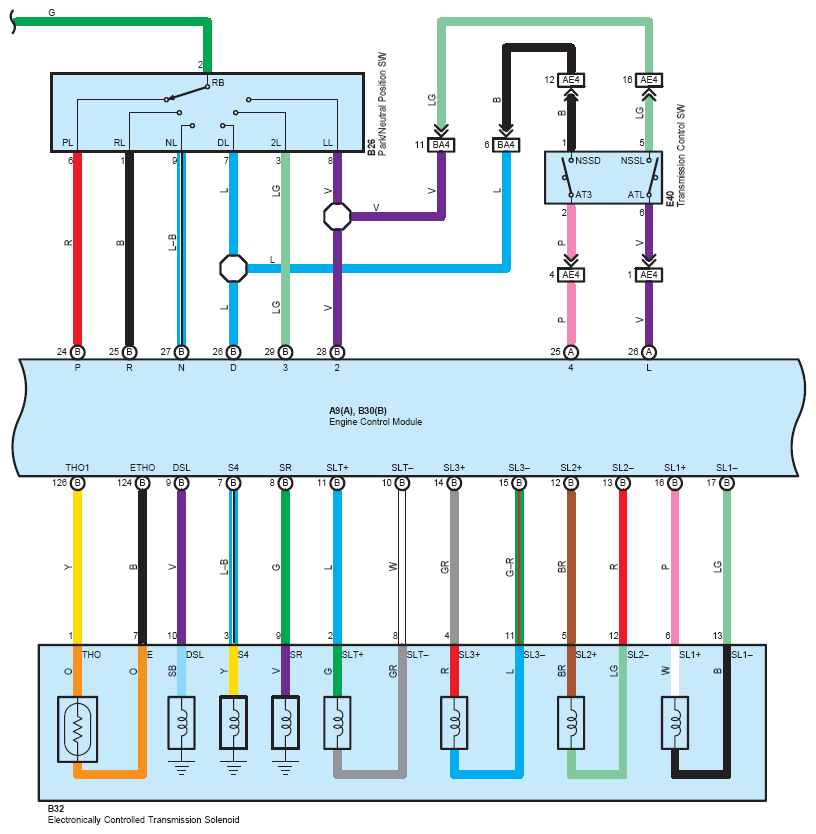

Fig 3: ECT And A/T Indicator For 2GR-FE System Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

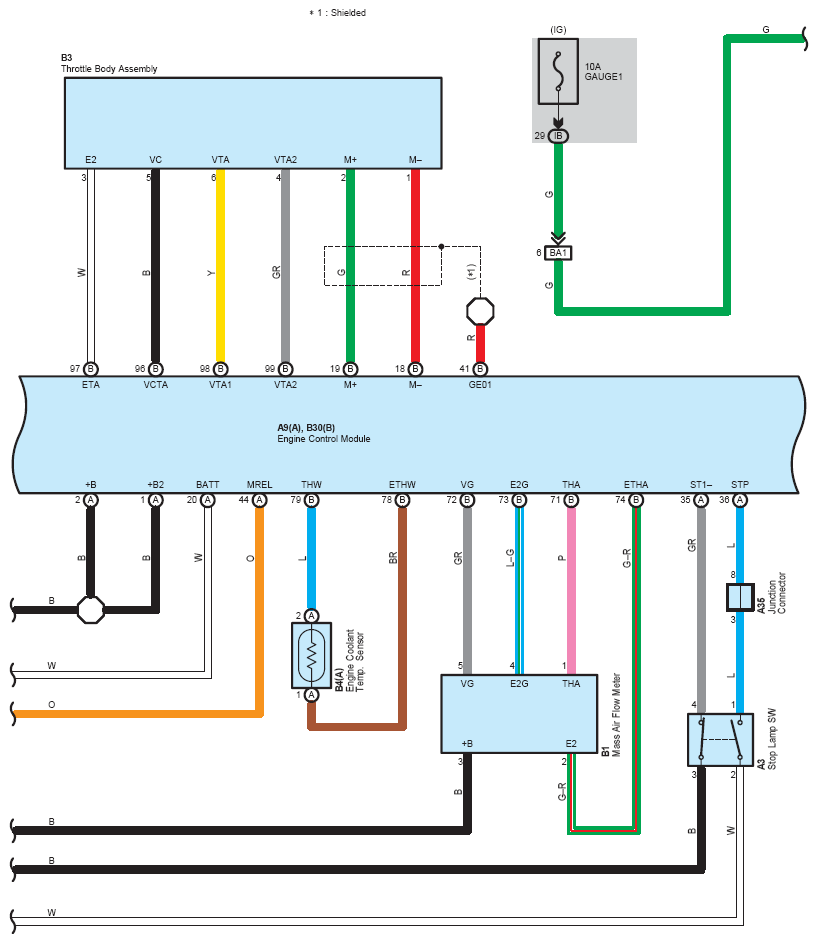

Fig 4: ECT And A/T Indicator For 2GR-FE System Wiring Diagram (4 Of 6)

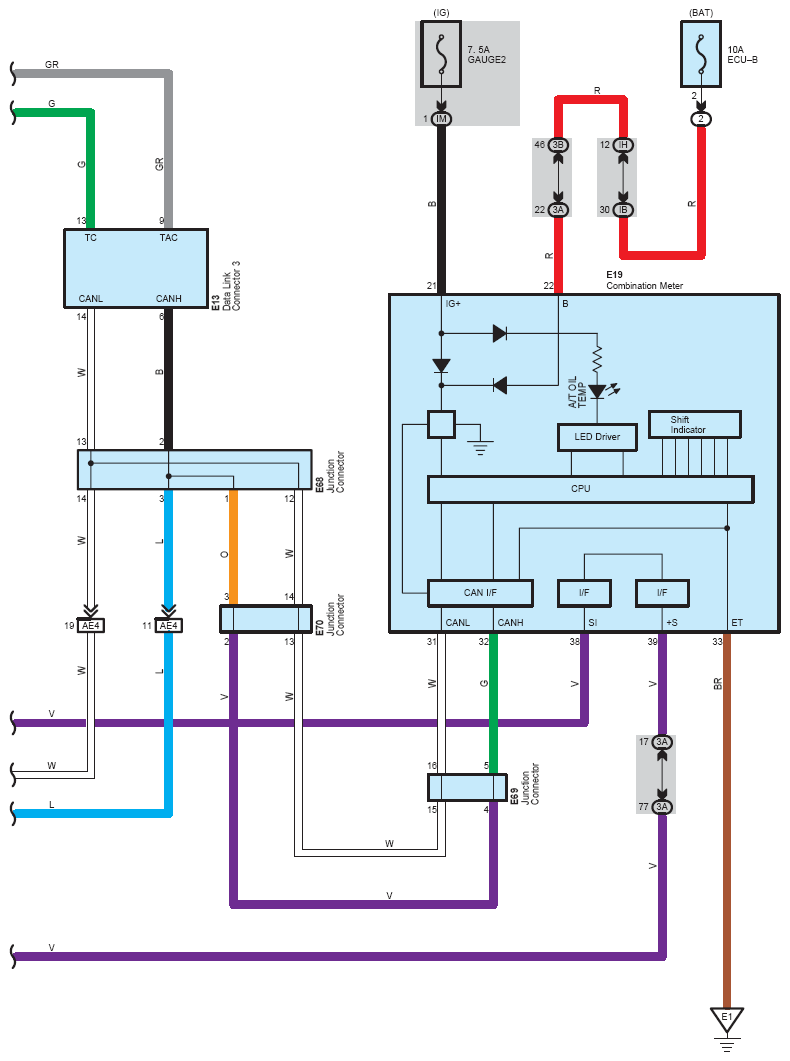

Fig 5: ECT And A/T Indicator For 2GR-FE System Wiring Diagram (5 Of 6)

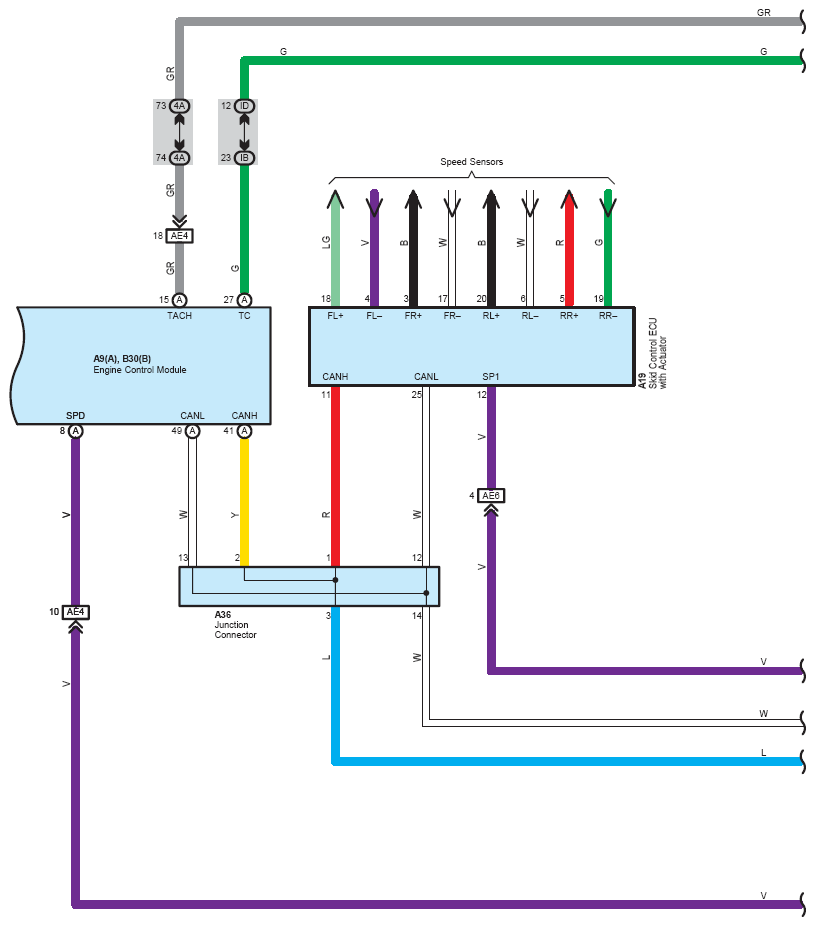

Fig 6: ECT And A/T Indicator For 2GR-FE System Wiring Diagram (6 Of 6)
