MIL Circuit: Wiring Diagram

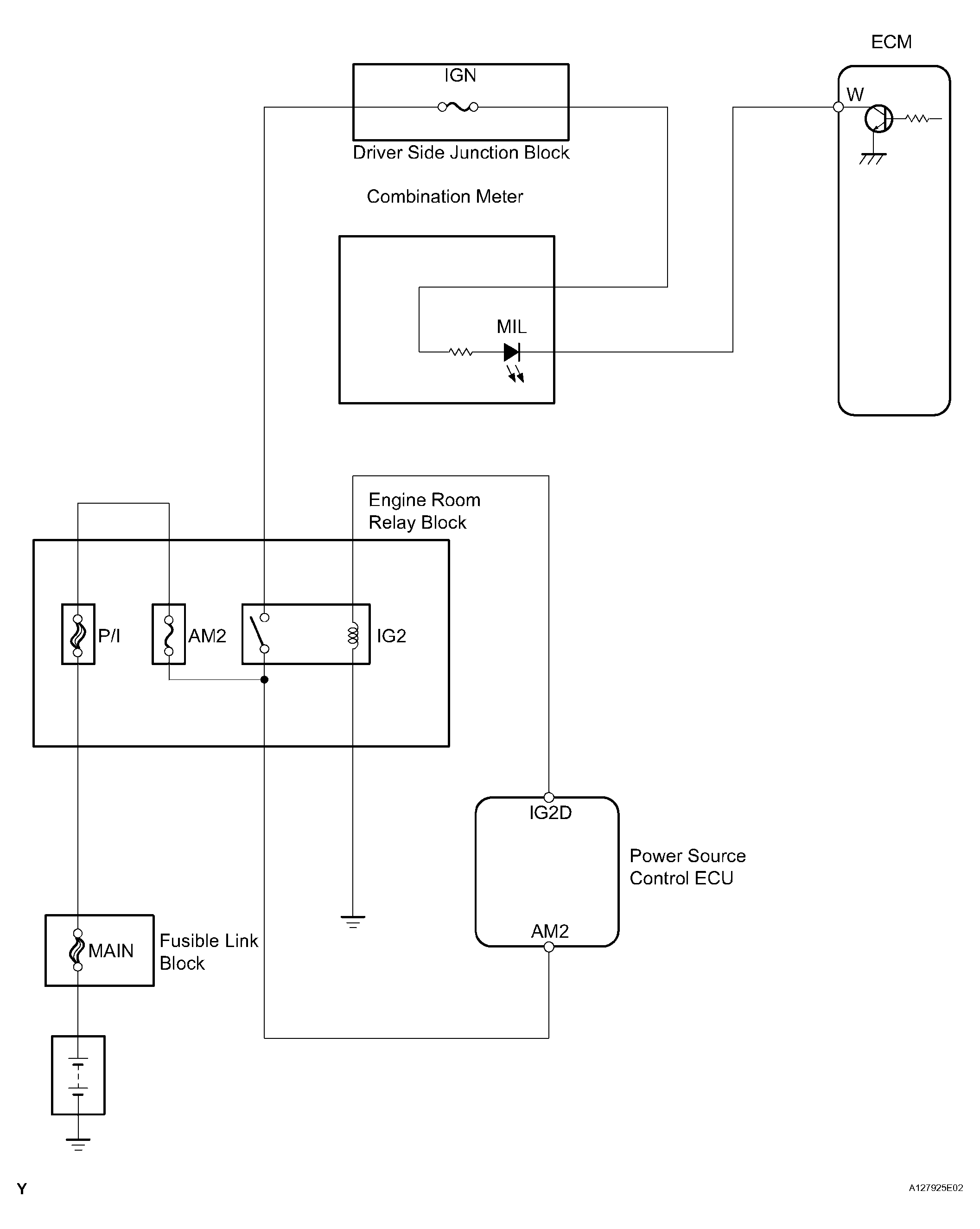

Fig 1: Wiring Diagram

G04472292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
