Inspection Procedure

1. Check that the GPS mark is displayed.

   OK : GPS mark is displayed.

NG : GO TO "GPS MARK IS NOT DISPLAYED" IN  PROBLEM SYMPTOMS TABLE

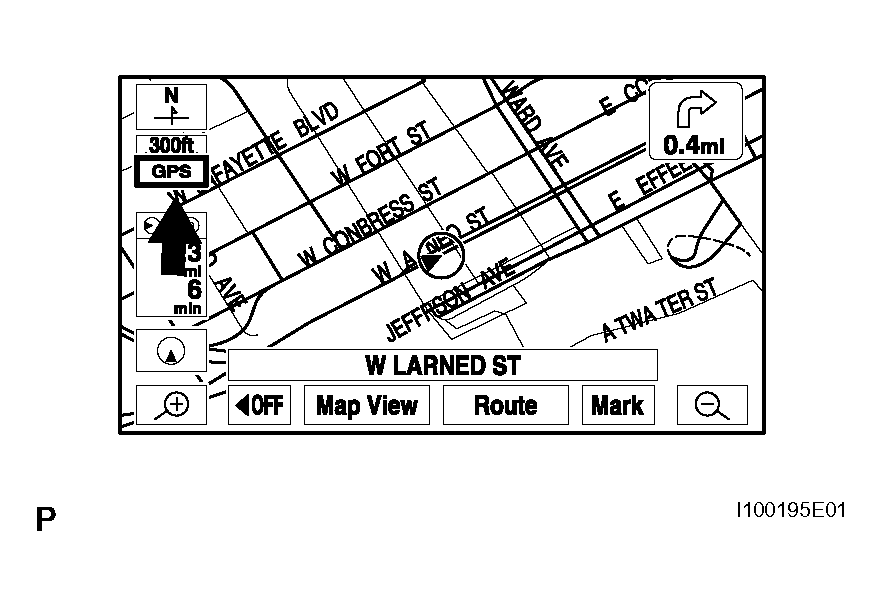

Fig 1: Checking GPS Mark

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Enter the "Navigation Check" mode (Vehicle Sensors) (see NAVIGATION CHECK MODE  ).
2. While driving the vehicle, compare the "Speed" indicator to the reading on the speedometer. Check that these readings are almost equal.

   OK : The readings are almost equal.

NG : GO TO "SPEED SIGNAL DOES NOT CHANGE IN NAVIGATION CHECK MODE" IN  PROBLEM SYMPTOMS TABLE

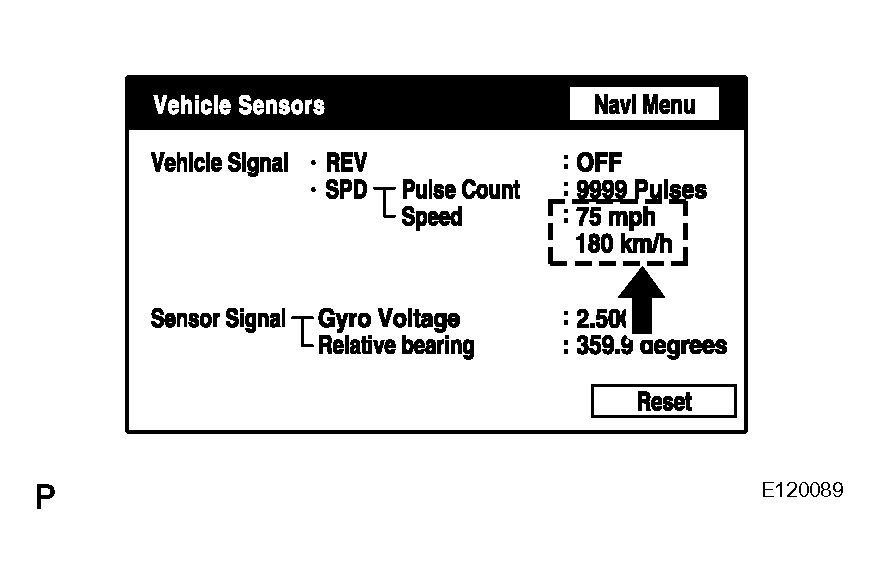

Fig 2: Check Vehicle Sensor (Navigation Check Mode) Screen Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Check that the display changes between ON and OFF according to the shift lever operation (P and R).

   OK

   SHIFT LEVER POSITION CHART



   Shift Lever Position	Display
   P	OFF
   Reverse position	ON

   HINT:

   The display is updated once per second. It is normal for the display to lag behind the actual switch operation.

NG : GO TO "REVERSE SIGNAL DOES NOT CHANGE IN THE NAVIGATION CHECK MODE" IN  PROBLEM SYMPTOMS TABLE

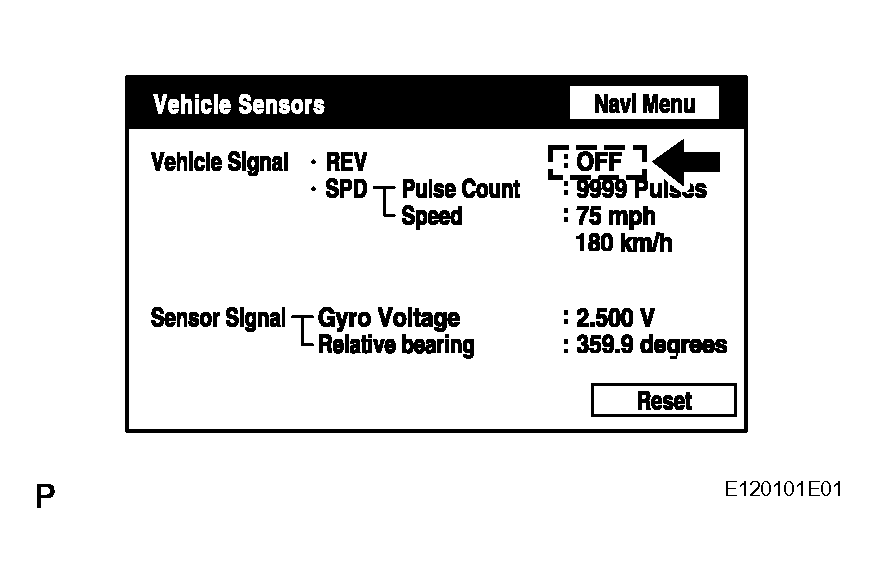

Fig 3: Check Vehicle Sensor (Navigation Check Mode) Screen Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN  PROBLEM SYMPTOMS TABLE
