Section 9 (Starting System (1ZZ-FE)): Starter: Components

WARNING: This page is about a different variant/trim than selected.

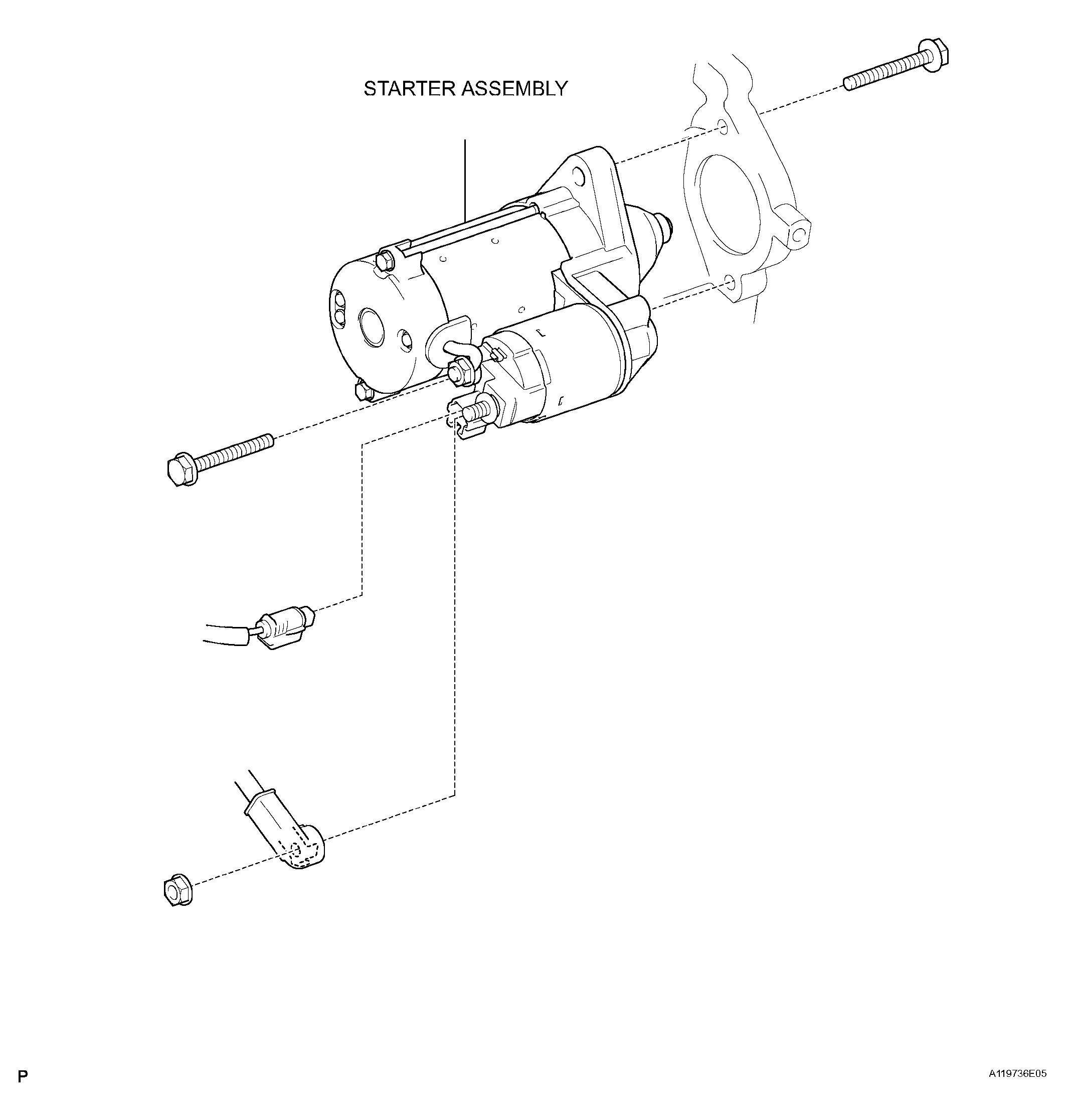

Fig 1: Identifying Starter Components
G04462399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

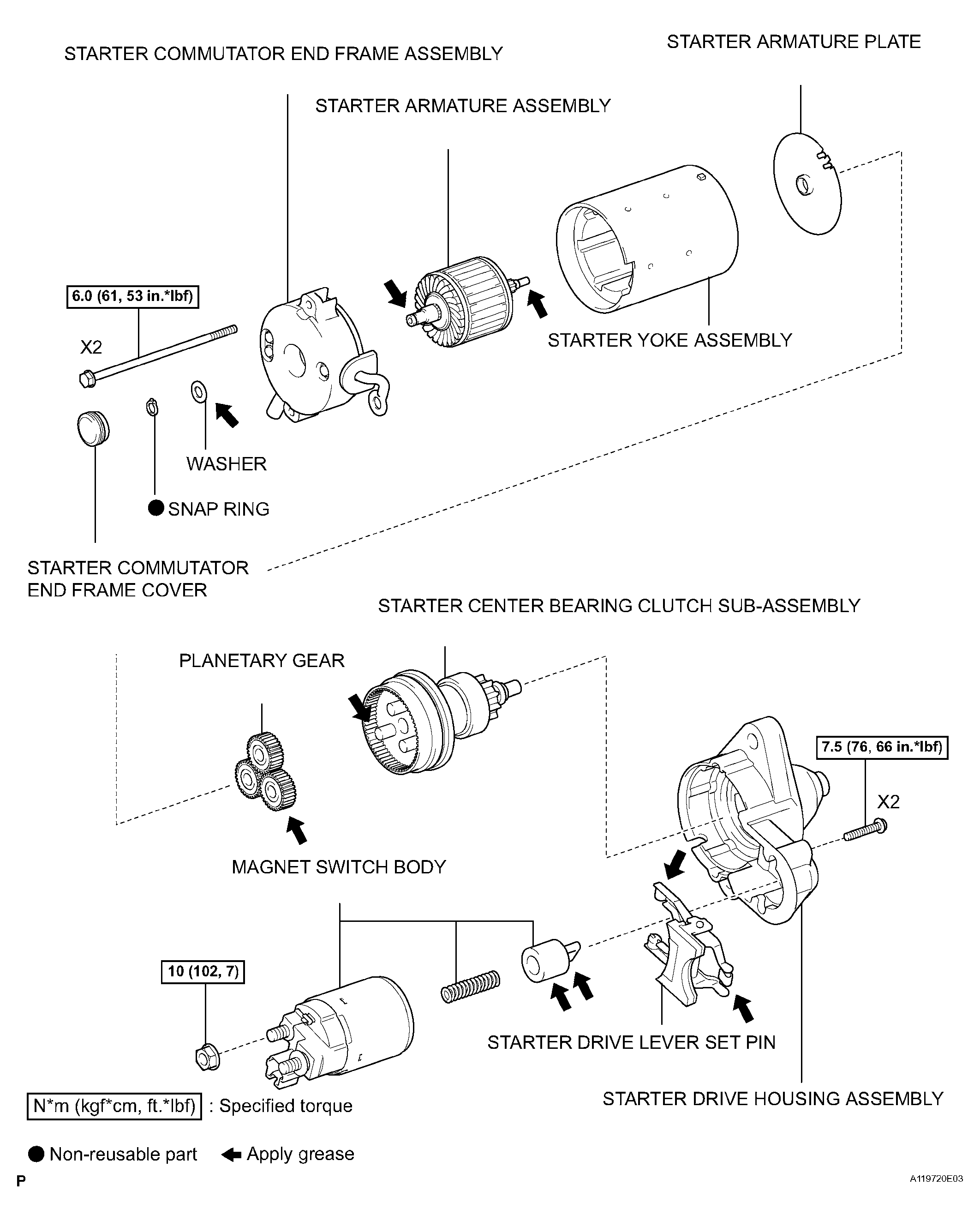

Fig 2: Starter Replacement Components With Torque Specifications
G04462400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
