Power Window Master Switch Power Source Circuit: Wiring Diagram

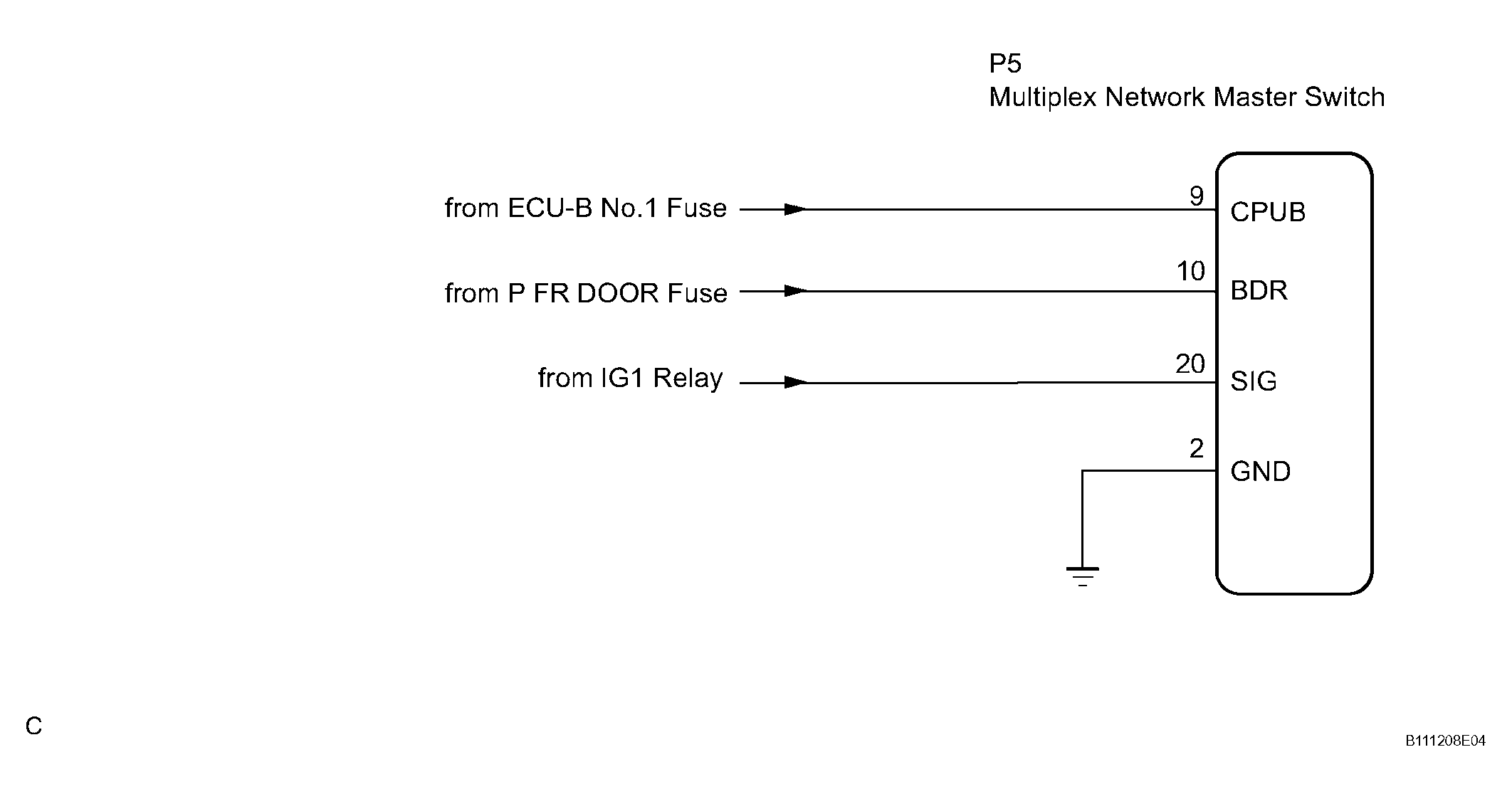

Fig 1: Power Window Master Switch Power Source Wiring Diagram

G04445346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
