Steering Column ASSY: Components

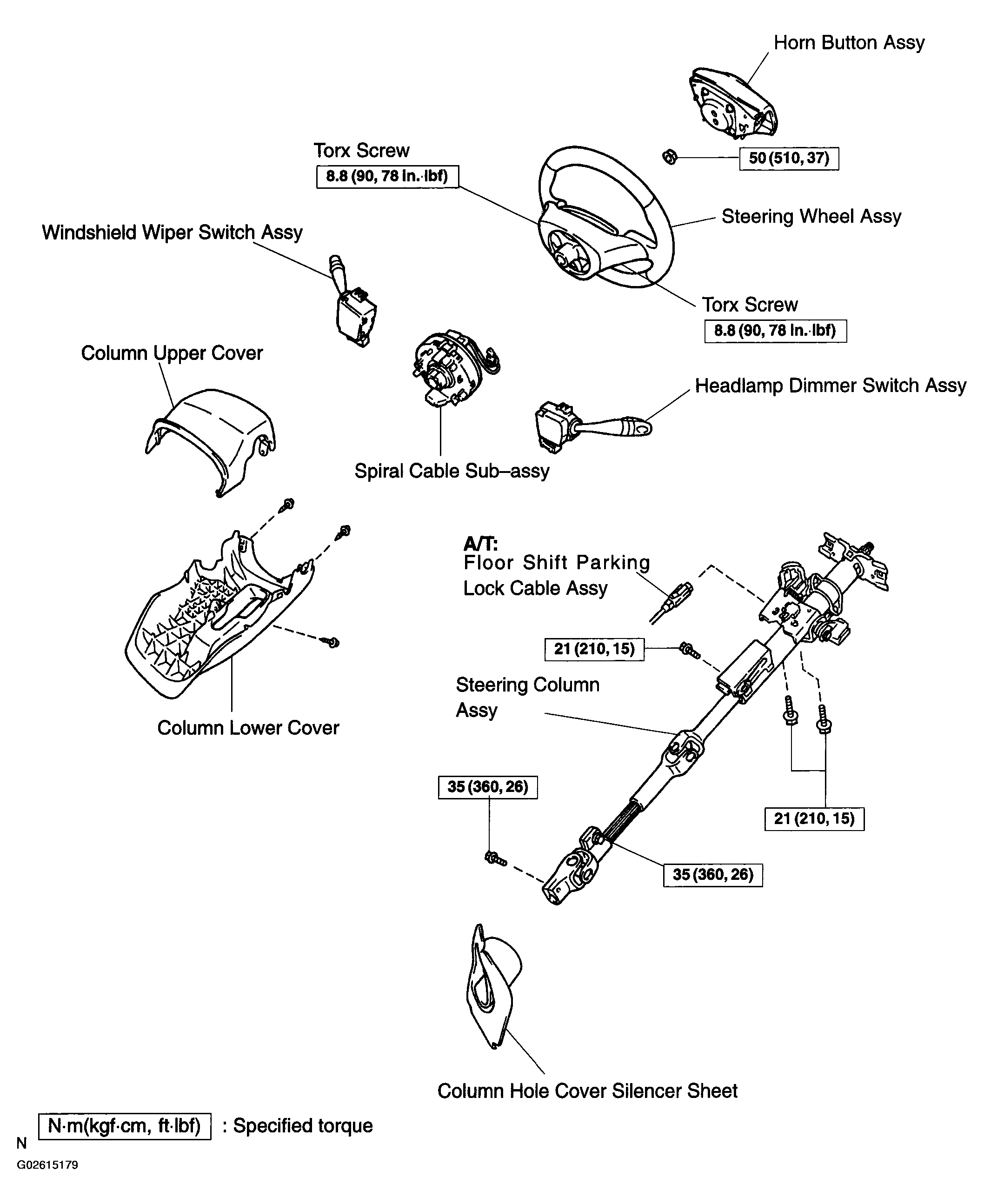

Fig 1: Identifying Steering Column Assembly Components (1 Of 2)
G02615179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

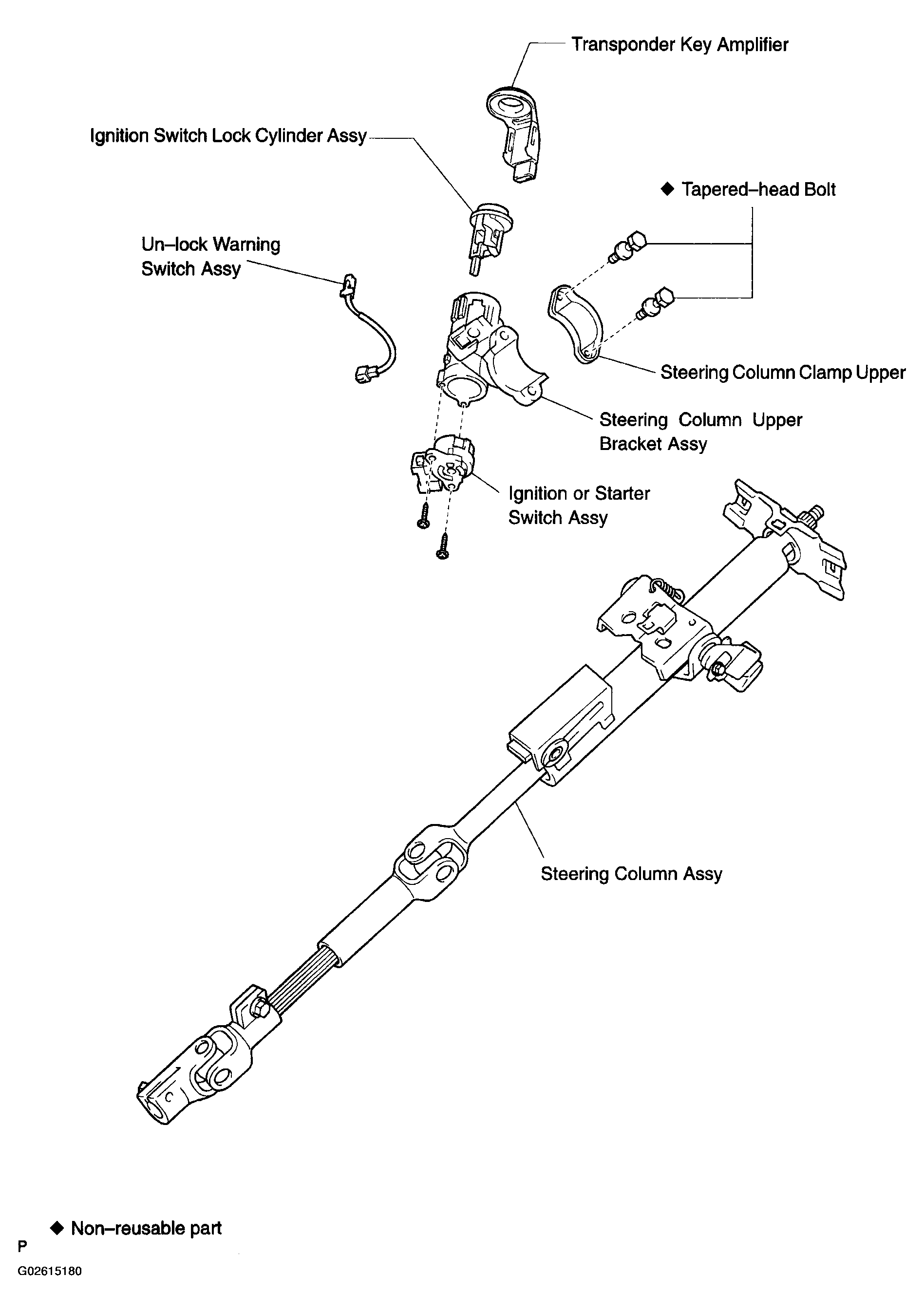

Fig 2: Identifying Steering Column Assembly Components (2 Of 2)
G02615180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
