Home >> Toyota >> 2006 >> Corolla LE, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Front Seat >> Components

Front Seat: Components

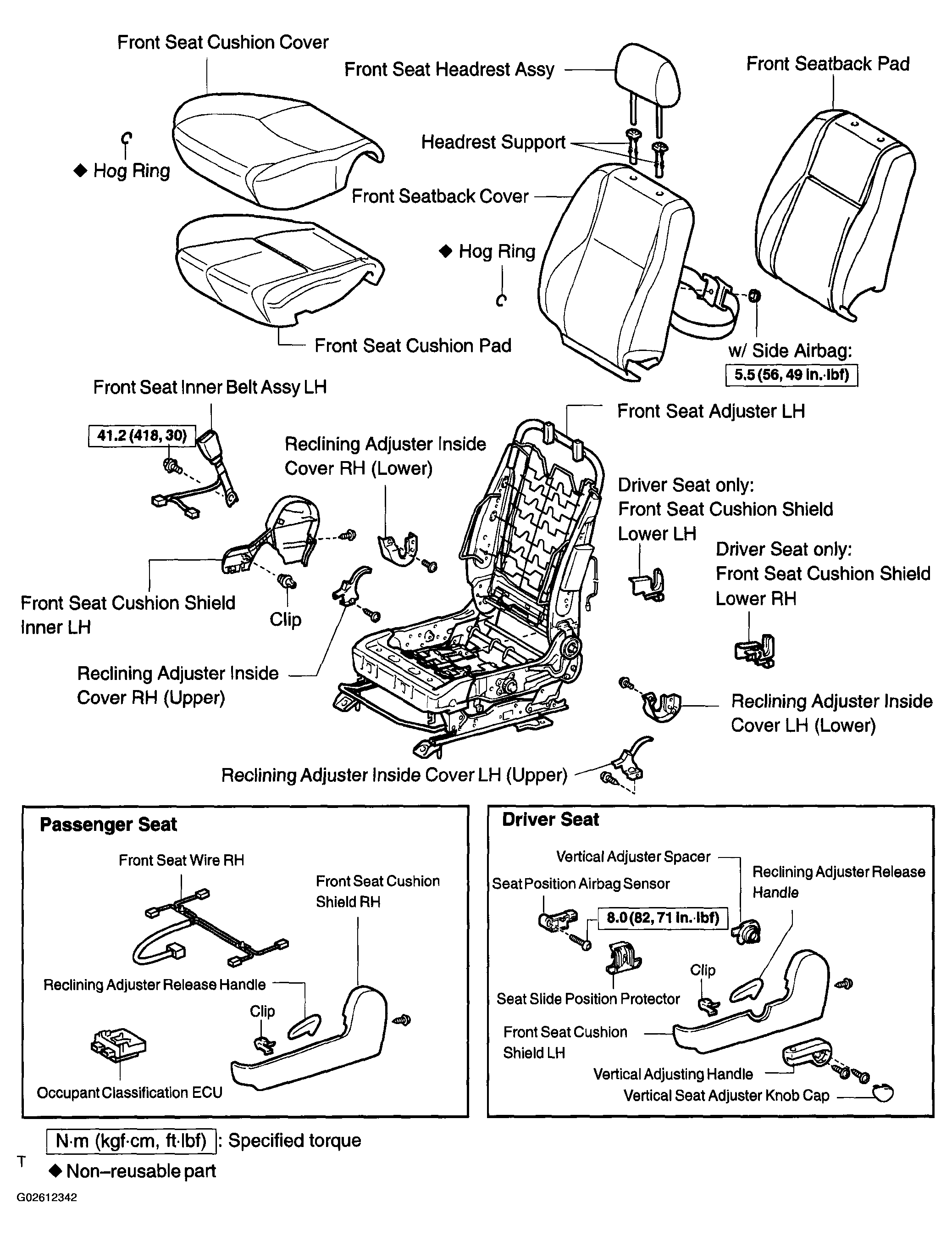

Fig 1: Identifying Front Seat Components (1 Of 2)
G02612342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

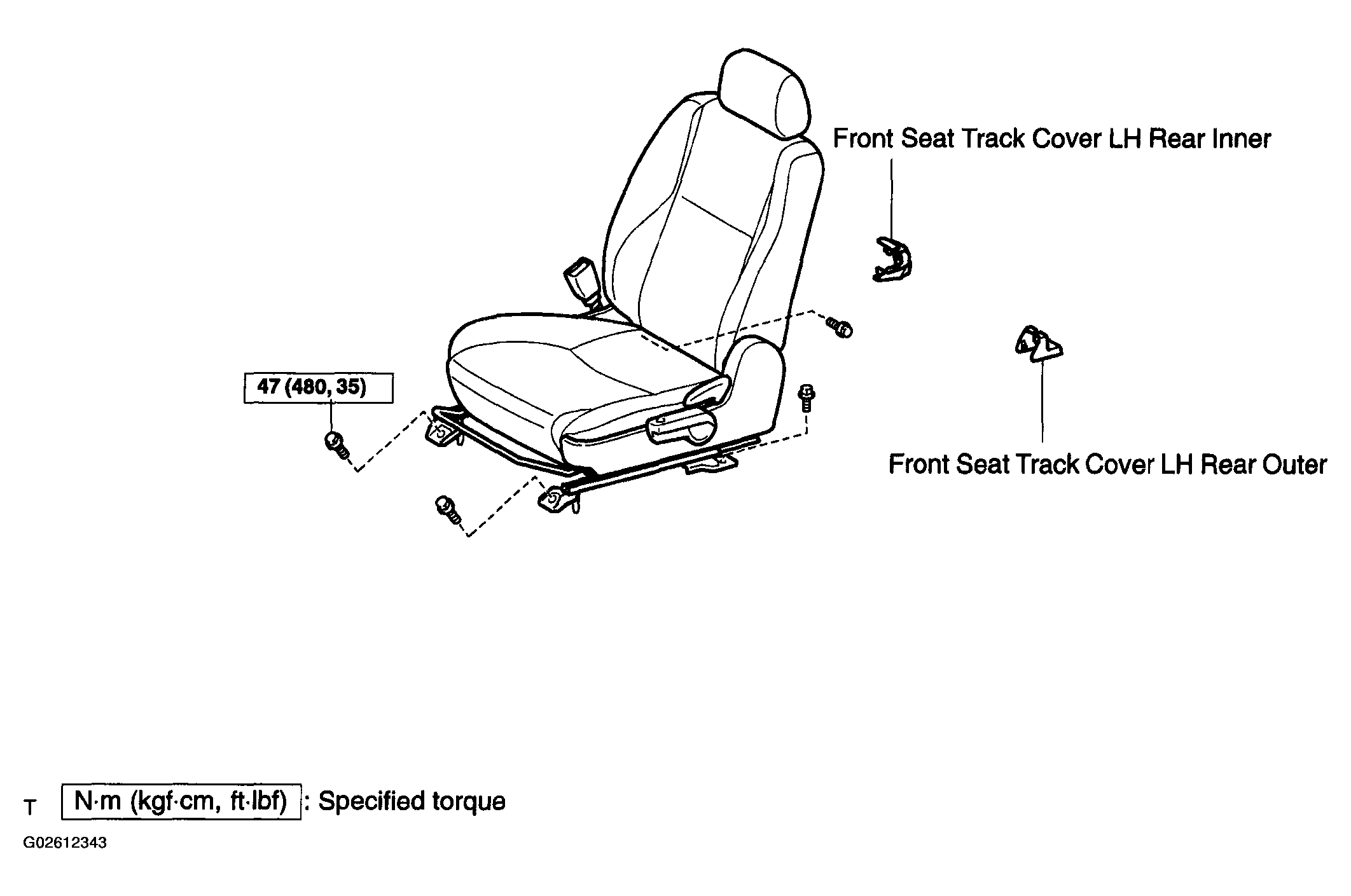

Fig 2: Identifying Front Seat Components (2 Of 2)
G02612343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
