Section 46 (Windshield/WINDOWGLASS)
>>
Window Defogger System
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

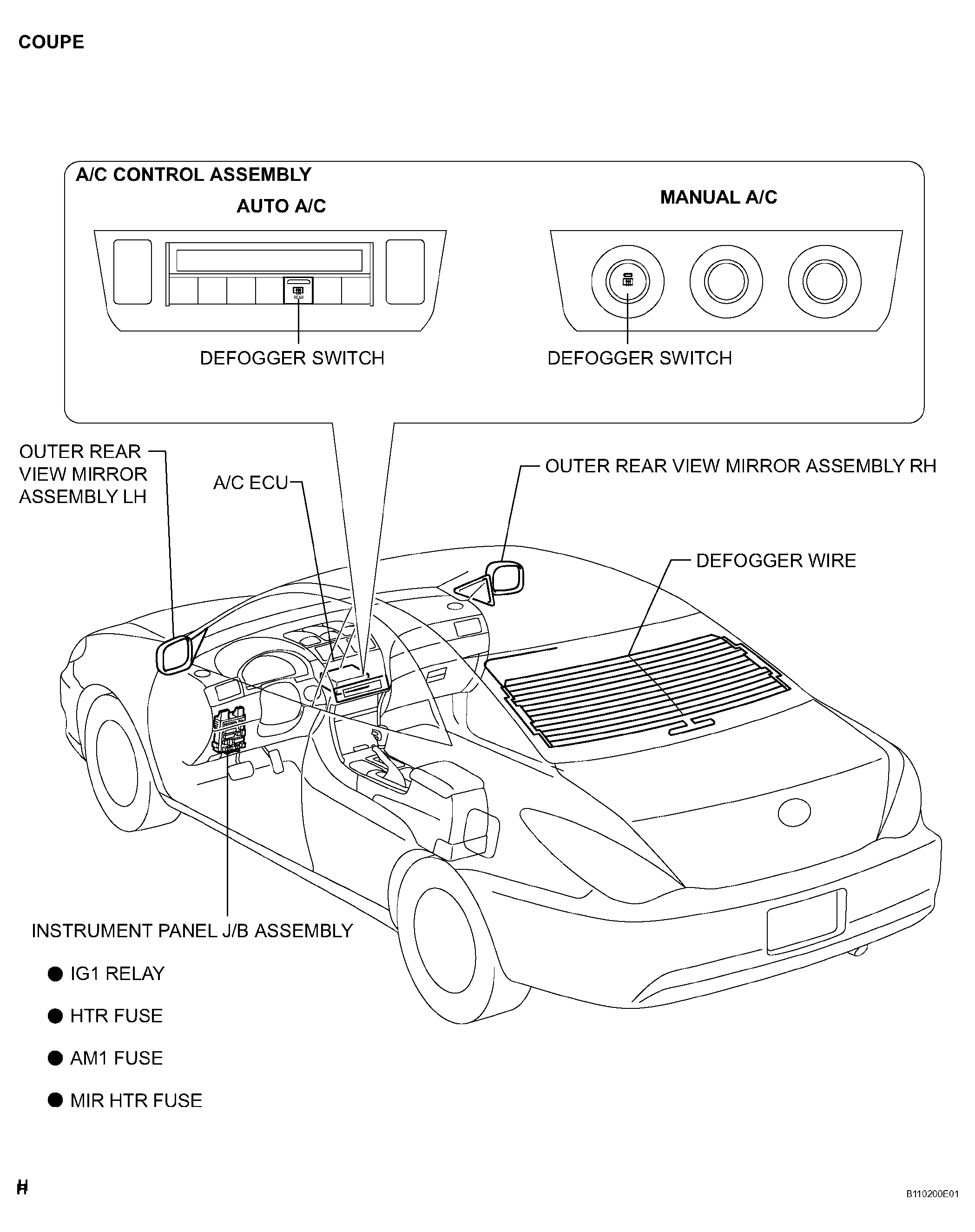

Fig 1: Identifying Window Defogger Parts Location (Coupe)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

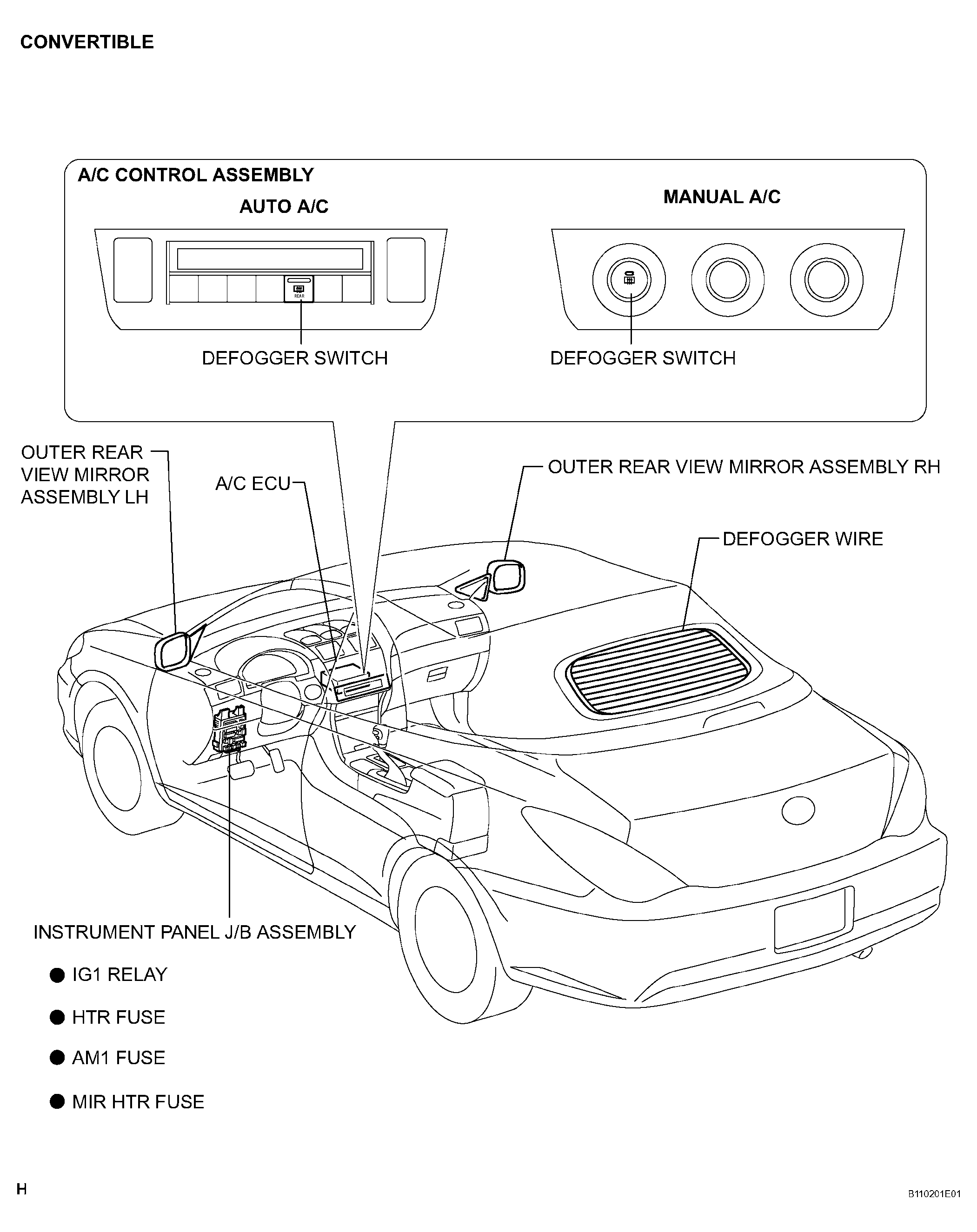

Fig 2: Identifying Window Defogger Parts Location (Convertible)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

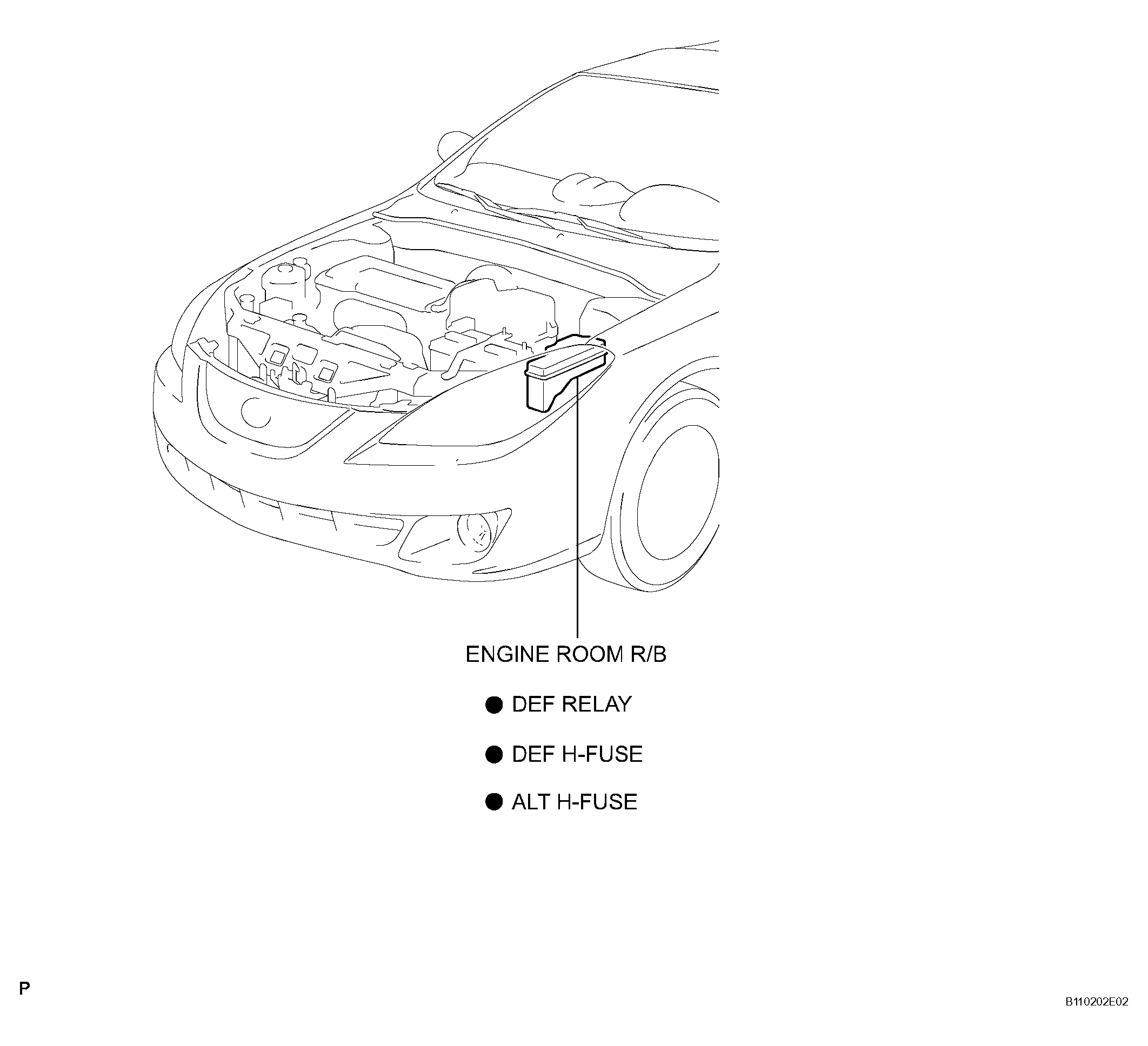

Fig 3: Identifying Window Defogger System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
