Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER - SPEAKER ASSEMBLY)
1. Disconnect the connectors shown in the illustration on the left from the stereo component amplifier assembly and speakers.
  1. Coupe model

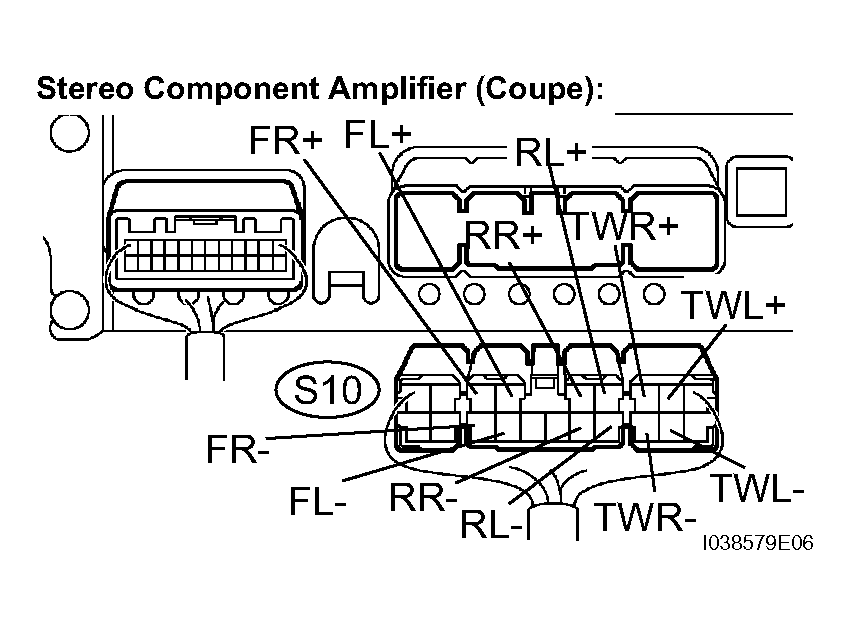

    Fig 1: Identifying Stereo Component Amplifier Assembly Connector Terminals (Coupe Model)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Convertible model

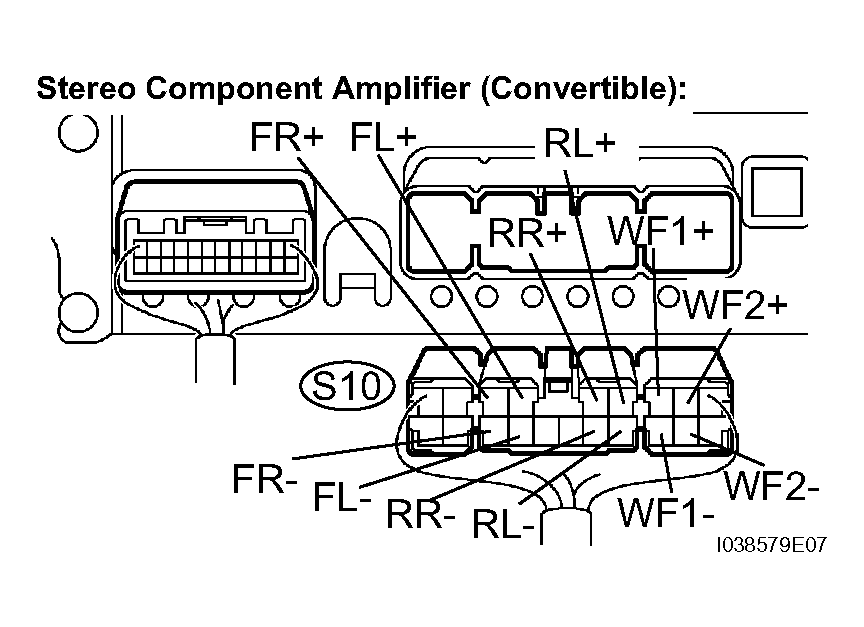

    Fig 2: Identifying Stereo Component Amplifier Assembly Connector Terminals (Convertible Model)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance between the speakers and the stereo component amplifier assembly to check for an open circuit in the wire harness.
  Standard resistance: Below 1 Ω
3. Measure the resistance between the speakers and body ground to check for a short circuit in the wire harness.
  Standard resistance: 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

CHECK VEHICLE TYPE

Choose type to be inspected.

VEHICLE TYPE REFERENCE

Type	Proceed to
Convertible	A
Coupe	B

B: Go to step 4

A: GO TO NEXT STEP

INSPECT WOOFER BOX SPEAKER ASSEMBLY NO.1

Resistance check.

Measure the resistance according to the value(s) in the table below.

Standard resistance

WOOFER BOX SPEAKER ASSEMBLY NO.1 RESISTANCE SPECIFIED CONDITION

Tester connection	Condition	Specified condition
1 - 3	Always	0.81 to 1.61Ω
2 - 4	Always	0.81 to 1.61Ω

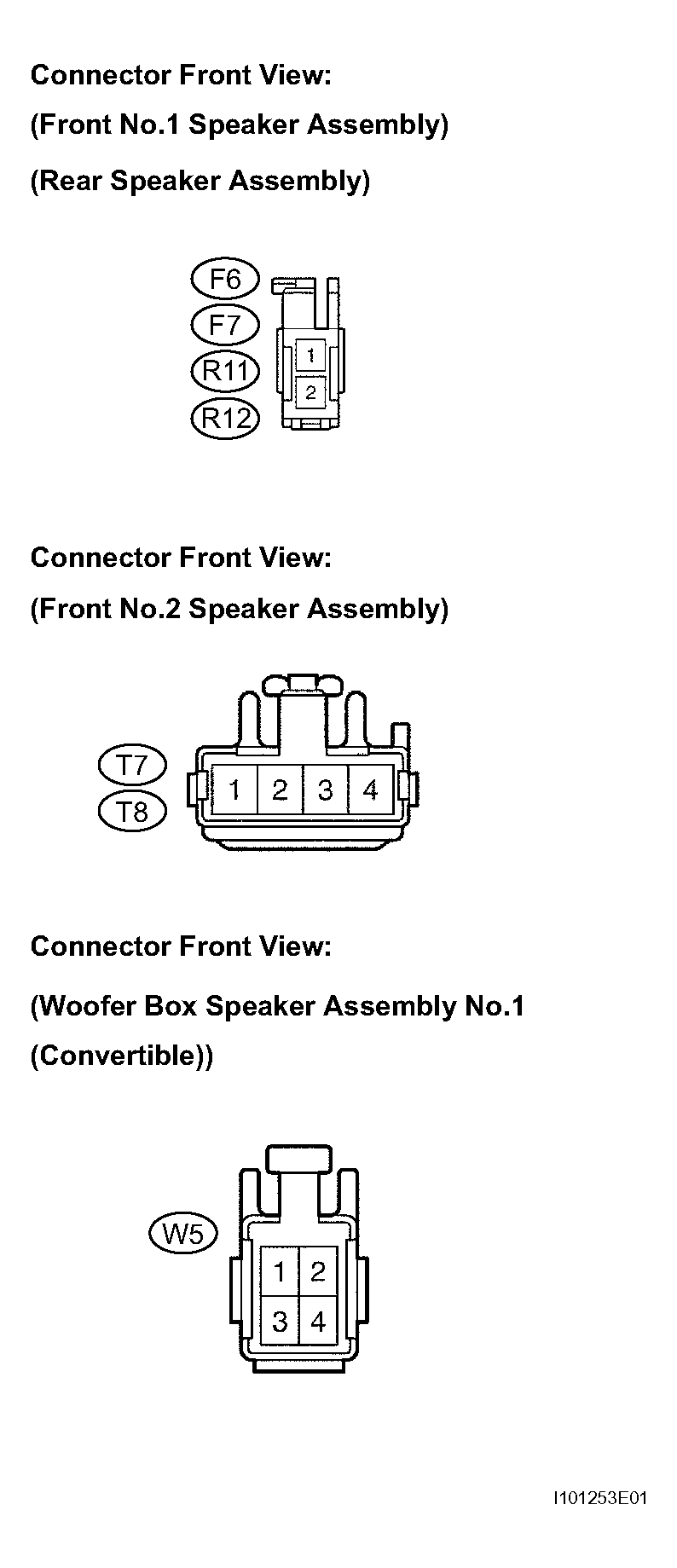

Fig 4: Identifying Woofer Box Speaker Assembly No.1 Connector Terminals

NOTE: The speaker should not be removed for checking.

NG: REPLACE WOOFER BOX SPEAKER ASSEMBLY NO.1

OK: GO TO NEXT STEP

INSPECT FRONT NO.1 SPEAKER ASSEMBLY
1. Resistance check.
  1. Measure the resistance between the terminals of the speaker.
    NOTE: The speaker should not be removed for checking.

    Standard resistance:

    Coupe: 3 to 4 Ω

    Convertible: 3.5 to 4.5 Ω
NG: REPLACE FRONT NO.1 SPEAKER ASSEMBLY

OK: GO TO NEXT STEP
INSPECT FRONT NO.2 SPEAKER ASSEMBLY
1. Check that malfunction disappears when another speaker in good condition is installed.
  OK: Malfunction disappears.

  HINT:
  - Connect all the connectors to the speakers.
  - When there is a possibility that either right or left front speaker is defective, inspect by interchanging the right one and the left one.
OK: REPLACE FRONT NO.2 SPEAKER ASSEMBLY

NG: GO TO NEXT STEP
INSPECT REAR SPEAKER ASSEMBLY
1. Resistance check.
  1. Measure the resistance between the terminals of the speaker.
    NOTE: The speaker should not be removed for checking.

    Standard resistance:

    Coupe: 1.75 to 2.75 Ω

    Convertible: Approximately 2.4 Ω
NG: REPLACE REAR SPEAKER ASSEMBLY

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
