Knock Sensor: Installation

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL KNOCK SENSOR
1. Install the sensor with the nut.
  Torque: 20 N*m (199 kgf*cm, 14 ft.*lbf)

  HINT:

  Angling the knock sensor below the horizontal (below 0°) is recommended.
2. Connect the sensor connector.

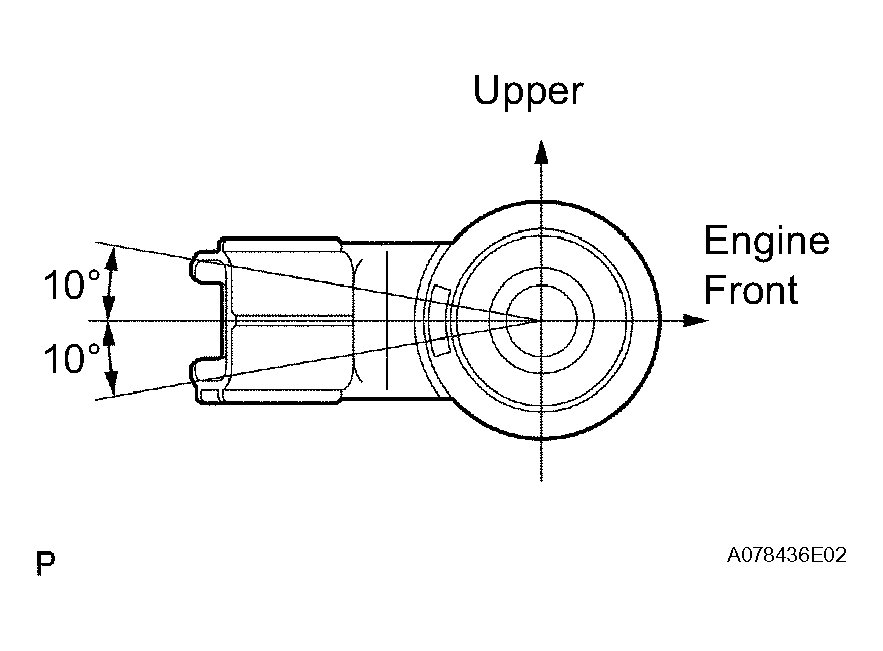

  Fig 1: Angling Knock Sensor Below Horizontal (Below 0°)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Install a new gasket and the intake manifold with the 5 bolts and 2 nuts.
  Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

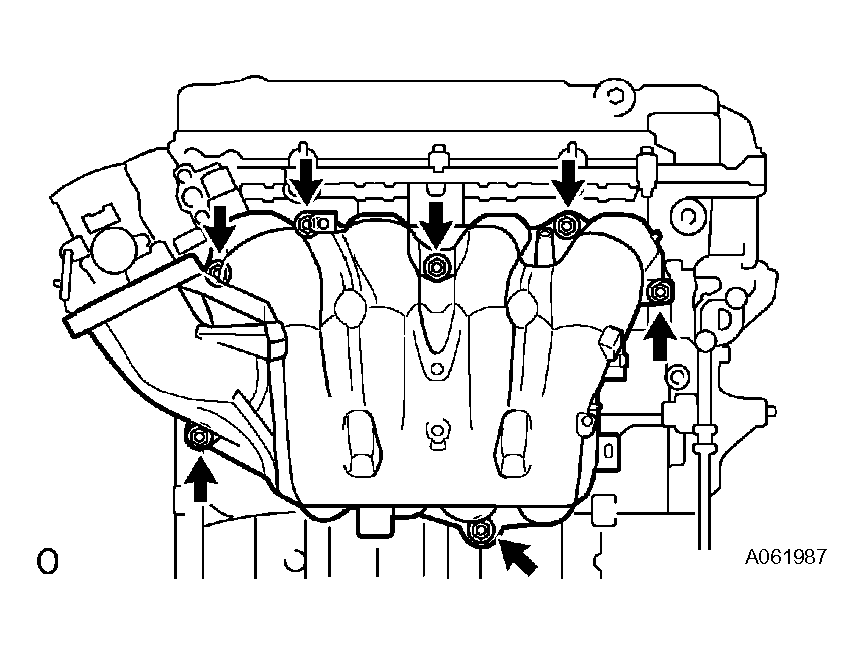

  Fig 2: Installing Intake Manifold Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL THROTTLE BODY ASSEMBLY
HINT:

See INSTALLATION .
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
CHECK CONNECTION OF VACUUM HOSE
ADD ENGINE COOLANT
HINT:

See COOLANT .
CHECK FOR ENGINE COOLANT LEAKS
HINT:

See COOLING SYSTEM .
