Section 4 (Engine Control System (2AZ-FE)): ECM: Installation

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ECM BRACKET NO.2
1. Install the ECM bracket with the 2 screws.

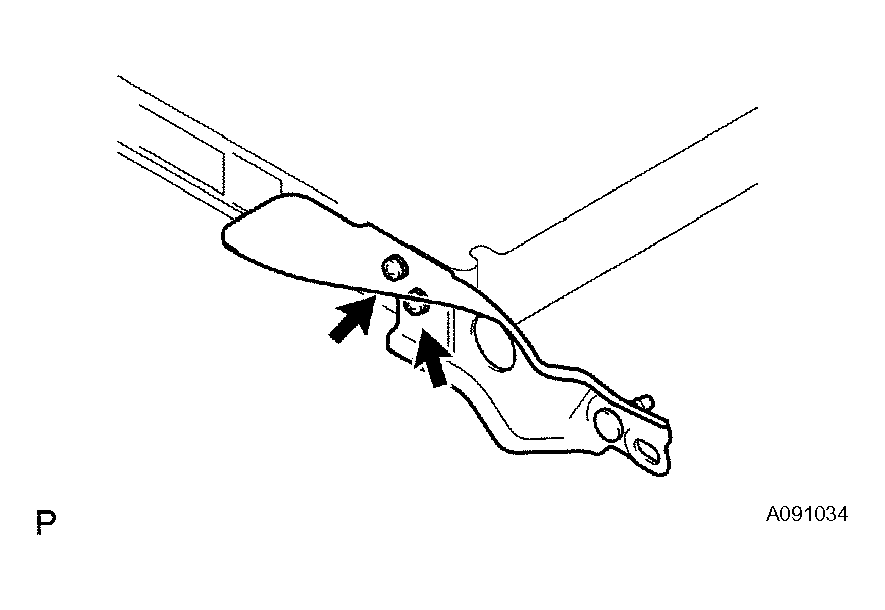

  Fig 1: Installing ECM Bracket No.2 With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ECM BRACKET
1. Install the ECM bracket with the 2 screws.

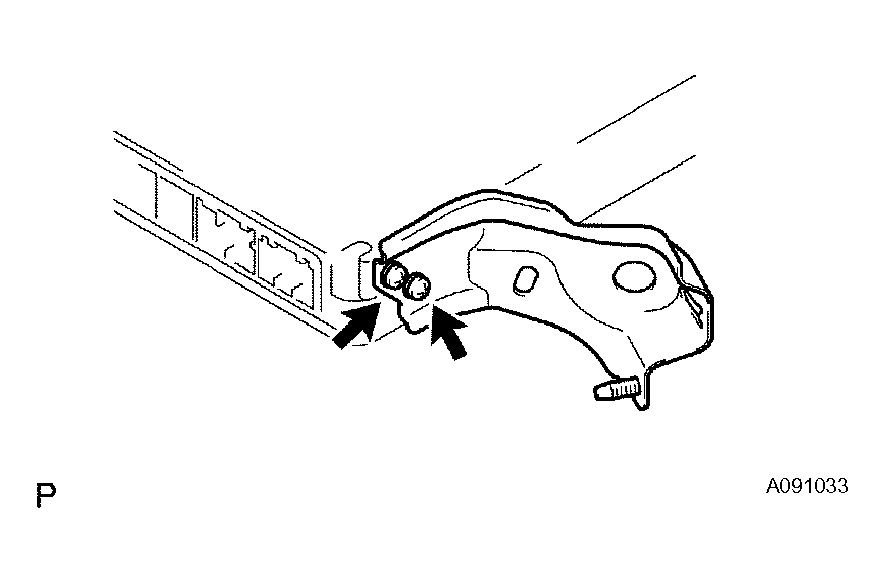

  Fig 2: Installing ECM Bracket No.1 With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ECM
1. Install the 2 wire harness clamps.
2. Connect the 5 ECM connectors.

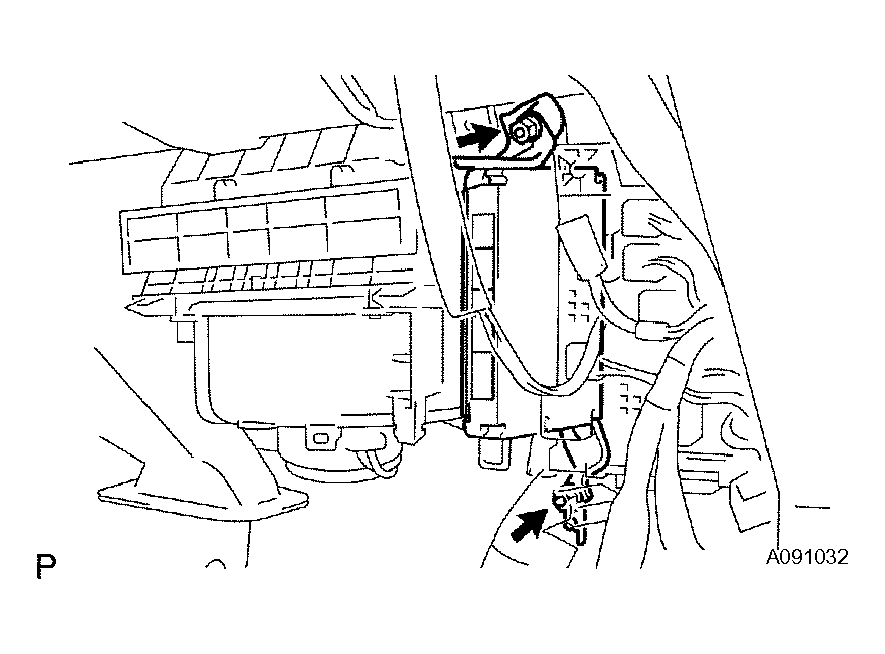

3. Install the ECM with the 2 nuts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
INSTALL INSTRUMENT PANEL FINISH LOWER PANEL RH
HINT:

See INSTALLATION .
INSTALL INSTRUMENT PANEL NO.1 UNDER COVER SUB-ASSEMBLY
HINT:

See INSTALLATION .
INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:

See INSTALLATION .
INSTALL FRONT DOOR SCUFF PLATE RH
HINT:

See INSTALLATION .
CONNECT BATTERY NEGATIVE TERMINAL
SYSTEM INITIALIZE
HINT:

See INITIALIZATION .
