Trailer Towing: Notes

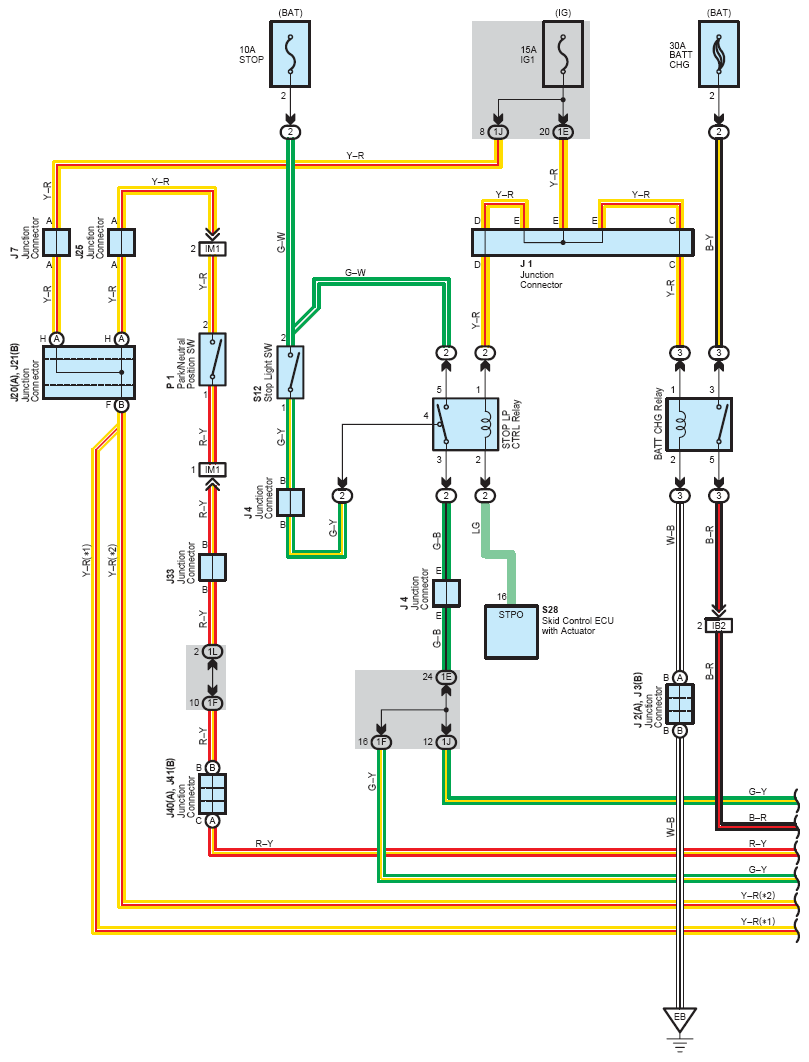

Fig 1: Trailer Towing Wiring Diagram (1 Of 3)
G08778372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

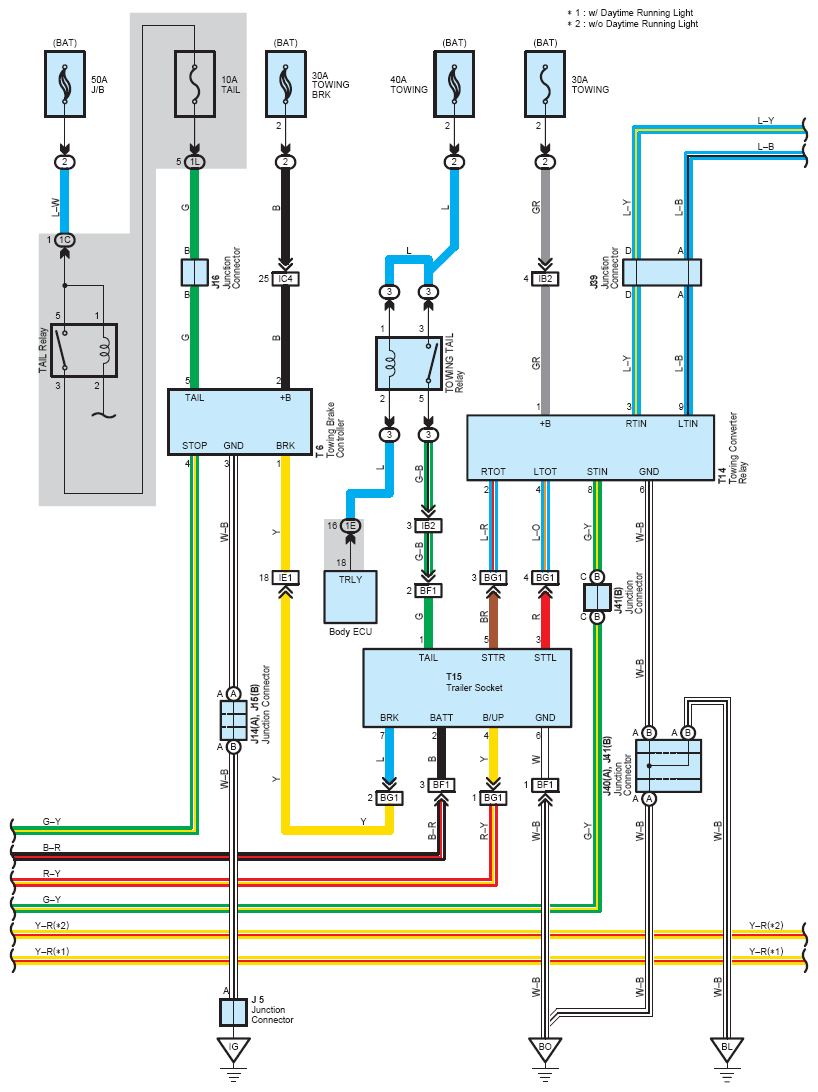

Fig 2: Trailer Towing Wiring Diagram (2 Of 3)
G08778373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

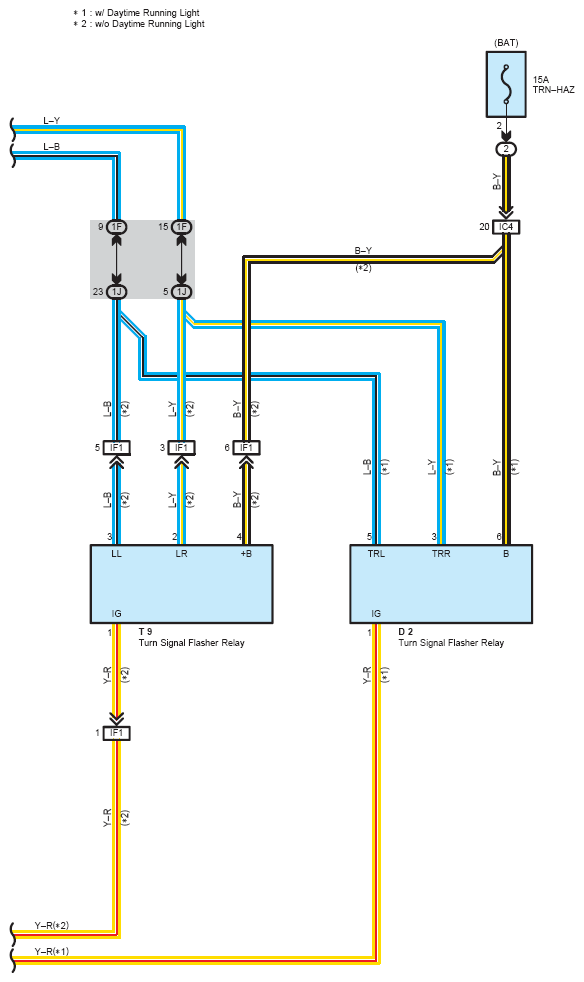

Fig 3: Trailer Towing Wiring Diagram (3 Of 3)
G08778374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
