Theft Deterrent: Notes — 2006 Toyota 4Runner Limited, 4.7 T, AWD Service Manual ~ LEMON Manuals

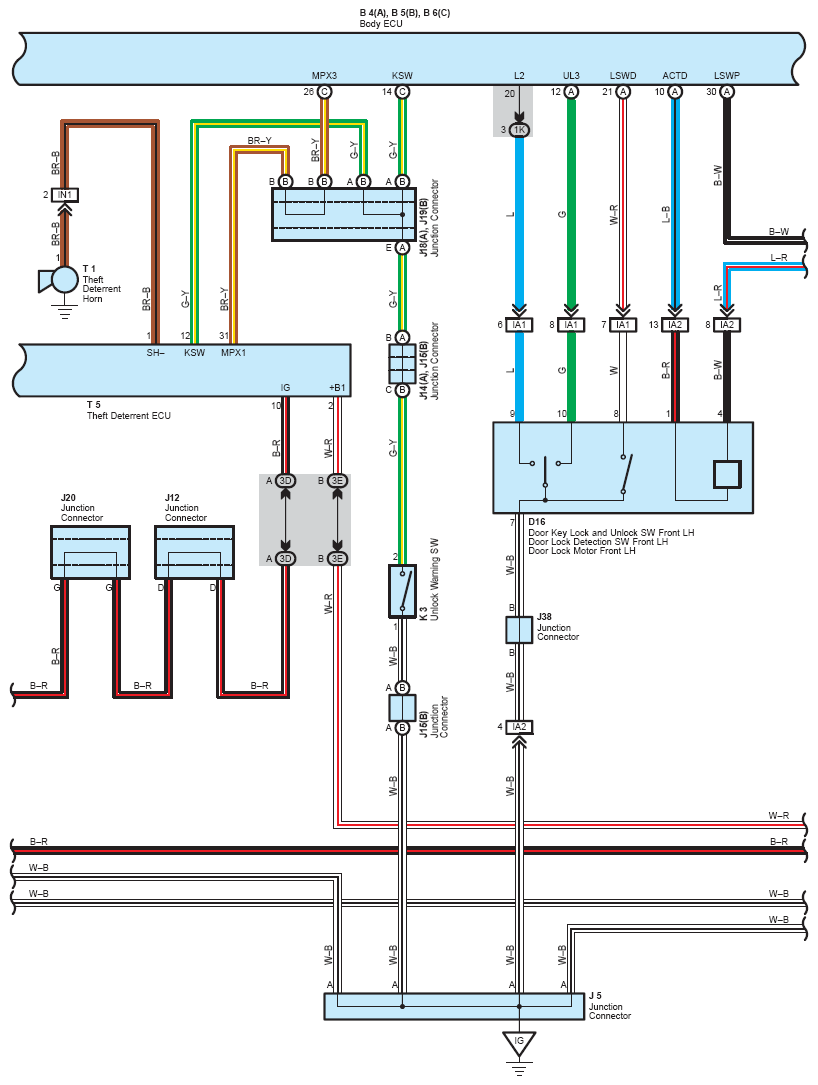

Fig 1: Theft Deterrent Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

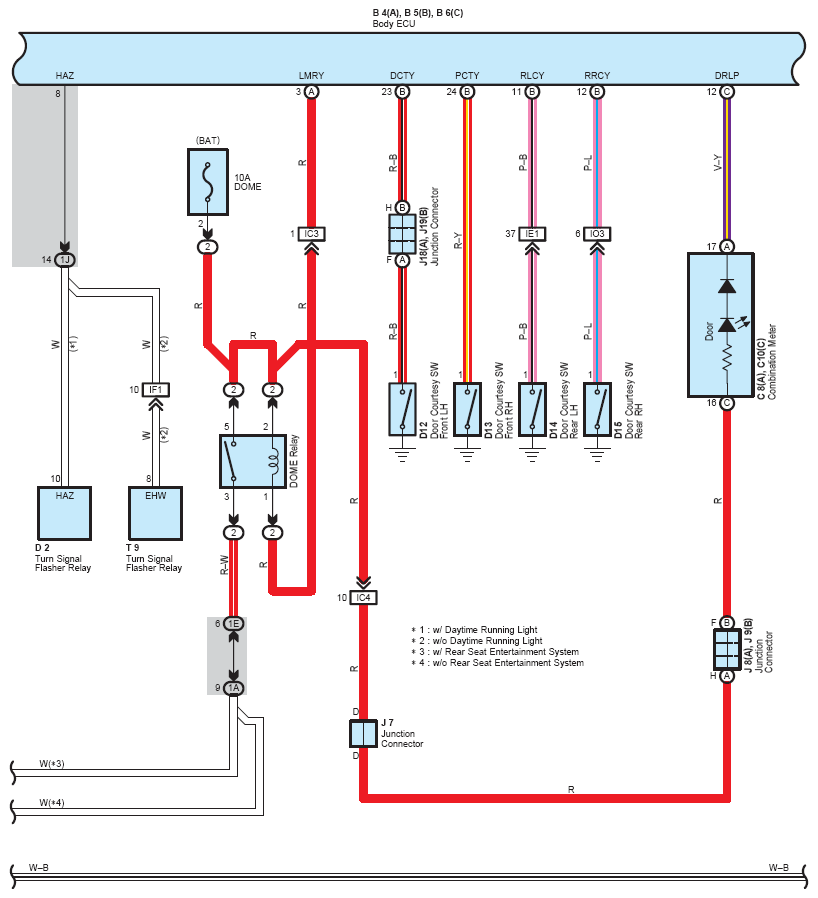

Fig 2: Theft Deterrent Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

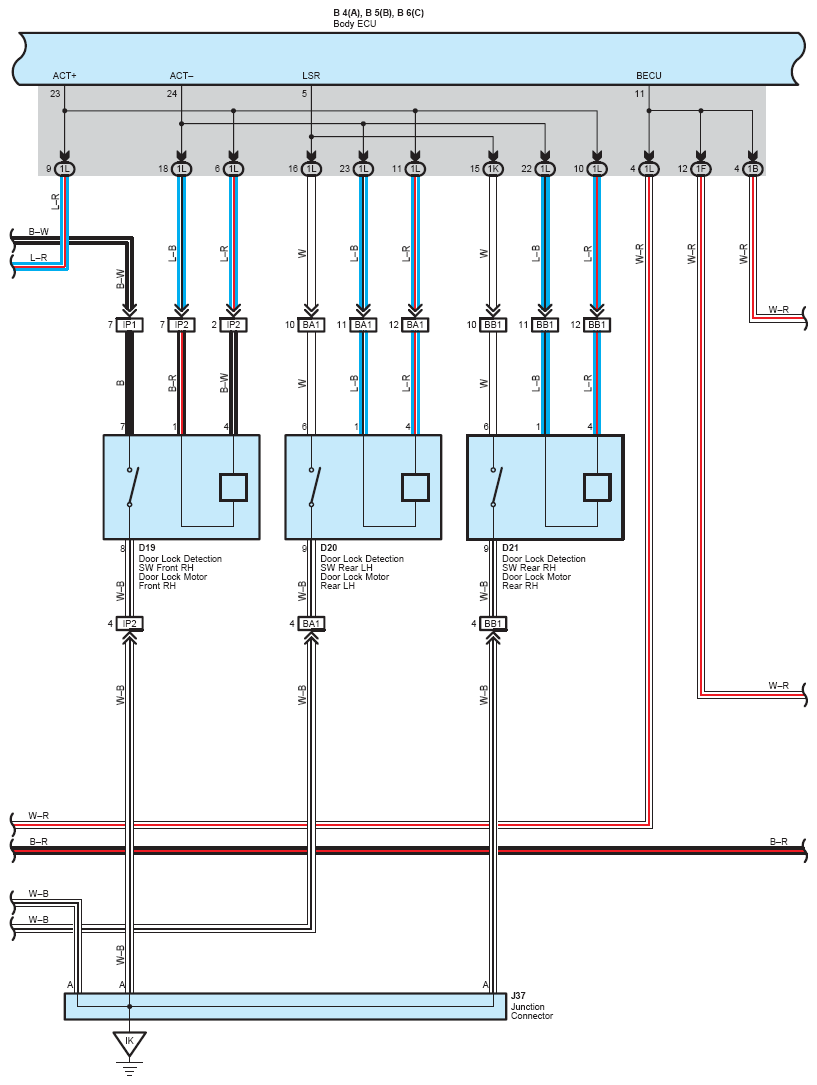

Fig 3: Theft Deterrent Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

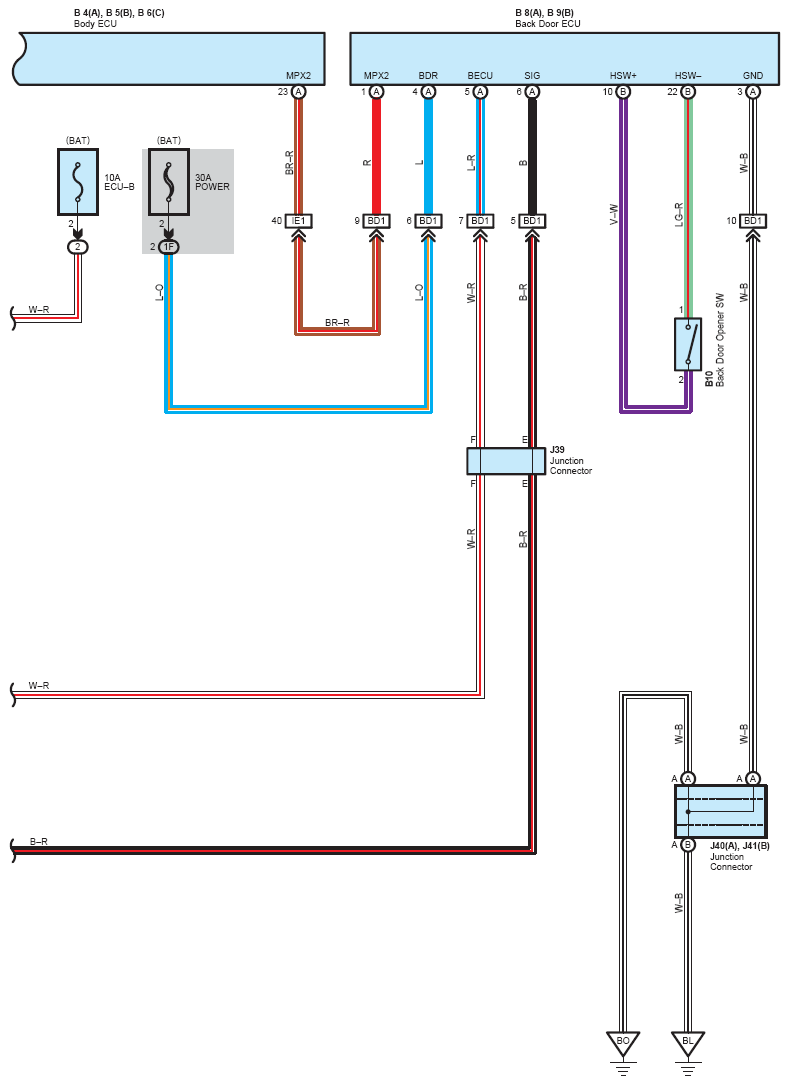

Fig 4: Theft Deterrent Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

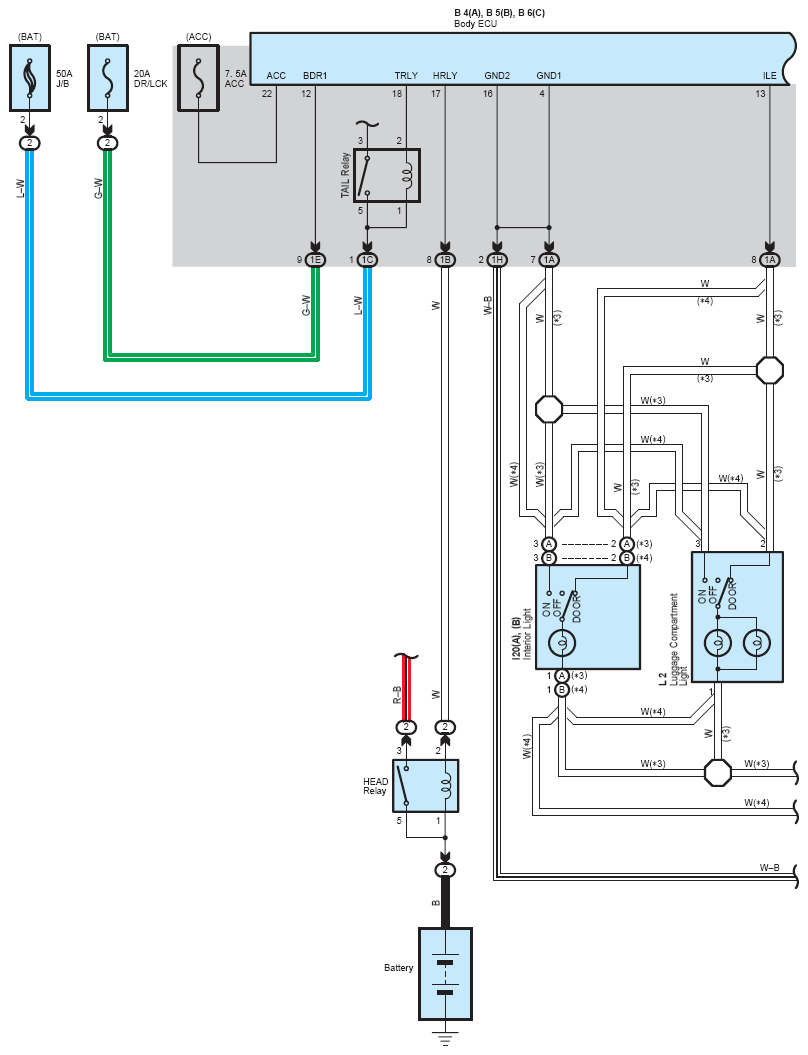

Fig 5: Theft Deterrent Wiring Diagram (5 Of 6)

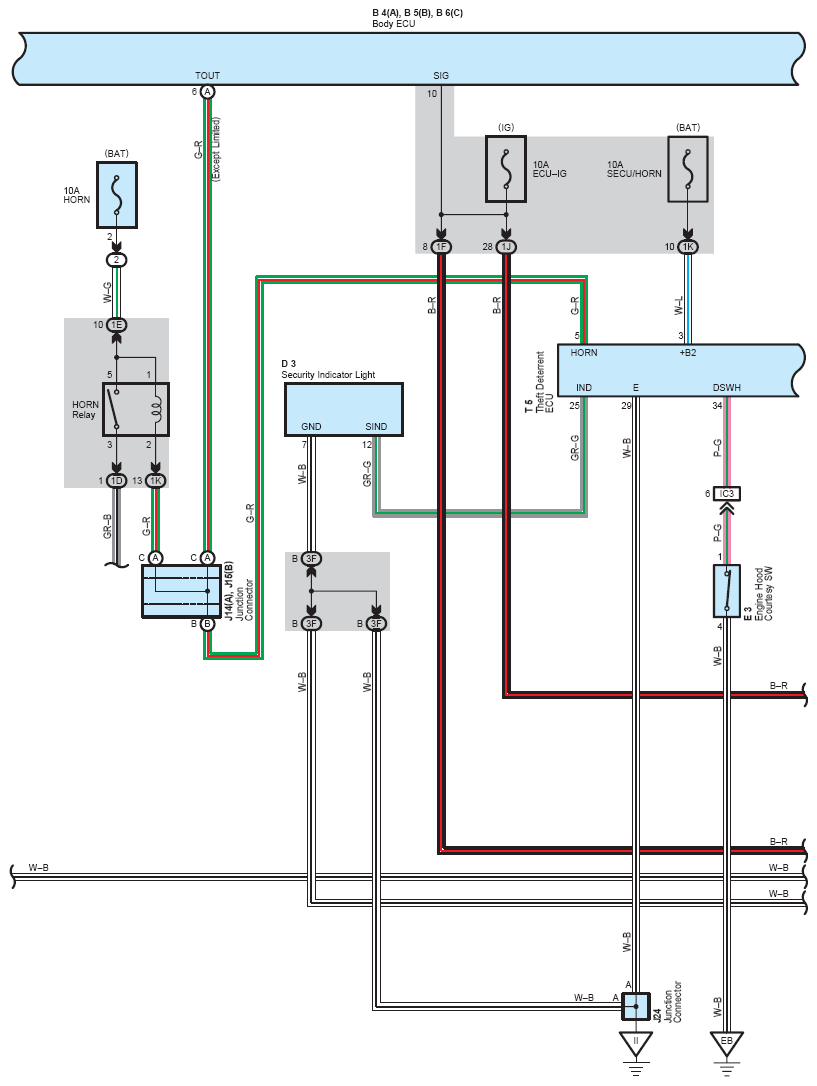

Fig 6: Theft Deterrent Wiring Diagram (6 Of 6)
