Multi Mode 4WD: Notes

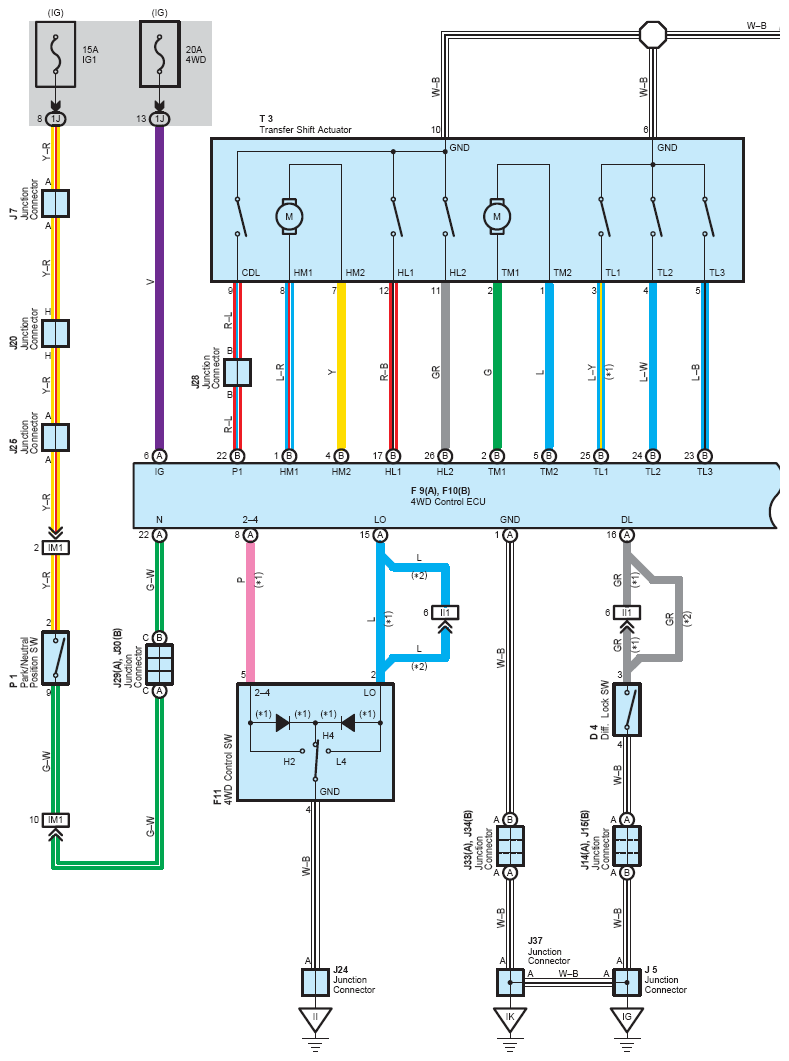

Fig 1: Multi Mode 4WD Wiring Diagram (1 Of 4)
G08778346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

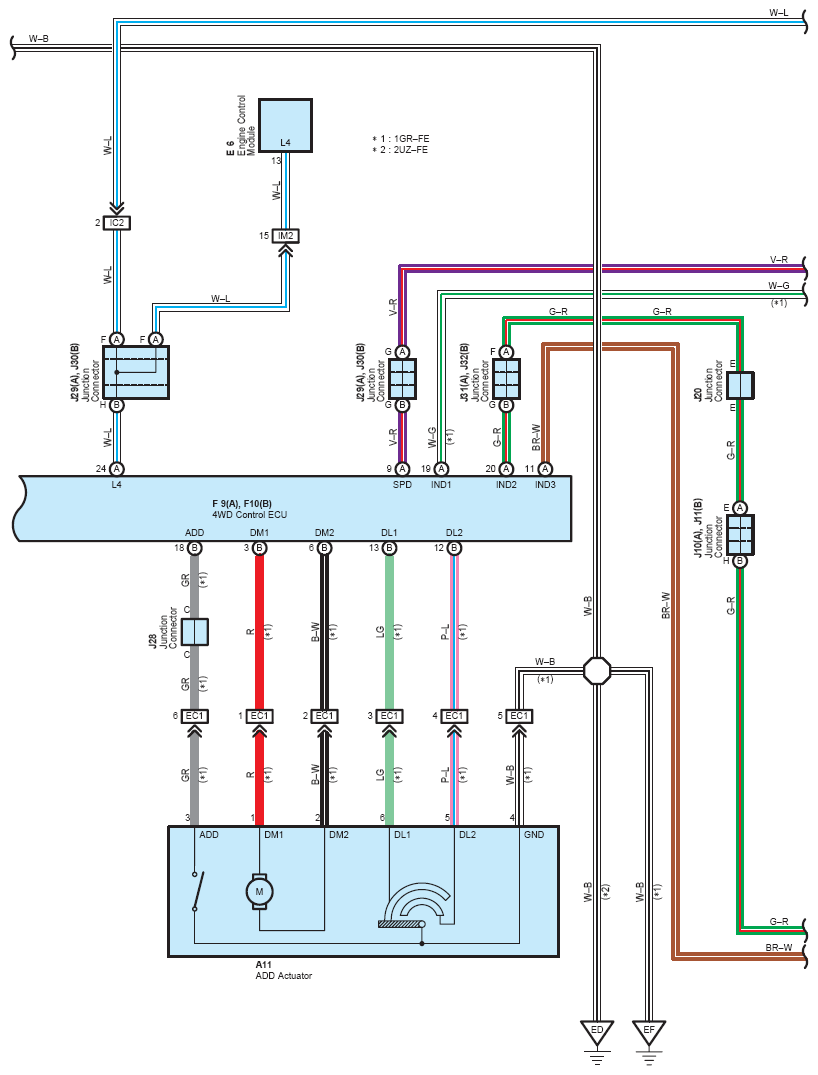

Fig 2: Multi Mode 4WD Wiring Diagram (2 Of 4)
G08778347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

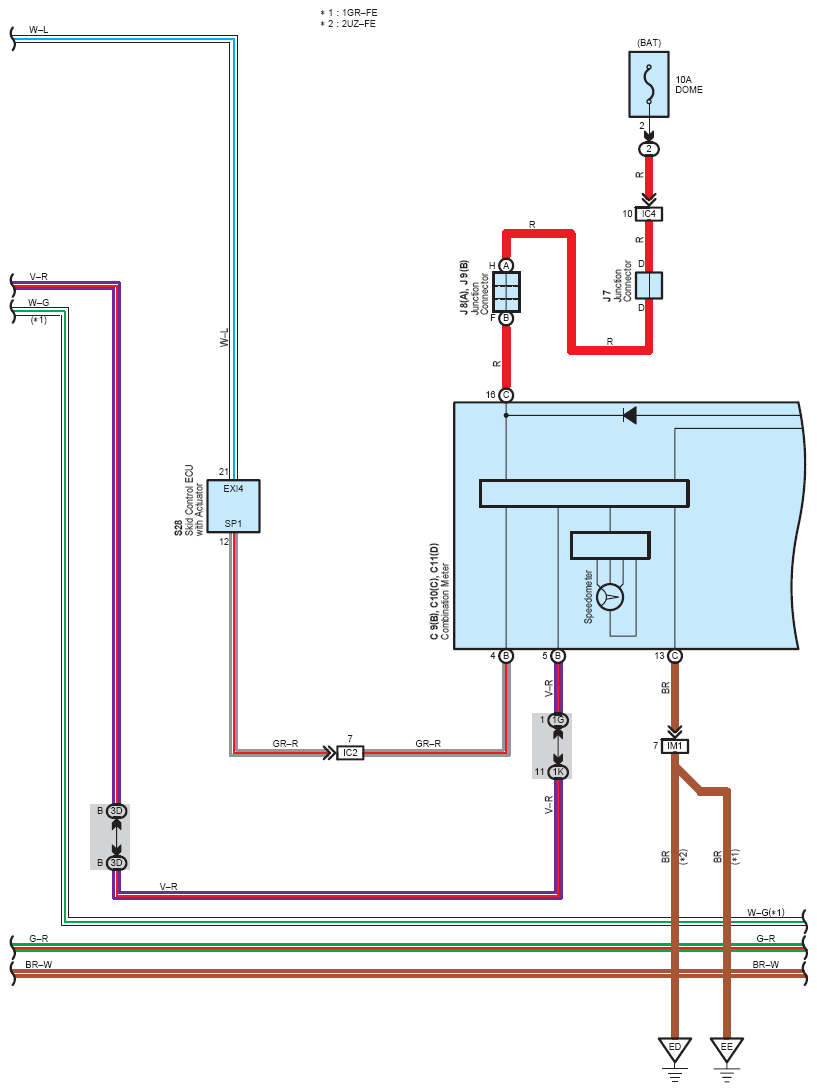

Fig 3: Multi Mode 4WD Wiring Diagram (3 Of 4)
G08778348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

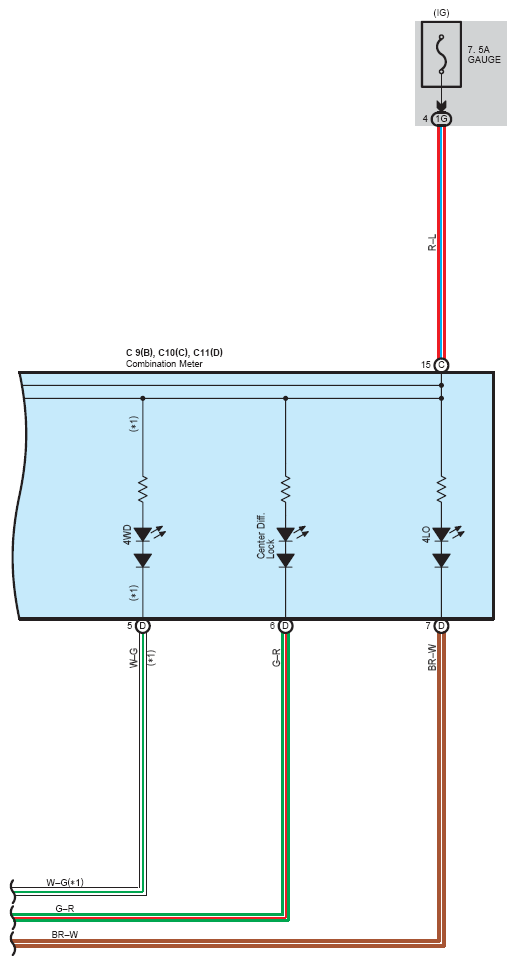

Fig 4: Multi Mode 4WD Wiring Diagram (4 Of 4)
G08778349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
