Cruise Control for 2UZ-FE: Notes

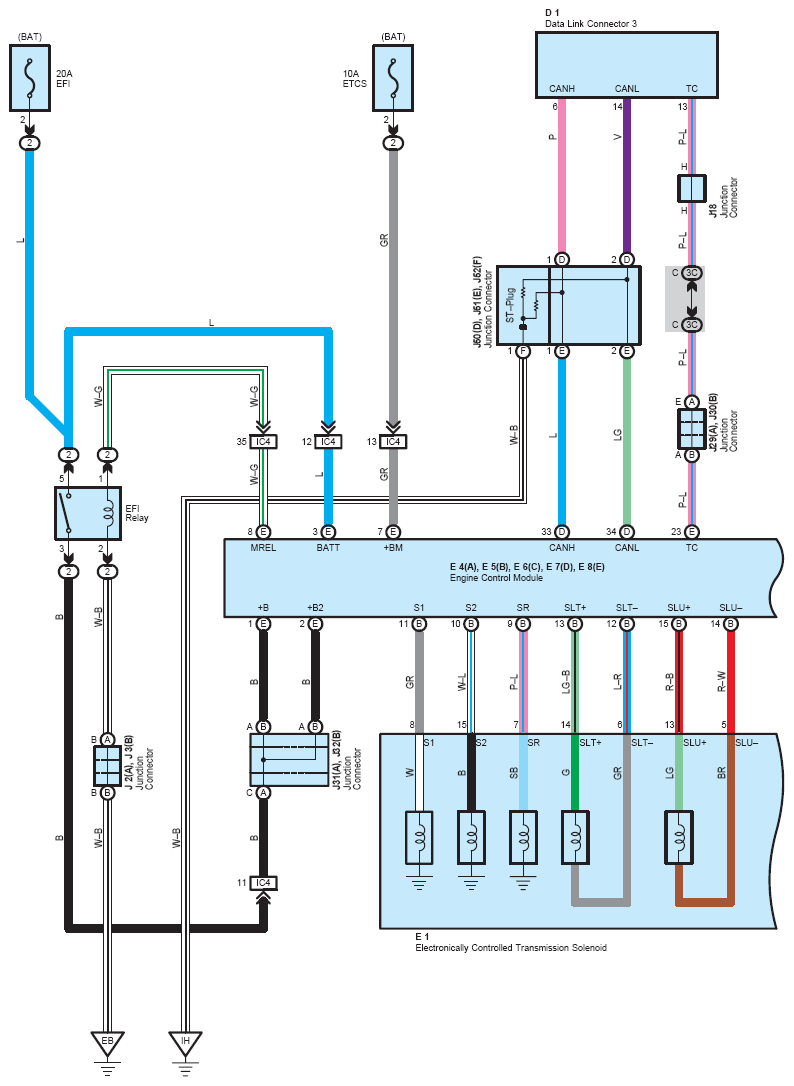

Fig 1: Cruise Control For 2UZ-FE Wiring Diagram (1 Of 4)
G08778328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

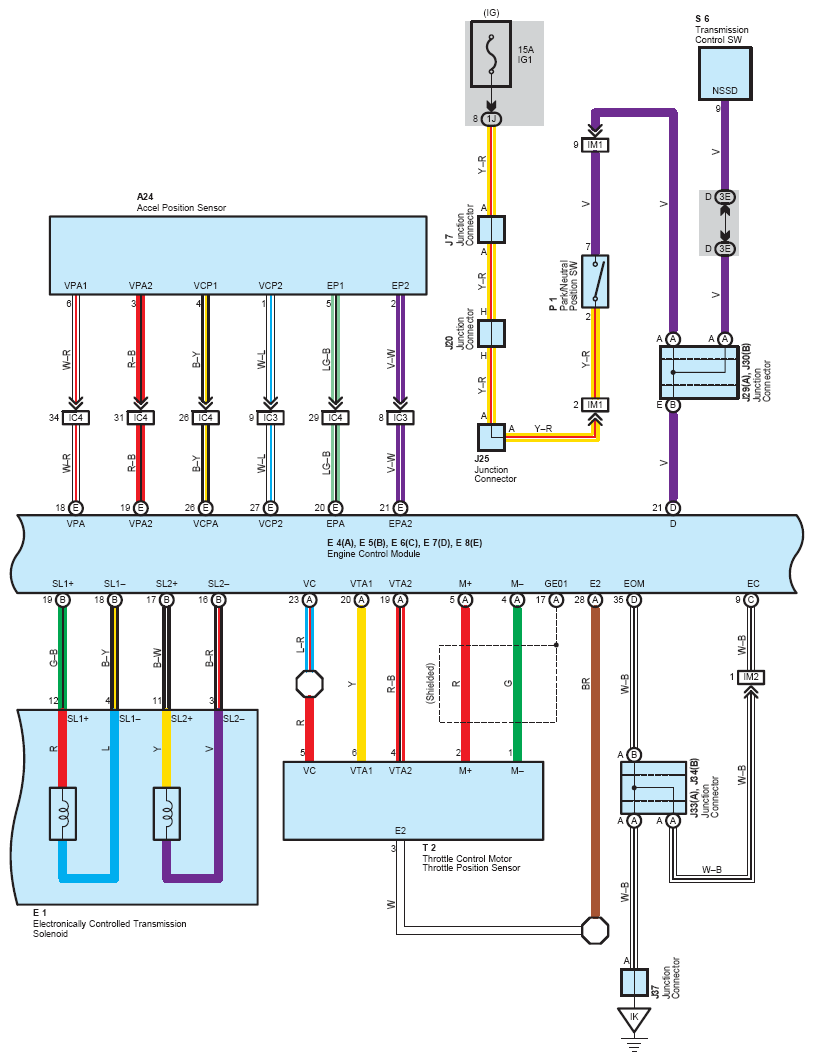

Fig 2: Cruise Control For 2UZ-FE Wiring Diagram (2 Of 4)
G08778329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

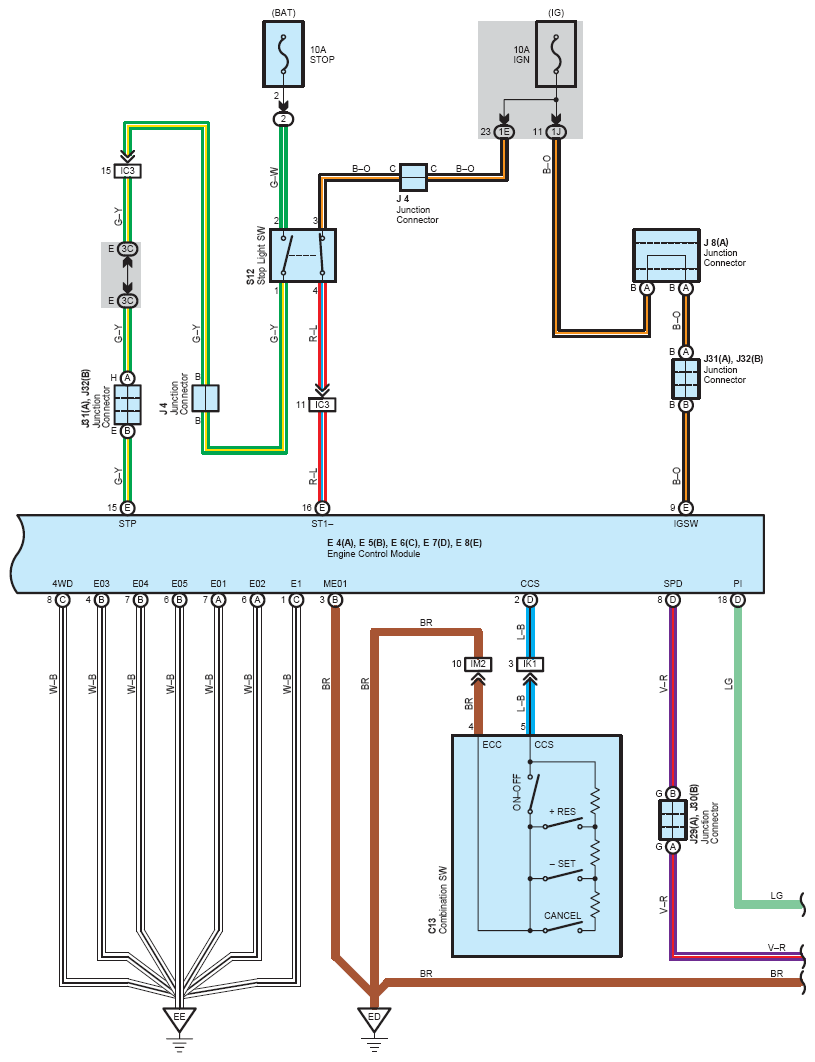

Fig 3: Cruise Control For 2UZ-FE Wiring Diagram (3 Of 4)
G08778330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

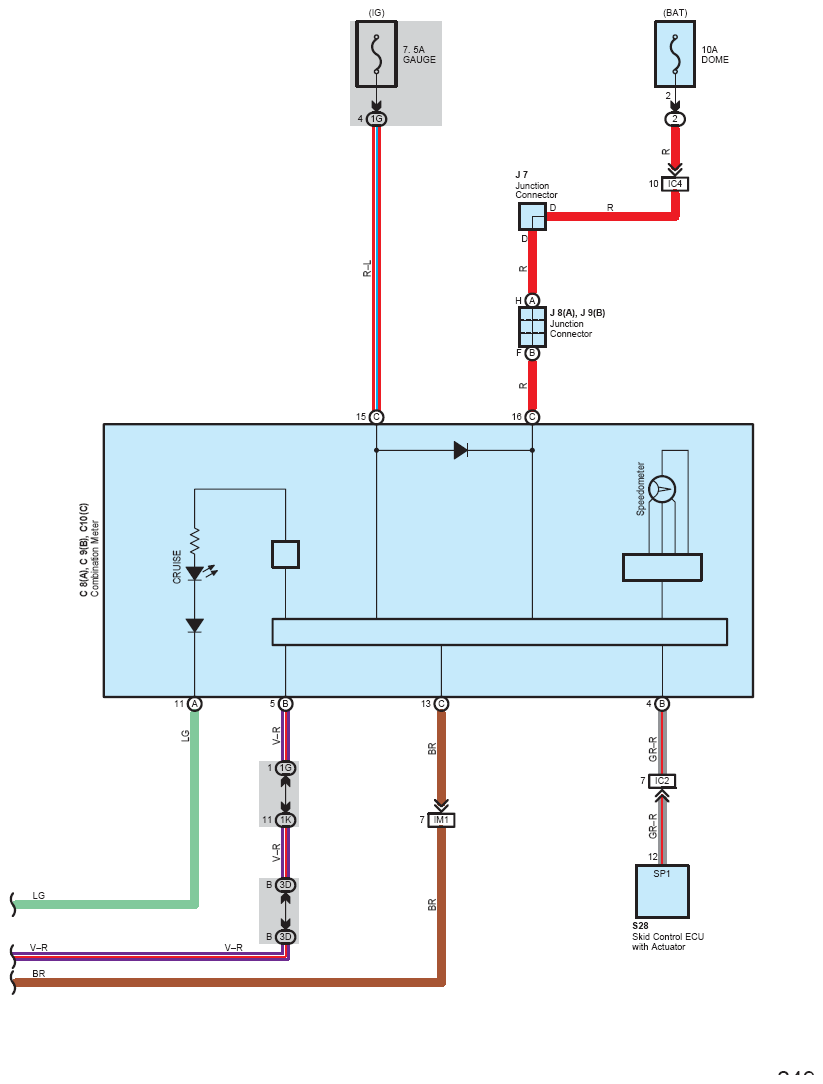

Fig 4: Cruise Control For 2UZ-FE Wiring Diagram (4 Of 4)
G08778331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
