Cruise Control for 1GR-FE: Notes

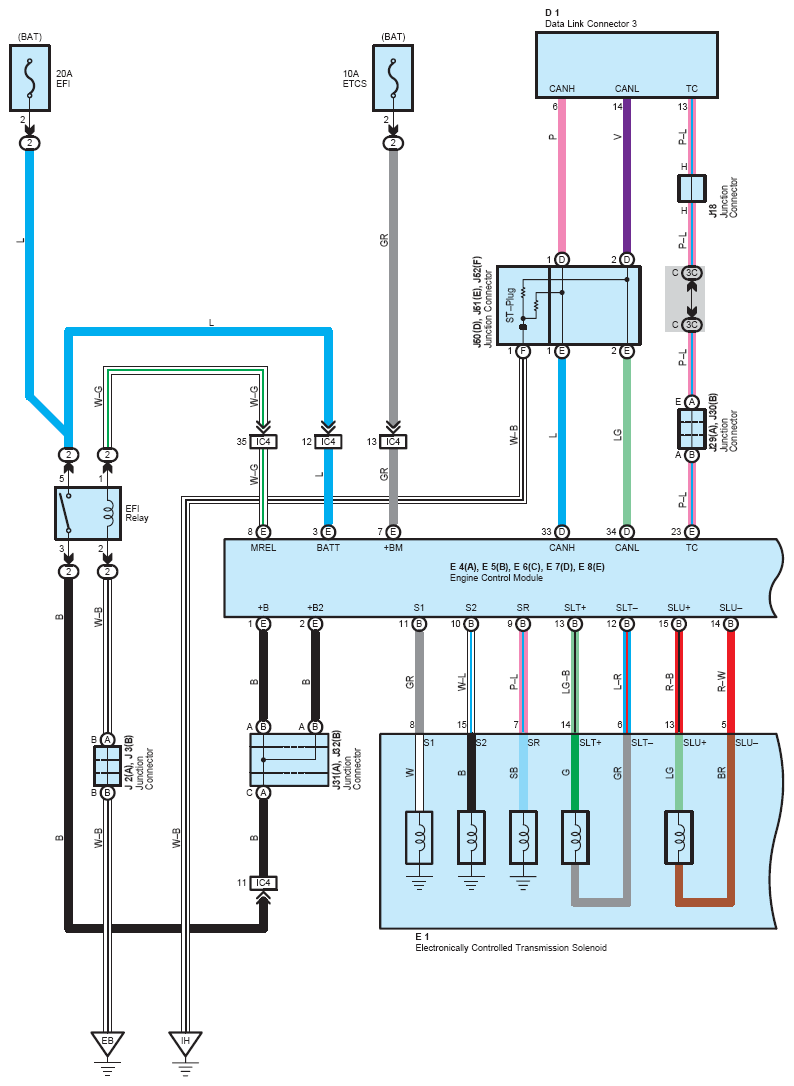

Fig 1: Cruise Control For 1GR-FE Wiring Diagram (1 Of 4)
G08778332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

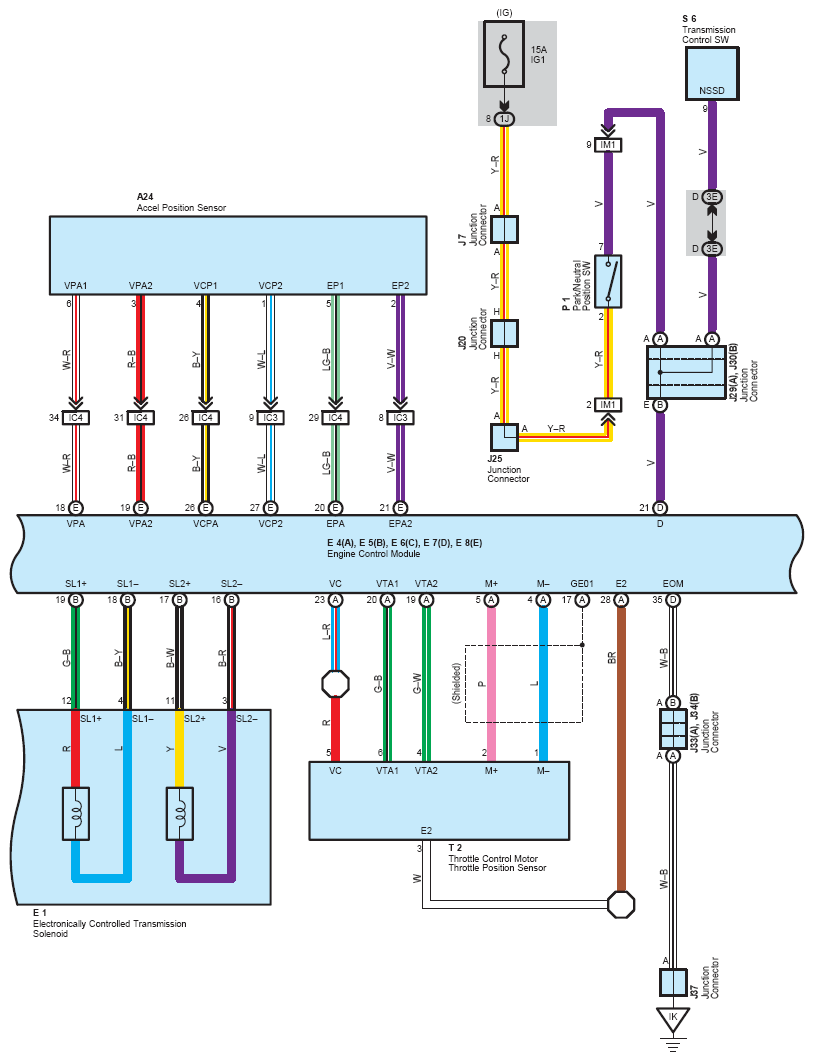

Fig 2: Cruise Control For 1GR-FE Wiring Diagram (2 Of 4)
G08778333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

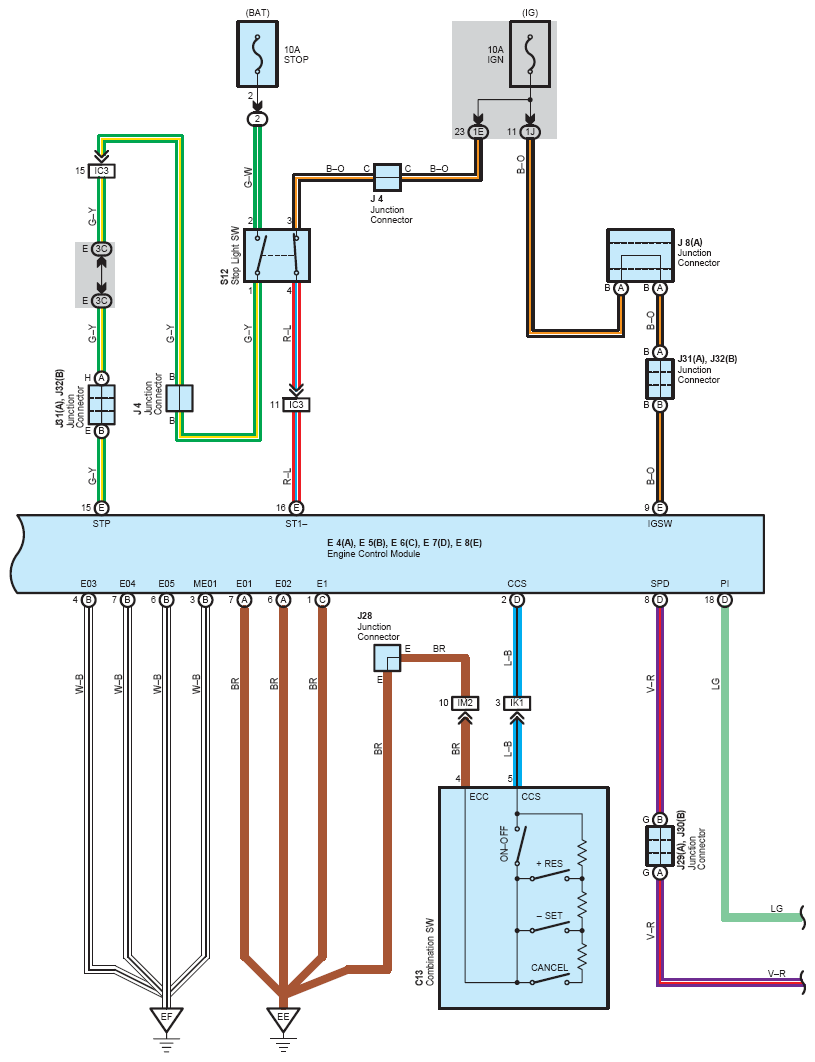

Fig 3: Cruise Control For 1GR-FE Wiring Diagram (3 Of 4)
G08778334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

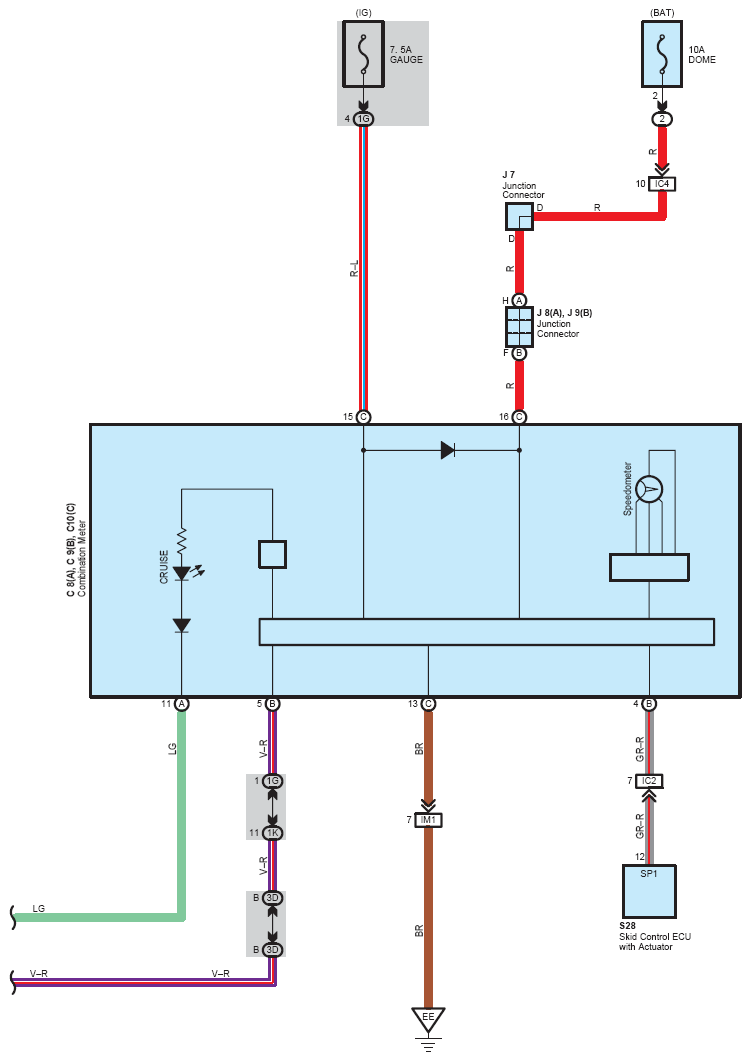

Fig 4: Cruise Control For 1GR-FE Wiring Diagram (4 Of 4)
G08778335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
