Inspection Procedure

HINT:

Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine condition when malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC P0420)
   1. Connect the hand-held tester or the OBD II scan tool to the DLC3.
   2. Turn the power switch ON (IG).
   3. Turn the hand-held tester or the OBD II scan tool ON.
   4. On the hand-held tester, select the item: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
   5. Read DTCs using the hand-held tester or the OBD II scan tool.

      Result:

      SCAN TOOL VALUES DESCRIPTION



      Display (DTC Output)	Proceed to
      P0420	A
      P0420 and other DTCs	B

   HINT:

   If any other codes besides P0420 are output, perform troubleshooting for those DTCs first.

   1. B: GO TO RELEVANT DTC CHART (See  DIAGNOSTIC TROUBLE CODE CHART   )
   2. A: GO TO NEXT STEP.
2. CHECK FOR EXHAUST GAS LEAKAGE

   OK: No gas leakage.

   1. NG: REPAIR OR REPLACE EXHAUST GAS LEAKAGE POINT
   2. OK: GO TO NEXT STEP.
3. INSPECT AIR FUEL RATIO SENSOR (BANK 1 SENSOR 1) (See  DTC P2195 OXYGEN (A/F) SENSOR SIGNAL STUCK LEAN (BANK 1 SENSOR 1), DTC P2196 OXYGEN (A/F) SENSOR SIGNAL STUCK RICH (BANK 1 SENSOR 1)   )
   1. NG: REPLACE AIR FUEL RATIO SENSOR
   2. OK: GO TO NEXT STEP.
4. INSPECT HEATED OXYGEN SENSOR (BANK 1 SENSOR 2) (See  DTC P0136 OXYGEN SENSOR CIRCUIT MALFUNCTION (BANK 1 SENSOR 2) DTC P0137 OXYGEN SENSOR CIRCUIT LOW VOLTAGE (BANK 1 SENSOR 2) DTC P0138 OXYGEN SENSOR CIRCUIT HIGH VOLTAGE (BANK 1 SENSOR 2   )

1. NG: REPLACE HEATED OXYGEN SENSOR
2. OK: GO TO NEXT STEP.

   REPLACE THREE-WAY CATALYTIC CONVERTER (REPLACE FRONT PIPE)

HINT:

Malfunctioning areas can be found by performing the ACTIVE TEST / A/F CONTROL operation. The A/F CONTROL operation can determine if the A/F sensor, heated oxygen sensor or other potential trouble area are malfunctioning or not.

1. Perform the ACTIVE TEST A/F CONTROL operation.

HINT:

The A/F CONTROL operation lowers the injection volume 12.5% or increases the injection volume 25 %.

1. (1)Connect the hand-held tester to the DLC3 on the vehicle.
2. (2)Turn the power switch ON (IG).
3. (3)Put the engine in inspection mode (See PRECAUTION  ).
4. (4)Warm up the engine by running the engine at 2,500 RPM with the accelerator pedal depressed more than 60% for approximately 90 seconds.
5. (5)Select the item: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / A/F CONTROL.
6. (6)Perform the A/F CONTROL operation with the engine in an idle condition (press the right or left button).

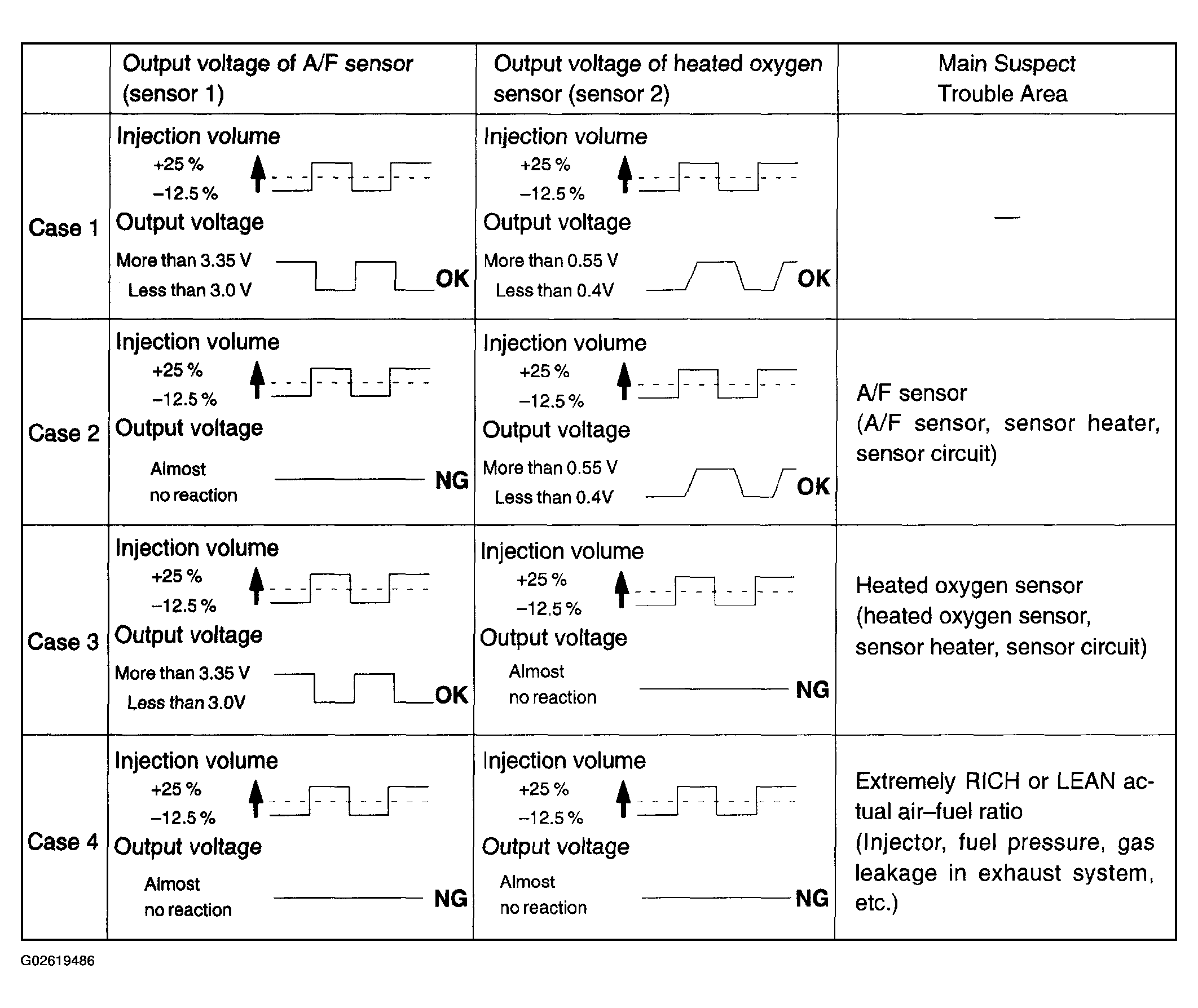

1. Result:
2. A/F sensor reacts in accordance with increase and decrease of injection volume:
3. +25% --> rich output: Less than 3.0 V
4. -12.5% --> lean output: More than 3.35 V
5. Heated oxygen sensor reacts in accordance with increase and decrease of injection volume:
6. +25% --> rich output: More than 0.55 V
7. -12.5% --> lean output: Less than 0.4 V

The following A/F CONTROL procedure enables the technician to check and graph the voltage output of both A/F sensor and the heated oxygen sensor.

To display the graph, enter ACTIVE TEST/ A/F CONTROL/USER DATA, select "AFS B1S1 and O2S B1S2" by pressing the "YES" button followed by the "ENTER" button and then the "F4" button.
